ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду приложение F, а не E.

ИС МЕГАНОРМ: примечание. Взамен ГОСТ Р ИСО 10303-11-2000 Приказом Росстандарта от 14.09.2009 N 366-ст с 01.07.2010 введен в действие ГОСТ Р ИСО 10303-11-2009.

ИС МЕГАНОРМ: примечание. Взамен ГОСТ Р ИСО 10303-43-2002 Приказом Росстандарта от 30.11.2016 N 1888-ст с 01.01.2018 введен в действие ГОСТ Р ИСО 10303-43-2016.

ИС МЕГАНОРМ: примечание. Взамен ГОСТ Р ИСО 10303-43-2002 Приказом Росстандарта от 30.11.2016 N 1888-ст с 01.01.2018 введен в действие ГОСТ Р ИСО 10303-43-2016.

ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду Приложение H, а не G.

ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду Приложение G, а не F.

ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду п. 4.2.41, а не 4.2.40.

ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду п. 4.2.33, а не 4.2.32.

a)	[ ]	: с целью выполнения информационных требований нужны разнородные элементы ПИМ или секции ссылочных путей;
b)	( )	: с целью выполнения информационных требований разнородные элементы ПИМ или секции ссылочных путей обозначены как альтернативные в пределах данного преобразования;
c)	{ }	: с целью выполнения информационных требований заключенная в фигурные скобки секция ограничивает ссылочный путь;
d)	->	: атрибут ссылается на объект или выбранный тип данных, указанный в следующей строке;
e)	<-	: ссылка на объект или выбранный тип данных приведена в следующей строке;
f)	[i]	: атрибут представлен агрегированным типом, единственный член которого указан в следующей строке;
g)	[n]	: атрибут представлен агрегированным типом, член n которого указан в следующей строке;
h)	=>	: объект является супертипом объекта, указанного в следующей строке;
i)	<=	: объект является подтипом объекта, указанного в следующей строке;
j)	=	: для ограничения выбора или значения используют данные следующих типов: строкового (string), выбранного (select) или перечисления (enumeration).

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
ADVANCED_B_REP	advanced_brep_shape_representation	203	73	advanced_brep_representation < = shape_representation

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
APPROVAL	cc_design_approval	203	1, 2, 3	cc_design_approval < = approval_assignment
date	date and time	41	1, 21	cc_design_approval <= approval_assignment approval_assignment.assigned_approval-> approval <- approval_date_time.dated_approval approval_date_time approval_date_time.date_time-> date_time_select=date_and_time date_and_time
purpose	approval.level	41		cc_design_approval <= approval_assignment approval_assignment.assigned_approval-> approval approval.level
status	approval_status	41	49, 18	cc_design_approval <= approval_assignment approval_assignment.assigned_approval-> approval approval.status-> approval_status
approval для person_organization	PATH		2	cc_design_approval <= approval_assignment approval_assignment.assigned_approval-> approval <- approval_person_organization.authorized_approval approval_person_organization approval_person_organization.person_organization-> person_organization_select=person_and_organization person_and_organization <- person_and_organization_assignment.assigned_person_and_organization person_and_organization_assignment = > cc_design_person_and_organization_assignment

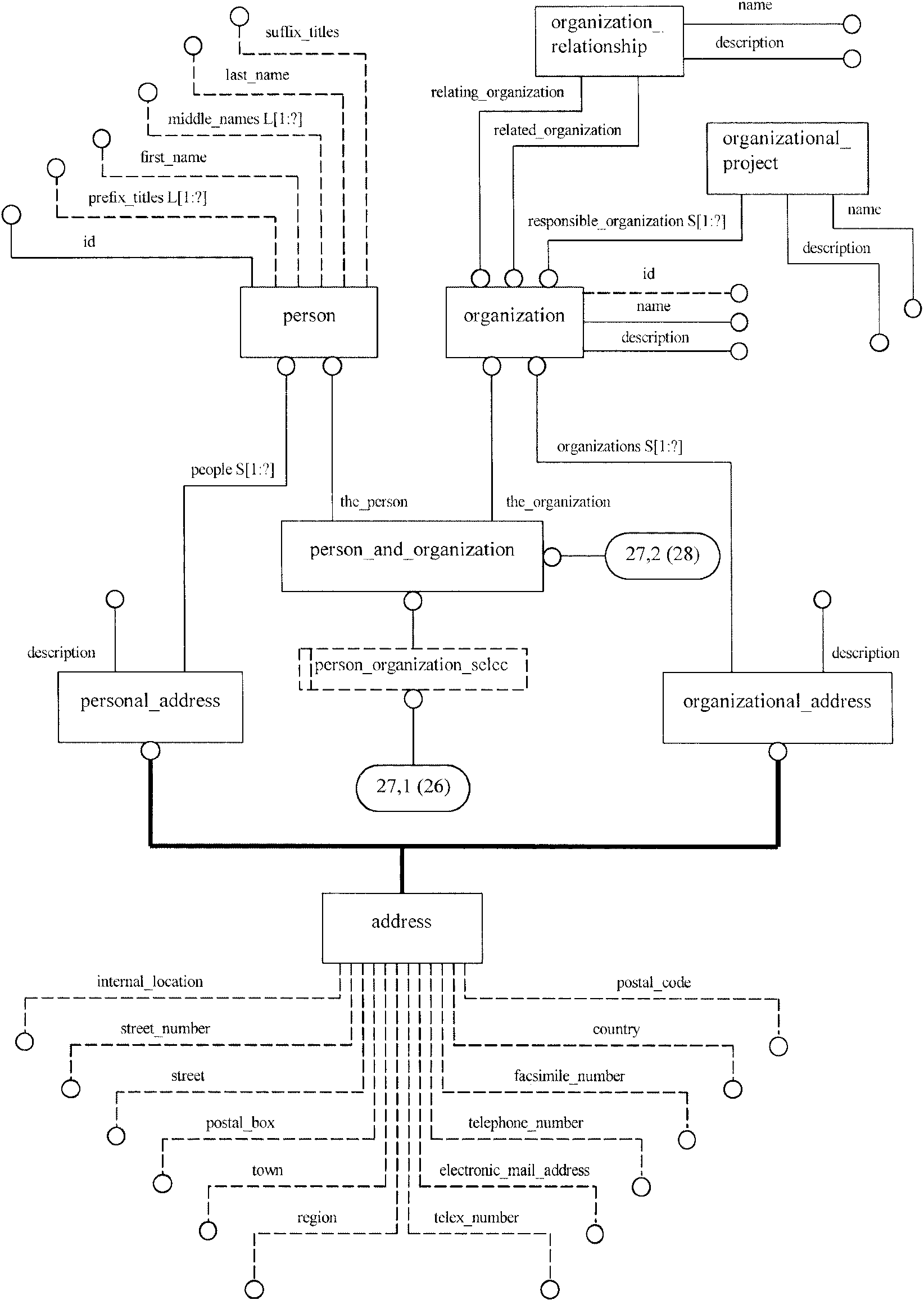

PERSON_ORGANIZATION	cc_design_person_and_organization_assignment	203	54, 26	cc_design_person_and_organization_assignment <= person_and_organization_assignment
person_organization_id	(person.id)	41		cc_design_person_and_organization_assignment <= person_and_organization_assignment person_and_organization_assignment.assigned_person_and_organization-> person_and_organization (person_and_organization.the_person-> person person.id) (person_and_organization.the_organization-> organization organization.id)
	(organization.id)	41
address	address	41		cc_design_person_and_organization_assignment <= person_and_organization_assignment person_and_organization_assignment.assigned_person_and_organization -> person_and_organization (person_and_organization.the_person-> person < - person_address.people[i] personal_address < = address) (person_and_organization.the_organization-> organization < - organizational_address.organizations[i] organizational_address <= address)
organization	organization	41		cc_design_person_and_organization_assignment < = person_and_organization_assignment person_and_organization_assignment.assigned_person_and_organization-> person_and_organization person_and_organization.the_organization-> organization
person	person	41		cc_design_person_and_organization_assignment < = person_and_organization_assignment person_and_organization_assignment.assigned_person_and_organization-> person_and_organization person_and_organization.the_person-> person
person_organization для part	PATH		42	cc_design_person_and_organization_assignment {cc_design_person_organization_assignment <= person_and_organization_assignment person_and_organization_assignment.role-> person_and_organization_role person_and_organization_role.name = 'design_owner'} cc_design_person_and_organization_assignment.items[i]-> person_organization_item = product product
person_organization для design_discipline_product_definition	PATH		41	cc_design_person_and_organization_assignment {cc_design_person_and_organization_assignment <= person_organization_assignment person_and_organization_assignment.role-> person_and_organization_role person_and_organization_role.name = 'creator'} cc_design_person_and_organization_assignment.items[i]-> person_organization_item = product_definition product_definition
person_organization для part_version	PATH		46	cc_design_person_and_organization_assignment {cc_design_person_and_organization_assignment <= person_organization_assignment person_and_organization_assignment.role-> person_and_organization_role person_and_organization_role.name = 'creator'} cc_design_person_and_organization_assignment.items[i]-> person_organization_item = product_definition_formation product_definition_formation
person_organization для supplier	PATH			cc_design_person_and_organization_assignment <= person_and_organization_assignment person_and_organization_assignment.assigned_person_and_organization-> person_and_organization person_and_organization.the_organization-> organization

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
ALTERNATE_PART	product	41		product
				{product<- alternate_product_relationship.alternate}
COMPONENT_ASSEMBLY_POSITION	([shape_representation_relationship] [representation_relationship_with_transformation])	43	16
	(mapped_item)		73
transformation	(transformation) ([mapped_item.mapping_target] [representation_map.mapping_origin])	43		(shape_representation_relationship <= representation_relationship => representation_relationship_with_transformation representation_relationship_with_transformation.transformation_operator-> transformation) ([mapped_item mapped_item.mapping_target] [mapped_item mapped_item.mapping_source-> representation_map representation_map.mapping_origin])
ENGINEERING_ASSEMBLY	assembly_component_usage	44	16, 70
security_code	security_classification_level	44	28, 37, 56	assembly_component_usage classified_item = assembly_component_usage classified_item<- cc_design_security_classification.items[i] cc_design_security_classification<= security_classification_assignment security_classification_assignment.assigned_security_classification-> security_classification security_classification.security_level-> security_classification_level
engineering_assembly для planned_effectivity	PATH			assembly_component_usage <= product_definition_usage <= product_definition_relationship<- product_definition_effectivity.usage
engineering_assembly для substitute_part	assembly_component_usage_substitute.substitute	44		assembly_component_usage <- assembly_component_usage_substitute.substitute assembly_component_usage_substitute
ENGINEERING_MAKE_FROM	design_make_from_relationship	203	35	design_make_from_relationship<= product_definition_relationship
ENGINEERING_NEXT HIGHER_ASSEMBLY	next_assembly_usage occurrence	44	70
as_required	descriptive_measure	41	4	next_assembly_usage_occurrence <= assembly_component_usage => quantified_assembly_component_usage quantified_assembly_component_usage.quantity-> measure_with_unit measure_with_unit.value_component-> measure_value measure_value=descriptive_measure {descriptive_measure = 'as_required'}
component_quantity	measure_with_unit.value_component	41		next_assembly_usage_occurrence <= assembly_component_usage => quantified_assembly_component_usage quantified_assembly_component_usage.quantity-> measure_with_unit measure_with_unit.value_component
reference_designator	assembly_component_usage.reference_designator	44		next_assembly_usage_occurrence <= assembly_component_usage assembly_component_usage.reference_designator
unit_of_measure	unit	41		next_assembly_usage_occurrence <= assembly_component_usage=> quantified_assembly_component_usage quantified_assembly_component_usage.quantity-> measure_with_unit measure_with_unit.unit_component-> unit
engineering_next_higher_assembly для component_assembly_position	(context_dependent_shape_representation)	41	16	(next_assembly_usage_occurrence<= assembly_component_usage <= product_definition_usage <= product_definition_relationship characterized_product_definition = product_definition_relationship characterized_definition = characterized_product_definition characterized_definition <- property_definition.definition property_definition => product_definition_shape <- context_dependent_shape_representation.represented_product_relation context_dependent_shape_representation) (next_assembly_usage_occurrence<= assembly_component_usage <= product_definition_usage <= product_definition_relationship product_definition_relationship.relating_product_definition-> product_definition characterized_product_definition = product_definition characterized_definition = characterized_product_definition characterized_definition <- property_definition.definition property_definition{=>product_definition_shape} <- property_definition_representation.definition property_definition_representation{ => shape_definition_representation} <- property_definition_representation.used_representation->
	(mapped_item)	43	73
engineering_next_higher_assembly для component_assembly_position (продолжение)	representation.items[i]	43		property_definition_representation.used_representation property_definition_representation{ => shape_definition_representation} property_definition_representation.definition -> property_definition{ => product_definition_shape} property_definition.definition -> characterized_definition = characterized_product_definition characterized_product_definition = product_definition product_definition <- product_definition_relationship.related_product_definition product_definition_relationship => product_definition_usage => assembly_component_usage => next_assembly_usage_occurrence})
ENGINEERING_PROMISSORY_USAGE	promissory_usage_occurrence	44	70
SUBSTITUTE_PART	product	41		product {product <- product_definition_formation.of_product product_definition_formation <- product_definition.formation product_definition <- product_definition_relationship.related_product_definition product_definition_relationship => product_definition_usage => assembly_component_usage <- assembly_component_usage_substitute.substitute}

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
CHANGE_ORDER	change	203	10, 11, 74	change <= action_assignment {action_assignment.assigned_action-> action => executed_action => directed_action}
adopted_solution	action_method	41		change <= action_assignment action_assignment.assigned_action-> action {action => executed_action => directed_action} action.chosen_method-> action_method
change_date	date_and_time	41	52, 22	change date_time_item = change date_time_item <- cc_design_date_and_time_assignment.items[i] cc_design_date_and_time_assignment <= date_and_time_assignment {date_and_time_assignment.role -> date_time_role date_time_role.name = 'change_date'} date_and_time_assignment.assigned_date_and_time -> date_and_time
CHANGE_REQUEST	change_request	203	7, 8, 9, 75	change_request <= action_request_assignment
recommended_solution	action_method	41	76	change_request <= action_request_assignment action_request_assignment.assigned_action_request -> versioned_action_request <- action_request_solution.request action_request_solution action_request_solution.method -> action_method
version	versioned_action_request.version	41		change_request <= action_request_assignment action_request_assignment.assigned_action_request-> versioned_action_request versioned_action_request.version
consequence	action_method.consequence	41		change_request <= action_request_assignment action_request_assignment.assigned_action_request -> versioned_action_request <- action_request_solution.request action_request_solution action_request_solution.method -> action_method action_method.consequence
START_ORDER	start_work	203	64, 65	start_work <= action_assignment {action_assignment.assigned_action-> action => action_execution => directed_action}
START_REQUEST	start_request	203	61, 62, 63	start_request <= action_request_assignment
WORK_ORDER	directed_action	41	66, 17
work_order_id	action_directive.name	41		directed_action directed_action.directive-> action_directive action_directive.name
additional_data	action_directive.comment	41		directed_action directed_action.directive-> action_directive action_directive.comment
analysis_data	action_directive.analysis	41		directed_action directed_action.directive-> action_directive action_directive.analysis
work_order для approval	PATH		7, 61	directed_action <= executed_action <= action <- action_assignment.assigned_action action_assignment => (start_work approved_item = start_work) (change approved_item = change) approved_item <- cc_design_approval.items[i] cc_design_approval
work_order для part_version	PATH		66	directed_action <= executed_action <= action <- action_assignment.assigned_action action_assignment => (start_work start_work.items[i]-> work_item work_item = product_definition_formation) (change change.items[i]-> work_item work_item = product_definition_formation) product_definition_formation => product_definition_formation_with_specified_source
work_order для work_request	action_directive.requests[i]	41		directed_action directed_action.directive-> action_directive action_directive.requests[i]-> versioned_action_request
WORK_REQUEST	versioned_action_request	41	74
description	versioned_action_request.description	41
reason	versioned_action_request.purpose	41
request_date	date_and_time	41	52, 22	versioned_action_request <- action_request_assignment.assigned_action_request action_request_assignment => (start_request date_time_item = start_request) (change_request date_time_item = change_request) date_time_item <- cc_design_date_and_time_assignment.items[i] cc_design_date_and_time_assignment <= date_and_time_assignment {date_and_time_assignment.role-> date_time_role.name = 'request_date'} date_and_time_assignment.assigned_date_and_time-> date_and_time
status	action_request_status	41	48	versioned_action_request <- action_request_status.assigned_request action_request_status
work_request_id	versioned_action_request.id	41
work_request для approval	PATH		7, 61	versioned_action_request <- action_request_assignment.assigned_action_request action_request_assignment => (start_request approved_item = start_request) (change_request approved_item = change_request) approved_item <- cc_design_approval.items[i] cc_design_approval
work_request для part_version	PATH		74	versioned_action_request <- action_request_assignment.assigned_action_request action_request_assignment => (start_request start_request.items[i]-> start_request_item start_request_item = product_definition_formation) (change_request change_request.items[i]-> change_request_item change_request_item = product_definition_formation) product_definition_formation => product_definition_formation_with_specified_source
work_request для person_organization	PATH		9, 63	versioned_action_request <- action_request_assignment.assigned_action_request action_request_assignment => (start_request person_organization_item = start_request) (change_request person_organization_item = change_request) person_organization_item <- cc_design_person_and_organization_assignment.items[i] cc_design_person_and_organization_assignment

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
ADDITIONAL_DESIGN_INFORMATION	document	41	31	document {document <- document_relationship.relating_document}
additional_design_information для specification	PATH		31	document <- document_relationship.relating_document document_relationship document_relationship.related_document -> document <- document_reference.assigned_document document_reference => cc_design_specification_reference
DESIGN_SPECIFICATION	document	41	53, 23	document {document.kind-> document_type document_type.product_data_type = 'design_specification'}
MATERIAL SPECIFICATION	document	41	53, 23	document {document.kind-> document_type document_type.product_data_type = 'material_specification'}
PROCESS_SPECIFICATION	document	41	53, 23	document {document.kind -> document_type document_type.product_data_type = 'process_specification'}
SPECIFICATION	cc_design_specification_reference	203		cc_design_specification_reference <= document_reference
specification_code	document.id	41		cc_design_specification_reference <= document_reference document_reference.assigned_document -> document document.id
specification_source	document_reference.source	41		cc_design_specification_reference <= document_reference document_reference.source
specification для usage_constraint	PATH			cc_design_specification_reference <= document_reference document_reference.assigned_document-> document <- document_usage_constraint.source document_usage_constraint
SURFACE_FINISH_SPECIFICATION	document	41	53, 23	document {document.kind-> document_type document_type.product_data_type = 'surface_finish_specification'}
USAGE_CONSTRAINT	document_usage_constraint	41
element	document_usage_constraint.subject_element	41
value	document_usage_constraint.subject_element_value	41

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
PLANNED_DATE_EFFECTIVITY	dated_effectivity	41	67
end_date	date_and_time	41	52, 22	dated_effectivity dated_effectivity.effectivity_end_date-> date_and_time
start_date	date_and_time	41	52, 22	dated_effectivity dated_effectivity.effectivity_start_date-> date_and_time
PLANNED_EFFECTIVITY	[product_definition_effectivity]	41	67, 32
	[configuration_effectivity]	44
planned_effectivity для approval	PATH		32	[product_definition_effectivity] [configuration_effectivity] <- approved_item = configuration_effectivity approved_item <- cc_design_approval.items[i] cc_design_approval
PLANNED_LOT_EFFECTIVITY	lot_effectivity	41	67
lot_number	lot_effectivity.effectivity_lot_id	41
lot_size	measure_value	41		lot_effectivity lot_effectivity.effectivity_lot_size-> measure_with_unit measure_with_unit.value_component-> measure_value
lot_size_unit_of_measure	unit	41	24	lot_effectivity.effectivity_lot_size-> measure_with_unit measure_with_unit.unit_component-> unit
PLANNED_SEQUENCE_EFFECTIVITY	serial_numbered_effectivity	41	67
component_quantity	measure_value	41		serial_numbered_effectivity <= effectivity => product_definition_effectivity product_definition_effectivity.usage-> product_definition_relationship => product_definition_usage => assembly_component_usage=> quantified_assembly_component_usage quantified_assembly_component_usage.quantity-> measure_with_unit measure_with_unit.value_component-> measure_value
from_effectivity_id	serial_numbered_effectivity.effectivity_start_id	41
quantity_unit_of_measure	unit	41	24	serial_numbered_effectivity <= effectivity => product_definition_effectivity product_definition_effectivity.usage-> product_definition_relationship => product_definition_usage => assembly_component_usage => quantified_assembly_component_usage quantified_assembly_component_usage.quantity-> measure_with_unit measure_with_unit.unit_component-> unit
thru_effectivity_id	serial_numbered_effectivity.effectivity_end_id	41

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
PRODUCT_CONFIGURATION	configuration_item	44	12, 13
item_id	configuration_item.identification	44
phase_of_product	configuration_item.purpose	41
product_configuration для approval	PATH		12	configuration_item approved_item = configuration_item approved_item <- cc_design_approval.items[i] cc_design_approval
product_configuration для part	configuration_design.design	44		configuration_item<- configuration_design.configuration configuration_design configuration_design.design-> product_definition_formation{ => product_definition_formation_with_specified_source} product_definition_formation.of_product-> product
product_configuration для planned_effectivity	PATH			configuration_item<- configuration_design.configuration configuration_design <- configuration_effectivity.configuration [configuration_effectivity] [product_definition_effectivity]
PRODUCT_MODEL	product_concept	44	38
model_name	product_concept.identification	44
product_model для product_configuration	configuration_item .item_concept	44		product_concept <- configuration_item.item_concept configuration_item

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
FACETED_B_REP	faceted_brep_shape_representation	203	73	faceted_brep_shape_representation <= shape_representation

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
MANIFOLD_SURFACE_WITH_TOPOLOGY	manifold_surface_shape_representation	203	73	manifold_surface_shape_representation <= shape_representation

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
NON_TOPOLOGICAL_SURFACE_AND_WIREFRAME	(geometrically_bounded_wireframe_shape_representation)	203	73	(geometrically_bounded_wireframe_shape_representation <= shape_representation)
	(geometrically_bounded_surface_shape_representation)		73	(geometrically_bounded_surface_shape_representation <= shape_representation)

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
DESIGN_DISCIPLINE_PRODUCT_DEFINITION	product_definition	41	30, 31, 39, 40, 41
cad_filename	document.id	41	53, 23	product_definition => product_definition_with_associated_documents product_definition_with_associated_documents.documentation_ids-> document {document.kind-> document_type document_type.product_data_type= 'cad_filename'} document.id
creation_date	date_and_time	41	52, 22	product_definition date_time_item = product_definition date_time_item <- cc_design_date_and_time_assignment.items[i] cc_design_date_and_time_assignment <= date_and_time_assignment {date_and_time_assignment.role-> date_time_role date_time_role.name = 'creation_date'} date_and_time_assignment.assigned_date_and_time-> date_and_time
description	product_definition.description	41
discipline_id	[product_definition_context.life_cycle_stage]	41	30	product_definition product_definition.frame_of_reference-> product_definition_context [product_definition_context.life_cycle_stage] [product_definition_context <= application_context_element application_context_element.name]
	[application_context_element.name]	41
design_discipline_product_definition для additional_design_information	PATH		31	product_definition specified_item = product_definition specified_item <- cc_design_specification_reference.items[i] cc_design_specification_reference <= document_reference document_reference.assigned_document-> document <- document_relationship.relating_document
design_discipline_product_definition для approval	PATH		39	product_definition approved_item = product_definition approved_item <- cc_design_approval.items[i] cc_design_approval
design_discipline_product_definition для engineering_assembly (является сборочной единицей)	product_definition_relationship.relating_product_definition	41		product_definition <- product_definition_relationship.relating_product_definition product_definition_relationship => product_definition_usage = assembly_component_usage
design_discipline_product_definition для engineering_assembly (используется в качестве компонента)	product_definition_relationship.related_product_definition	41		product_definition <- product_definition_relationship.related_product_definition product_definition_relationship => product_definition_usage => assembly_component_usage
design_discipline_product_definition для engineering_make_from (базовая конструкция)	PATH			product_definition <- product_definition_relationship.relating_product_definition product_definition_relationship => design_make_from_relationship
design_discipline_product_definition для engineering_make_from (производная конструкция)	PATH			product_definition<- product_definition_relationship.related_product_definition product_definition_relationship => design_make_from_relationship
PART	product	41	42, 43, 44, 68
part_classification	product_related_product_category	41	55	product <- product_related_product_category.products[i] product_related_product_category
part_nomenclature	product.name	41
part_number	product.id	41
part_type	product_related_product_category	41	43, 55	product <- product_related_product_category.products[i] product_related_product_category
standard_part_indicator	product_category.name	41		product <- product_related_product_category.products[i] product_related_product_category <= product_category <- (product_category_relationship.related_product_category->) (product_category_relationship.relating_product_category->) product_category product_category.name {product_category.name = 'standard_part'}
part для alternate_part	PATH			product <- alternate_product_relationship.base alternate_product_relationship alternate_product_relationship.alternate-> product
part для part_version	product_definition_formation.of_product	41	44	product <- product_definition_formation.of_product product_definition_formation => product_definition_formation_with_specified_source
part для substitute_part	PATH			product <- product_definition_formation.of_product product_definition_formation{=> product_definition_formation_with_specified_source} <- product_definition.formation product_definition <- product_definition_relationship.relating_product_definition product_definition_relationship => product_definition_usage=> assembly_component_usage <- assembly_component_usage_substitute.substitute assembly_component_usage_substitute
PART_VERSION	product_definition_formation_with_specified_source	41	44, 45, 46, 47, 69, 74
contract_number	contract.name	41	14, 15, 20, 51	product_definition_formation_with_specified_source <= product_definition_formation contracted_item = product_definition_formation contracted_item <- cc_design_contract.items[i] cc_design_contract <= contract_assignment contract_assignment.assigned_contract-> contract contract.name
make_or_buy_code	product_definition_formation_with_specified_source.make_or_buy	41
release_status	approval_status	41	49, 18	product_definition_formation_with_specified_source <= product_definition_formation approved_item = product_definition_formation approved_item <- cc_design_approval.items[i] cc_design_approval <= approval_assignment approval_assignment.assigned_approval -> approval approval.status-> approval_status
revision_letter	product_definition_formation.id	41		product_definition_formation_with_specified_source <= product_definition_formation product_definition_formation.id
security_code	security_classification_level	41	28, 56, 57, 59, 58, 60	product_definition_formation_with_specified_source <= product_definition_formation classified_item = product_definition_formation classified_item<- cc_design_security_classification.items[i] cc_design_security_classification <= security _classification_assignment security_classification_assignment.assigned_security_classification-> security_classification security_classification.security_level-> security_classification_level
part_version для approval	PATH			product_definition_formation_with_specified_source <= product_definition_formation approved_item = product_definition_formation approved_item <- cc_design_approval.items[i] cc_design_approval
part_version для design_discipline_product_definition	product_definition.formation	41		product_definition_formation_with_specified_source <= product_definition_formation <- product_definition.formation product_definition
part_version для supplied_part_version	PATH		36	product_definition_formation_with_specified_source <= product_definition_formation <- product_definition.formation product_definition <- product_definition_relationship.relating_product_definition product_definition_relationship => supplied_part_relationship

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
GEOMETRIC_MODEL_REPRESENTATION	shape_representation	41	33, 34, 25, 27, 29, 71, 72, 73
geometric_model_representation для component_assembly_position (представляет компоненты)	(shape_representation_relationship.rep_2)	41	16	(shape_representation <= representation <- shape_representation_relationship.rep_2)
	(representation_map.mapped_representation)	43		(shape_representation <= representation <- representation_map.mapped_representation representation_map<- mapped_item.mapping_source mapped_item <- representation.items[i])
geometric_model_representation для component_assembly_position (представляет сборочную единицу)	(context_dependent_shape_representation)	41	16	(shape_representation <= representation <- shape_representation_relationship.rep_1)
	(mapped_item)	43		(shape_representation <= representation representation.items[i]{-> mapped_item})
SHAPE	shape_definition_representation	41
shape для design_discipline_product_definition	PATH	41		shape_definition_representation <= property_definition_representation property_definition_representation.definition-> property_definition{=> product_definition_shape} property_definition.definition-> characterized_definition characterized_definition = characterized_product_definition characterized_product_definition = product_definition product_definition
shape для geometric_model_representation	PATH	41		shape_definition_representation <= property_definition_representation property_definition_representation.used_representation-> representation => shape_representation
shape для shape_aspect	PATH	41		shape_definition_representation <= property_definition_representation property_definition_representation.definition-> property_definition property_definition.definition-> characterized_definition = shape_definition shape_definition = shape_aspect shape_aspect
SHAPE_ASPECT	shape_aspect	41
shape_aspect для geometric_model_representation	PATH	41	73	shape_aspect shape_definition = shape_aspect characterized_definition = shape_definition characterized_definition <- property_definition.definition property_definition <- property_definition_representation.definition property_definition_representation{ => shape_definition_representation} property_definition_representation.used_representation-> representation => shape_representation
shape_aspect для specification	specified_item = shape_aspect	203	31	shape_aspect specified_item = shape_aspect specified_item<- cc_design_specification_reference.items[i] cc_design_specification_reference

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
SUPPLIED_PART_VERSION	product_definition_formation_with_specified_source	41	69
certification_required	cc_design_certification	203	5, 6, 19, 50	product_definition_formation_with_specified_source <= product_definition_formation <- product_definition.formation product_definition <- product_definition_relationship.related_product_definition product_definition_relationship => supplied_part_relationship certified_item = supplied_part_relationship certified_item <- cc_design_certification.items[i] cc_design_certification
supplier_part_number	product.id	41		product_definition_formation_with_specified_source <= product_definition_formation {product_definition_formation<- product_definition.formation product_definition <- product_definition_relationship.related_product_definition product_definition_relationship => supplied_part_relationship} product_definition_formation.of_product -> product product.id
supplied_part_version для approval	PATH		45	product_definition_formation_with_specified_source <= product_definition_formation {product_definition_formation <- product_definition.formation product_definition <- product_definition_relationship.related_product_definition product_definition_relationship => supplied_part_relationship} approved_item = product_definition_formation approved_item <- cc_design_approval.items[i] cc_design_approval
SUPPLIER	organization	41
supplier_id	organization.id	41
supplier для supplied_part_version	PATH			organization <- person_and_organization.the_organization person_and_organization <- person_and_organization_assignment.assigned_person_and_organization person_and_organization_assignment=> cc_design_person_and_organization_assignment cc_design_person_and_organization_assignment.items[i]-> person_organization_item person_organization_item = product_definition_formation product_definition_formation => product_definition_formation_with_specified_source

Прикладной элемент	Элемент ПИМ	Источник	Правила	Ссылочный путь
WIREFRAME_WITH_TOPOLOGY	(edge_based_wireframe_shape_representation)	203	73	(edge_based_wireframe_shape_representation <= shape_representation)
	(shell_based_wireframe_shape_representation)		73	(shell_based_wireframe_shape_representation <= shape_representation)

*) SCHEMA config_control_design; USE FROM application_context_schema - ГОСТ Р ИСО 10303-41 (application context, application_protocol_definition, product_context, product_definition_context, product_concept_context); USE FROM product_definition_schema - ГОСТ Р ИСО 10303-41 (product, product_definition, product_definition_formation, product_definition_formation_with_specified_source, product_definition_relationship, product_category, product_category_relationship, product_related_product_category, product_definition_with_associated_documents); USE FROM product_structure_schema - ГОСТ Р ИСО 10303-44 (product_definition_usage, assembly_component_usage, next_assembly_usage_occurrence, promissory_usage_occurrence, quantified_assembly_component_usage, specified_higher_usage_occurrence, assembly_component_usage_substitute, alternate_product_relationship); USE FROM configuration_management_schema - ГОСТ Р ИСО 10303-44 (configuration_item, configuration_design, configuration_effectivity); USE FROM product_concept_schema - ГОСТ Р ИСО 10303-44 (product_concept); USE FROM product_property_definition_schema - ГОСТ Р ИСО 10303-41 (product_definition_shape, property_definition, shape_aspect, shape_aspect_relationship);

USE FROM product_property_representation_schema - ГОСТ Р ИСО 10303-41 (context_dependent_shape_representation, property_definition_representation, shape_representation, shape_representation_relationship, shape_definition_representation); USE FROM representation_schema - ГОСТ Р ИСО 10303-43 (functionally_defined_transformation, item_defined_transformation, global_uncertainty_assigned_context, mapped_item, representation, representation_context, parametric_representation_context, representation_item, representation_map, representation_relationship, representation_relationship_with_transformation, using_representations); USE FROM geometry_schema - ИСО 10303-42 (axis1_placement, axis2_placement_2d, axis2_placement_3d, b_spline_curve, b_spline_curve_with_knots, b_spline_surface, b_spline_surface_with_knots, bezier_curve, bezier_surface, boundary_curve, cartesian_point, cartesian_transformation_operator_3d, circle, composite_curve, composite_curve_on_surface, composite_curve_segment, conic,

conical_surface, curve, curve_bounded_surface, curve_replica, cylindrical_surface, degenerate_pcurve, degenerate_toroidal_surface, dimension_count, dimension_of, direction, ellipse, evaluated_degenerate_pcurve, geometric_representation_context, geometric_representation_item, hyperbola, intersection_curve, line, offset_curve_3d, offset_surface, outer_boundary_curve, parabola, pcurve, plane, point, point_on_curve, point_on_surface, point_replica, polyline, quasi_uniform_curve, quasi_uniform_surface, rational_b_spline_curve, rational_b_spline_surface, rectangular_composite_surface, rectangular_trimmed_surface, reparametrised_composite_curve_segment, seam_curve, spherical_surface,

surface, surface_curve, surface_of_linear_extrusion, surface_of_revolution, surface_replica, swept_surface, toroidal_surface, trimmed_curve, uniform_curve, uniform_surface, vector); USE FROM topology_schema - ИСО 10303-42 (closed_shell, connected_edge_set, connected_face_set, edge_curve, edge_loop, face_bound, face_outer_bound, face_surface, open_shell, oriented_closed_shell, oriented_face, path, poly_loop, topological_representation_item, vertex_loop, vertex_point, vertex_shell, wire_shell); USE FROM geometric_model_schema - ИСО 10303-42 (brep_with_voids, edge_based_wireframe_model, faceted_brep, geometric_curve_set, geometric_set, manifold_solid_brep, shell_based_surface_model, shell_based_wireframe_model);

USE FROM action_schema - ГОСТ Р ИСО 10303-41 (action, action_method, action_request_solution, action_request_status, action_status, action_directive, directed_action, versioned_action_request); USE FROM certification_schema - ГОСТ Р ИСО 10303-41 (certification, certification_type); USE FROM approval_schema - ГОСТ Р ИСО 10303-41 (approval_date_time, approval_person_organization, approval, approval_status, approval_relationship); USE FROM contract_schema - ГОСТ Р ИСО 10303-41 (contract, contract_type); USE FROM security_classification_schema - ГОСТ Р ИСО 10303-41 (security_classification, security_classification_level); USE FROM person_organization_schema - ГОСТ Р ИСО 10303-41 (person_and_organization, organization_relationship, personal_address, organizational_address, organizational_project, person_and_organization_role); USE FROM date_time_schema - ГОСТ Р ИСО 10303-41 (date_and_time, date, calendar_date, ordinal_date, week_of_year_and_day_date, date_time_role);

USE FROM document_schema - ГОСТ Р ИСО 10303-41 (document_with_class, document_usage_constraint, document_type, document_relationship); USE FROM effectivity_schema - ГОСТ Р ИСО 10303-41 (effectivity, serial_numbered_effectivity, dated_effectivity, lot_effectivity); USE FROM management_resources_schema - ГОСТ Р ИСО 10303-41 (approval_assignment, certification_assignment, contract_assignment, date_and_time_assignment, person_and_organization_assignment, document_reference, security_classification_assignment, action_assignment, action_request_assignment); USE FROM measure_schema - ГОСТ Р ИСО 10303-41 (measure_value, area_measure, count_measure, descriptive_measure, context_dependent_measure, parameter_value, plane_angle_measure, positive_length_measure, positive_plane_angle_measure, mass_measure, solid_angle_measure, volume_measure, named_unit, context_dependent_unit, conversion_based_unit, si_unit, area_unit,

length_unit, mass_unit, plane_angle_unit, solid_angle_unit, volume_unit, measure_with_unit, area_measure_with_unit, length_measure_with_unit, mass_measure_with_unit, plane_angle_measure_with_unit, solid_angle_measure_with_unit, volume_measure_with_unit, global_unit_assigned_context); USE FROM aic_edge_based_wireframe; - ИСО 10303-501 USE FROM aic_shell_based_wireframe; - ИСО 10303-502 USE FROM aic_geometrically_bouded_surface; - ИСО 10303-507 USE FROM aic_manifold_surface; - ИСО 10303-509 USE FROM aic_geometrically_bouded_wireframe; - ИСО 10303-510 USE FROM aic_topologically_bouded_surface; - ИСО 10303-511 USE FROM aic_faceted_brep; - ИСО 10303-512 USE FROM aic_advanced_brep; - ИСО 10303-514 (*

application_context_schema	- ГОСТ Р ИСО 10303-41;
product_definition_schema	- ГОСТ Р ИСО 10303-41;
product_structure_schema	- ГОСТ Р ИСО 10303-44;
configuration_management schema	- ГОСТ Р ИСО 10303-44;
product_concept_schema	- ГОСТ Р ИСО 10303-44;
product_property_definition_schema	- ГОСТ Р ИСО 10303-41;
product_property_representation_schema	- ГОСТ Р ИСО 10303-41;
representation_schema	- ГОСТ Р ИСО 10303-43;
geometry_schema	- ИСО 10303-42;
geometric_model_schema	- ИСО 10303-42;
action_schema	- ГОСТ Р ИСО 10303-41;
certification_schema	- ГОСТ Р ИСО 10303-41;
approval_schema	- ГОСТ Р ИСО 10303-41;
contract_schema	- ГОСТ Р ИСО 10303-41;
security_classification_schema	- ГОСТ Р ИСО 10303-41;
person_organization_schema	- ГОСТ Р ИСО 10303-41;
date_time_schema	- ГОСТ Р ИСО 10303-41;
document_schema	- ГОСТ Р ИСО 10303-41;
effectivity_schema	- ГОСТ Р ИСО 10303-41;
management_resources_schema	- ГОСТ Р ИСО 10303-41;
measure_schema	- ГОСТ Р ИСО 10303-41;
aic_edge_based_wireframe	- ИСО 10303-501;
aic_shell_based_wireframe	- ИСО 10303-502;
aic_geometrically_bouded_surface	- ИСО 10303-507;
aic_manifold_surface	- ИСО 10303-509;
aic_geometrically_bouded_wireframe	- ИСО 10303-510;
aic_topologically_bouded_surface	- ИСО 10303-511;
aic_faceted_brep	- ИСО 10303-512;
aic_advanced_brep	- ИСО 10303-514.

*)
dummy_gri :	geometric_representation_item := representation_item ( ' ' ) | | geometric_representation_item ( );
(*

*)
dummy_tri :	topological_representation_item := representation_item ( ' ' ) | | topological_representation_item ( );
END_CONSTANT; (*

ИС МЕГАНОРМ: примечание. Взамен ГОСТ Р ИСО 10303-43-2002 Приказом Росстандарта от 30.11.2016 N 1888-ст с 01.01.2018 введен в действие ГОСТ Р ИСО 10303-43-2016.

*) RULE application_context_requires_ap_definition FOR (application_context, application_protocol_definition); WHERE
WR1:	SIZEOF (QUERY (ac <* application_context | NOT (SIZEOF (QUERY (apd <* application_protocol_definition | (ac :=: apd.application) AND (apd.application_interpreted_model_schema_name = 'config_control_design'))) = 1 ))) = 0;
END_RULE; (*

*) RULE restrict_product_category_value FOR (product_related_product_category); WHERE
WR1:	SIZEOF (QUERY (prpc <* product_related_product_category | NOT (prpc.name IN ['assembly', 'detail', 'customer_furnished_equipment', 'inseparable_assembly', 'cast', 'coined', 'drawn', 'extruded', 'forged', 'formed', 'machined', 'molded', 'rolled', 'sheared']))) = 0;
END_RULE; (*

*) RULE change_request_requires_approval FOR (change_request, cc_design_approval); WHERE
WR1:	SIZEOF (QUERY (cr <* change_request | NOT (SIZEOF (QUERY (ccda <* cc_design_approval |
cr IN ccda.items )) = 1 ))) = 0; END_RULE; (*

*) RULE change_request_requires_person_organization FOR (change_request, cc_design_person_and_organization_assignment); WHERE
WR1:	SIZEOF (QUERY (cr <* change_request | NOT (SIZEOF (QUERY (ccpoa <* cc_design_person_and_organization_assignment | cr IN ccpoa.items )) >= 1 ))) = 0;
END_RULE; (*

*) RULE change_request_requires_date_time FOR (change_request, cc_design_date_and_time_assignment); WHERE
WR1:	SIZEOF (QUERY (cr <* change_request | NOT (SIZEOF(QUERY(ccdta <* cc_design_date_and_time_assignment | (cr IN ccdta.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE change_requires_approval FOR (change, cc_design_approval); WHERE
WR1:	SIZEOF (QUERY (chg <* change | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | chg IN ccda.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE change_requires_date_time FOR (change, cc_design_date_and_time_assignment); WHERE
WR1:	SIZEOF (QUERY (chg <* change | NOT (SIZEOF (QUERY (ccdta <* cc_design_date_and_time_assignment | (chg IN ccdta.items) AND (ccdta.role.name = 'start_date'))) = 1 ))) = 0;
END_RULE; (*

*) RULE start_request_requires_approval FOR (start_request, cc_design_approval); WHERE
WR1:	SIZEOF (QUERY (sr <* start request | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | sr IN ccda.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE start_request_requires_person_organization FOR (start_request, cc_design_person_and_organization_assignment); WHERE
WR1:	SIZEOF (QUERY (sr <* start request | NOT (SIZEOF (QUERY (ccdpoa <* cc_design_person_and_organization_assignment | sr IN ccdpoa.items )) >= 1 ))) = 0;
END_RULE; (*

*) RULE start_request_requires_date_time FOR (start_request, cc_design_date_and_time_assignment); WHERE
WR1:	SIZEOF (QUERY (sr <* start_request | NOT (SIZEOF (QUERY (ccdta <* cc_design_date_and_time_assignment | sr IN ccdta.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE start_work_requires_approval FOR (start_work, cc_design_approval); WHERE
WR1:	SIZEOF (QUERY (sw <* start_work | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | sw IN ccda.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE start_work_requires_date_time FOR (start_work, cc_design_date_and_time_assignment); WHERE
WR1:	SIZEOF (QUERY (sw <* start_work | NOT (SIZEOF (QUERY (ccdta <* cc_design_date_and_time_assignment | (sw IN ccdta.items) AND (ccdta.role.name = 'start_date'))) = 1 ))) = 0;
END_RULE; (*

*) RULE restrict_action_request_status FOR (action_request_status); WHERE
WR1:	SIZEOF (QUERY (ars <* action_request_status | NOT (ars.status IN ['proposed', 'in_work', 'issued', 'hold']))) = 0;
END_RULE; (*

*) RULE versioned_action_request_requires_status FOR (versioned_action_request, action_request_status); WHERE
WR1:	SIZEOF (QUERY (ar <* versioned_action_request | NOT (SIZEOF (QUERY (ars <* action_request_status | ar :=: ars.assigned_request)) = 1))) = 0;
END_RULE; (*

*) RULE versioned_action_request_requires_solution FOR (versioned_action_request, action_request_solution); WHERE
WR1:	SIZEOF (QUERY (ar <* versioned_action_request | NOT (SIZEOF (QUERY (ars <* action_request_solution | ar :=: ars.request)) >= 1))) = 0;
END_RULE; *)

*) RULE unique_version_change_order_rule FOR (change) ; WHERE
WR1:	SIZEOF (QUERY (c <* change | NOT (unique_version_change_order (c.assigned_action)))) = 0;
END_RULE ; (*

*) RULE product_requires_version FOR (product, product_definition_formation); WHERE
WR1:	SIZEOF (QUERY (prod <* product | NOT (SIZEOF (QUERY (pdf <* product_definition_formation | prod : = : pdf.of_product )) >= 1 ))) = 0;
END_RULE; (*

*) RULE product_requires_person_organization FOR (product, cc_design_person_and_organization_assignment) ; WHERE
WR1:	SIZEOF (QUERY (prod <* product | NOT (SIZEOF (QUERY (ccdpoa <* cc_design_person_and_organization_assignment | prod IN ccdpoa.items )) = 1 ))) = 0;
END_RULE ; (*

*) RULE product_version_requires_approval FOR (product_definition_formation, cc_design_approval) ; WHERE
WR1:	SIZEOF (QUERY (pdf <* product_definition_formation | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | pdf IN ccda .items )) = 1 ))) = 0;
END_RULE ; (*

*) RULE product_version_requires_person_organization FOR (product_definition_formation, cc_design_person_and_organization_assignment) ; WHERE
WR1:	SIZEOF (QUERY (pdf <* product_definition_formation | NOT (SIZEOF (QUERY (ccdpoa <* cc_design_person_and_organization_assignment | (pdf IN ccdpoa.items) AND (ccdpoa.role.name = 'creator' ))) = 1 ))) = 0;
WR2:	SIZEOF (QUERY (pdf <* product_definition_formation | NOT (SIZEOF (QUERY (ccdpoa <* cc_design_person_and_organization_assigniment | (pdf IN ccdpoa.items) AND (ccdpoa.role.name IN ['design_supplier', 'part_supplier' ]))) >= 1 ))) = 0;
END_RULE ; (*

*) RULE product_version_requires_security_classification FOR (product_definition_formation, cc_design_security_classification) ; WHERE
WR1:	SIZEOF (QUERY (pdf <* product_definition_formation | NOT (SIZEOF (QUERY (ccdsc <* cc_design_security_classification | pdf IN ccdsc.items )) = 1 ))) = 0;
END_RULE ; (*

*) RULE product_definition_requires_person_organization FOR (product_definition, cc_design_person_and_organization_assignment); WHERE
WR1:	SIZEOF (QUERY (pd <* product_definition | NOT (SIZEOF (QUERY (ccdpoa <* cc_design_person_and_organization_assignment | pd IN ccdpoa.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE product_definition_requires_approval FOR (product_definition, cc_design_approval); WHERE
WR1:	SIZEOF (QUERY (pd <* product_definition | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | pd IN ccda.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE product_definition_requires_date_time FOR (product_definition, cc_design_date_and_time_assignment); WHERE
WR1:	SIZEOF (QUERY (pd <* product_definition | NOT (SIZEOF (QUERY (ccdta <* cc_design_date_and_time_assignment | pd IN ccdta.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE certification_requires_approval FOR (certification, cc_design_approval); WHERE
WR1:	SIZEOF (QUERY (cert <* certification | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | cert IN ccda.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE restrict_certification_type FOR (certification_type); WHERE
WR1:	SIZEOF (QUERY (ct <* certification_type | NOT (ct.description IN ['design_supplier', 'part_supplier']))) = 0;
END_RULE; *)

*) RULE certification_requires_date_time FOR (certification, cc_design_date_and_time_assignment); WHERE
WR1:	SIZEOF (QUERY (cert <* certification | NOT (SIZEOF (QUERY (ccdta <* cc_design_date_and_time_assignment | cert IN ccdta.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE approvals_are_assigned FOR (approval, approval_assignment); WHERE
WR1:	SIZEOF (QUERY (app <* approval | NOT (SIZEOF (QUERY (aa <* approval_assignment | app :=: aa.assigned_approval )) >= 1 ))) = 0;
END_RULE; (*

*) RULE approval_requires_approval_person_organization FOR (approval, approval_person_organization); WHERE
WR1:	SIZEOF (QUERY (app <* approval | NOT (SIZEOF (QUERY (apo <* approval_person_organization | app : = : apo.authorized_approval )) >= 1 ))) = 0;
END_RULE; (*

*) RULE approval_requires_approval_date_time FOR (approval, approval_date_time); WHERE
WR1:	SIZEOF (QUERY (app <* approval | NOT (SIZEOF (QUERY (adt <* approval_date_time | app :=: adt.dated_approval)) = 1 ))) = 0;
END_RULE; (*

*) RULE restrict_approval_status FOR (approval_status); WHERE
WR1:	SIZEOF (QUERY (ast <* approval_status | NOT (ast.name IN ['approved', 'not_yet_approved', 'disapproved', 'withdrawn']))) = 0;
END_RULE; (*

*) RULE contract_requires_approval FOR (contract, cc_design_approval); WHERE
WR1:	SIZEOF (QUERY (c <* contract | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | c IN ccda.items) ) = 1 ))) = 0;
END_RULE; (*

*) RULE contract_requires_person_organization FOR (contract, cc_design_person_and_organization_assignment); WHERE
WR1:	SIZEOF (QUERY (c <* contract | NOT (SIZEOF (QUERY (ccdpoa <* cc_design_person_and_organization_assignment | c IN ccdpoa.items)) = 1 ))) = 0;
END_RULE (*

*) RULE restrict_contract_type FOR (contract_type); WHERE
WR1:	SIZEOF (QUERY (ct <* contract_type | NOT (ct.description IN ['fixed_price', 'cost_plus']))) = 0;
END_RULE; (*

*) RULE security_classification_requires_approval FOR (security_classification, cc_design_approval); WHERE
WR1:	SIZEOF (QUERY (sc <* security_classification | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | sc IN ccda.items)) = 1 ))) = 0;
END_RULE; (*

*) RULE security_classification_requires_person_organization FOR (security_classification, cc_design_person_and_organization_assignment); WHERE
WR1:	SIZEOF (QUERY (sc <* security_classification | NOT (SIZEOF (QUERY (ccdpoa <* cc_design_person_and_organization_assignment | sc IN ccdpoa.items)) = 1 ))) = 0;
END_RULE; (*

*) RULE security_classification_requires_date_time FOR (security_classification, cc_design_date_and_time_assignment); WHERE
WR1:	SIZEOF (QUERY (sc <* security_classification | NOT (SIZEOF (QUERY (ccdta <* cc_design_date_and_time_assignment | (sc IN ccdta.items) AND ('classification_date' = ccdta.role.name))) = 1 ))) = 0;
END_RULE; (*

*) RULE security_classification_optional_date_time FOR (security_classification, cc_design_date_and_time_assignment); WHERE
WR1:	SIZEOF (QUERY (sc <* security_classification | NOT (SIZEOF (QUERY (ccdta <* cc_design_date_and_time_assignment | (sc IN ccdta.items) AND ('declassification_date' = ccdta.role.name))) <= 1 ))) = 0;
END_RULE; (*

*) RULE restrict_security_classification_level FOR (security_classification_level); WHERE
WR1:	SIZEOF (QUERY (scl <* security_classification_level | NOT (scl.name IN ['unclassified', 'classified', 'proprietary', 'confidential', 'secret', 'top_secret']))) = 0;
END_RULE; (*

*) RULE restrict_person_organization_role FOR (person_and_organization_role); WHERE
WR1:	SIZEOF (QUERY (por <* person_and_organization_role | NOT (por.name IN ['request_recipient', 'initiator', 'part_supplier', 'design_supplier', 'configuration_manager', 'contractor', 'classification_officer', 'creator', 'design_owner']))) = 0;
END_RULE; (*

*) RULE restrict_date_time_role FOR (date_time_role); WHERE
WR1:	SIZEOF (QUERY (dtr <* date_time_role | NOT (dtr.name IN ['creation_date', 'request_date', 'release_date', 'start_date', 'contract_date', 'certification_date', 'sign_off_date', 'classification_date', 'declassification_date']))) = 0;
END_RULE; (*

*) RULE restrict_document_type FOR (document_type); WHERE
WR1:	SIZEOF (QUERY (dt <* document_type | NOT (dt.product_data_type IN ['material_specification', 'process_specification', 'design_specification', 'surface_finish_specification', 'cad_filename', 'drawing']))) = 0;
END_RULE; (*

*) RULE document_to_product_definition FOR (cc_design_specification_reference); WHERE
WR1:	SIZEOF (QUERY (sp <* cc_design_specification_reference | NOT (((('CONFIG_CONTROL_DESIGN.DOCUMENT_RELATIONSHIP.' + 'RELATING_DOCUMENT' IN ROLESOF (sp\document_reference.assigned_document)) AND (SIZEOF (QUERY (it <* sp.items | NOT ('CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION' IN TYPEOF (it)))) = 0 ))) OR (NOT ('CONFIG_CONTROL_DESIGN.DOCUMENT_RELATIONSHIP.' + 'RELATING_DOCUMENT' IN ROLESOF (sp\document_reference.assigned_document)))))) = 0;
END_RULE; (*

*) RULE as_required_quantity FOR (measure_with_unit); WHERE
WR1:	SIZEOF (QUERY (m <* measure_with_unit | ('CONFIG_CONTROL_DESIGN.DESCRIPTIVE_MEASURE' IN TYPEOF (m.value_component ) ) AND (NOT (m.value_component = 'as_required')))) = 0;
END_RULE; (*

*) RULE global_unit_assignment FOR (global_unit_assigned_context); WHERE
WR1:	SIZEOF (QUERY (guac <* global_unit_assigned_context | NOT (SIZEOF (guac.units) = 3 ))) = 0;
WR2:	SIZEOF (QUERY (guac <* global_unit_assigned_context | NOT ( ( SIZEOF (QUERY (u <* guac.units | 'CONFIG_CONTROL_DESIGN.LENGTH_UNIT' IN TYPEOF (u))) = 1) AND (SIZEOF (QUERY (u <* guac.units | 'CONFIG_CONTROL_DESIGN.PLANE_ANGLE_UNIT' IN TYPEOF (u))) = 1) AND (SIZEOF (QUERY (u <* guac.units | 'CONFIG_CONTROL_DESIGN.SOLID_ANGLE_UNIT' IN TYPEOF (u))) = 1 )))) = 0;
END_RULE; (*

*) RULE subtype_mandatory_action FOR (action); WHERE
WR1:	SIZEOF (QUERY (act <* action | NOT ('CONFIG_CONTROL_DESIGN.DIRECTED_ACTION' IN TYPEOF (act)))) = 0;
END_RULE; (*

*) RULE subtype_mandatory_product_definition_formation FOR (product_definition_formation); WHERE
WR1:	SIZEOF (QUERY (pdf <* product_definition_formation | NOT ('CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_FORMATION_WITH_SPECIFIED_SOURCE' IN TYPEOF(pdf)))) = 0;
END_RULE; (*

*) RULE dependent_instantiable_date FOR (date); WHERE
WR1:	SIZEOF (QUERY (dt <* date | NOT (SIZEOF (USEDIN (dt, ' ')) >= 1 ))) = 0;
END_RULE; (*

*) RULE dependent_instantiable_shape_representation FOR (shape_representation); WHERE
WR1:	SIZEOF (QUERY (sr <* shape_representation | NOT (SIZEOF (USEDIN (sr, ' ')) >= 1 ))) = 0;
END_RULE ; (*

*) RULE dependent_instantiable_named_unit FOR (named_unit); WHERE
WR1:	SIZEOF (QUERY (nu <* named_unit | NOT (SIZEOF (USEDIN (nu, ' ')) >= 1))) = 0;
END_RULE; (*

*) RULE dependent_instantiable_representation_item FOR (representation_item); WHERE
WR1:	SIZEOF (QUERY (ri <* representation_item | NOT (SIZEOF (USEDIN (ri, ' ')) >= 1 ))) = 0;
END_RULE; (*

*) RULE dependent_instantiable_date_time_role FOR (date_time_role); WHERE
WR1:	SIZEOF (QUERY (dtr <* date_time_role | NOT (SIZEOF (USEDIN (dtr, ' ' )) >= 1 ))) = 0;
END_RULE; (*

*) RULE dependent_instantiable_person_and_organization_role FOR (person_and_organization_role); WHERE
WR1:	SIZEOF (QUERY (poar <* person_and_organization_role | NOT (SIZEOF (USEDIN (poar, ' ' )) >= 1 ))) = 0;
END_RULE; (*

*) RULE dependent_instantiable_action_directive FOR (action_directive) ; WHERE
WR1:	SIZEOF (QUERY (ad <* action_directive | NOT (SIZEOF (USEDIN (ad, ' ' )) >= 1 ))) = 0;
END_RULE ; (*

*) RULE dependent_instantiable_security_classification_level FOR (security_classification_level) ; WHERE
WR1:	SIZEOF (QUERY (scl <* security_classification_level | NOT (SIZEOF (USEDIN (scl, ' ' )) >= 1 ))) = 0;
END_RULE ; (*

*) RULE dependent_instantiable_approval_status FOR (approval_status); WHERE
WR1:	SIZEOF (QUERY (ast < * approval_status | NOT (SIZEOF (USEDIN (ast, ' ' )) >= 1 ))) = 0;
END_RULE ; (*

*) RULE dependent_instantiable_document_type FOR (document_type); WHERE
WR1:	SIZEOF (QUERY (dt <* document_type | NOT (SIZEOF (USEDIN (dt, ' ' )) >= 1 ))) = 0;
END_RULE ; (*

*) RULE dependent_instantiable_contract_type FOR (contract_type) ; WHERE
WR1:	SIZEOF (QUERY (ct <* contract_type | NOT (SIZEOF (USEDIN (ct, ' ' )) >= 1 ))) = 0;
END_RULE ; (*

*) RULE dependent_instantiable_certification_type FOR (certification_type); WHERE
WR1:	SIZEOF (QUERY (ct <* certification_type | NOT (SIZEOF (USEDIN (ct, ' ' )) >= 1 ))) = 0;
END_RULE ; (*

*) RULE product_concept_requires_configuration_item FOR (product_concept, configuration_item) ; WHERE
WR1:	SIZEOF (QUERY (pc <* product_concept | NOT (SIZEOF (QUERY (ci <* configuration_item | pc :=: ci.item_concept )) >= 1 ))) = 0;
END_RULE ; (*

*) RULE configuration_item_requires_person_organization FOR (configuration_item, cc_design_person_and_organization_assignment) ; WHERE
WR1:	SIZEOF (QUERY (ci <* configuration_item | NOT (SIZEOF (QUERY (ccdpoa <* cc_design_person_and_organization_assigninent | ci IN ccdpoa.items )) = 1 ))) = 0;
END_RULE ; (*

* ) RULE subtype_mandatory_effectivity FOR (effectivity); WHERE
WR1:	SIZEOF (QUERY (eff <* effectivity | NOT ((SIZEOF (['CONFIG_CONTROL_DESIGN.SERIAL_NUMBERED_EFFECTIVITY', 'CONFIG_CONTROL_DESIGN.LOT_EFFECTIVITY' , 'CONFIG_CONTROL_DESIGN.DATED_EFFECTIVITY'] * TYPEOF (eff) ) = 1 ) AND ( 'CONFIG_CONTROL_DESIGN.CONFIGURATION_EFFECTIVITY' IN TYPEOF (eff))))) = 0;
END_RULE ; (*

*) RULE effectivity_requires_approval FOR (effectivity, cc_design_approval) ; WHERE
WR1:	SIZEOF (QUERY (eff <* effectivity | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | eff IN ccda. items )) = 1 ))) = 0;
END_RULE ; (*

*) RULE configuration_item_requires_approval FOR (configuration_item, cc_design_approval) ; WHERE
WR1:	SIZEOF (QUERY (ci <* configuration_item | NOT (SIZEOF (QUERY (ccda <* cc_design_approval | ci IN ccda.items )) = 1 ))) = 0;
END_RULE ; (*

*) RULE coordinated_assembly_and_shape FOR (next_assembly_usage_occurrence); WHERE
WR1:	SIZEOF (QUERY (nauo <* next_assembly_usage_occurrence | NOT assembly_shape_is_defined (nauo, 'CONFIG_CONTROL_DESIGN')))) = 0;
END_RULE; (*

*) RULE subtype_mandatory_product_definition_usage FOR (product_definition_usage); WHERE
WR1:	SIZEOF (QUERY (pdu <* product_definition_usage | NOT ('CONFIG_CONTROL_DESIGN.' + 'ASSEMBLY_COMPONENT_USAGE' IN TYPEOF(pdu)))) = 0;
END_RULE; (*

*) RULE acu_requires_security_classification FOR (assembly_component_usage, cc_design_security_classification); WHERE
WR1:	SIZEOF (QUERY (acu <* assembly_component_usage | NOT (SIZEOF (QUERY (ccdsc <* cc_design_security_classification | acu IN ccdsc.items )) = 1 ))) = 0;
END_RULE; (*

*) RULE geometric_representation_item_3d FOR (geometric_representation_item); WHERE
WR1:	SIZEOF (QUERY (gri <* geometric_representation_item | NOT ((dimension_of (gri) = 3) OR (SIZEOF (QUERY (ur <* using_representations (gri) | 'CONFIG_CONTROL_DESIGN.DEFINITIONAL_REPRESENTATION' IN TYPEOF (ur))) > 0 )))) = 0;
END_RULE; (*

*) RULE dependent_instantiable_parametric_representation_context FOR (parametric_representation_context); WHERE
WR1:	SIZEOF (QUERY (prc <* parametric_representation_context | NOT (SIZEOF (USEDIN (prc, ' ' )) >= 1 ))) = 0;
END_RULE; (*

*) RULE subtype_mandatory_shape_representation FOR (shape_representation); WHERE
WR1:	SIZEOF (QUERY (sr <* shape_representation | NOT ((SIZEOF ([ ' CONFIG_CONTROL_DESIGN.' + 'ADVANCED_BREP_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.FACETED_BREP_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.MANIFOLD_SURFACE_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.EDGE_BASED_WIREFRAME_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.' + 'GEOMETRICALLY_BOUNDED_SURFACE_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.' + 'GEOMETRICALLY_BOUNDED_WIREFRAME_SHAPE_REPRESENTATION'] * TYPEOF (sr)) = 1) OR (SIZEOF (QUERY (it <* sr\representation.items | NOT ('CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D' IN TYPEOF (it)))) = 0) OR (SIZEOF (QUERY (sdr <* QUERY (pdr <* USEDIN (sr, 'CONFIG_CONTROL_DESIGN.PROPERTY_DEFINITION_REPRESENTATION.' + 'USED_REPRESENTATION') | 'CONFIG_CONTROL_DESIGN.SHAPE_DEFINITION_REPRESENTATION' IN TYPEOF (pdr)) | NOT (SIZEOF (['CONFIG_CONTROL_DESIGN.SHAPE_ASPECT', 'CONFIG_CONTROL_DESIGN.SHAPE_ASPECT_RELATIONSHIP'] * TYPEOF (sdr.definition.definition)) = 1 ))) = 0 )))) = 0;
END_RULE; (*

*) RULE subtype_mandatory_representation FOR (representation); WHERE
WR1:	SIZEOF (QUERY (rep <* representation | NOT ('CONFIG_CONTROL_DESIGN.SHAPE_REPRESENTATION' IN TYPEOF (rep)))) = 0;
END_RULE; (*

*) RULE subtype_mandatory_representation_context FOR (representation_context); WHERE
WR1:	SIZEOF (QUERY (rep_cntxt <* representation_context | NOT ('CONFIG_CONTROL_DESIGN.GEOMETRIC_REPRESENTATION_CONTEXT' IN TYPEOF (rep_cntxt)))) = 0;
END_RULE; (*

*) RULE no_shape_for_make_from FOR (design_make_from_relationship); WHERE
WR1:	SIZEOF (QUERY (dmfr <* design_make_from_relationship | NOT (SIZEOF (QUERY (pd <* USEDIN (dmfr, 'CONFIG_CONTROL_DESIGN.' + 'PROPERTY_DEFINITION.DEFINITION') | 'CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION_SHAPE' IN TYPEOF (pd))) = 0 ))) = 0;
END_RULE; (*

*) RULE no_shape_for_supplied_part FOR (supplied_part_relationship); WHERE
WR1:	SIZEOF (QUERY (spr <* supplied_part_relationship | NOT (SIZEOF (QUERY (pd <* USEDIN (spr, 'CONFIG_CONTROL_DESIGN.' + 'PROPERTY_DEFINITION.DEFINITION') | 'CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION_SHAPE' IN TYPEOF (pd))) = 0))) = 0;
END_RULE; (*

*) RULE approval_date_time_constraints FOR (approval_date_time) ; WHERE
WR1:	SIZEOF (QUERY (adt <* approval_date_time | NOT (SIZEOF (TYPEOF(adt.date_time) * [ 'CONFIG_CONTROL_DESIGN.DATE_AND_TIME' ]) = 1 ))) =0 ;
END_RULE ; (*

*) RULE approval_person_organization_constraints FOR (approval_person_organization) ; WHERE
WR1:	SIZEOF (QUERY (apo <* approval_person_organization | NOT (SIZEOF (TYPEOF (apo.person_organization) * [ 'CONFIG_CONTROL_DESIGN.PERSON_AND_ORGANIZATION' ]) = 1 ))) =0 ;
END_RULE ; (*

*) FUNCTION unique_version_change_order (c : action) : BOOLEAN; LOCAL ords : action_directive := c\directed_action.directive; assign : SET OF change_request := [ ]; versions : SET OF product_definition_formation := [ ]; END_LOCAL; - - определяет набор объектов change_request, заданных для объектов - - versioned_action_request, объединенных данным объектом action_directive REPEAT i := 1 TO SIZEOF(ords.requests); assign := assign + QUERY (ara <* bag_to_set (USEDIN (ords.requests[i], 'CONFIG_CONTROL_DESIGN.ACTION_REQUEST_ASSIGNMENT.' + 'ASSIGNED_ACTION_REQUEST' )) | 'CONFIG_CONTROL_DESIGN.CHANGE_REQUEST' IN TYPEOF (ara)); END_REPEAT; - - конкретизирует объекты product_definition_formation, на которые дана ссылка - - из объектов change_request REPEAT k := 1 TO SIZEOF(assign); versions := versions + assign[k].items; END_REPEAT; - - проверяет отсутствие объекта product_definition_formation, ссылающегося на - - тот же экземпляр объекта product RETURN (SIZEOF (QUERY (vers <* versions | NOT (SIZEOF (QUERY (other_vers <* versions - vers | vers.of_product :=: other_vers.of_product)) = 0 ))) = 0); END_FUNCTION; (*

*) FUNCTION cc_design_person_and_organization_correlation (e : cc_design_person_and_organization_assignment ) : BOOLEAN; LOCAL po_role : STRING; END_LOCAL; po_role := e\person_and_organization_assignment.role.name; CASE po_role OF
'request_recipient'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF(['CONFIG_CONTROL_DESIGN.' + 'CHANGE_REQUEST', 'CONFIG_CONTROL_DESIGN.' + 'START_REQUEST '] * TYPEOF (x) ) = 1 )) THEN RETURN (FALSE); END_IF;
'initiator'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF(['CONFIG_CONTROL_DESIGN.' + 'CHANGE_REQUEST', 'CONFIG_CONTROL_DESIGN.' + 'START_REQUEST', 'CONFIG_CONTROL_DESIGN.' + 'START_WORK', 'CONFIG_CONTROL_DESIGN.' + 'CHANGE' ] * TYPEOF (x) ) = 1 )) THEN RETURN (FALSE); END_IF;
'creator'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF ([ 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_FORMATION', 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION'] * TYPEOF (x) ) = 1 )) THEN RETURN (FALSE); END_IF;
'part_supplier'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_FORMATION' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'design_supplier'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_FORMATION' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'design_owner'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.PRODUCT' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'configuration_manager'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'CONFIGURATION_ITEM' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'contractor'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.CONTRACT' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'classification_officer'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'SECURITY_CLASSIFICATION' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
OTHERWISE : RETURN (TRUE); END_CASE; RETURN (TRUE); END_FUNCTION; (*

*) FUNCTION cc_design_date_time_correlation (e : cc_design_date_and_time_assignment ) : BOOLEAN; LOCAL dt_role : STRING; END_LOCAL; dt_role := e\date_and_time_assignment.role.name; CASE dt_role OF
'creation_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'request_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF ( ['CONFIG_CONTROL_DESIGN.CHANGE_REQUEST', 'CONFIG_CONTROL_DESIGN.START_REQUEST'] * TYPEOF (x) ) = 1 )) THEN RETURN (FALSE); END_IF;
'release_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF ( [ 'CONFIG_CONTROL_DESIGN.CHANGE' + 'CONFIG_CONTROL_DESIGN.START_WORK'] * TYPEOF (x) ) = 1 )) THEN RETURN (FALSE); END_IF;
'start_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF ( [ 'CONFIG_CONTROL_DESIGN.CHANGE' + 'CONFIG_CONTROL_DESIGN.START_WORK'] * TYPEOF (x) ) = 1 )) THEN RETURN (FALSE); END_IF;
'sign_off_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'APPROVAL_PERSON_ORGANIZATION' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'contract_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.CONTRACT' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'certification_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.CERTIFICATION' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'classification_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'SECURITY_CLASSIFICATION' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
'declassification_date'	: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'SECURITY_CLASSIFICATION' IN TYPEOF (x) )) THEN RETURN (FALSE); END_IF;
OTHERWISE : RETURN (TRUE); END_CASE; RETURN (TRUE); END_FUNCTION; (*

*) FUNCTION assembly_shape_is_defined ( assy: next_assembly_usage_occurrence ; schema : STRING ) : BOOLEAN; LOCAL
srr_set	: SET OF shape_representation_relationship := [];
i	: INTEGER ;
j	: INTEGER ;
sdr_set	: SET OF shape_definition_representation : = [ ];
prl_set	: SET OF property_definition := [ ];
pdrel_set	: SET OF product_definition_relationship := [ ];
pr2_set	: SET OF property_definition := [ ];
END_LOCAL ; prl_set := bag_to_set (USEDIN (assy.related_product_definition, schema + '.PROPERTY_DEFINITION.DEFINITION' )) ; REPEAT i := 1 TO HIINDEX (prl_set) BY 1; sdr_set := sdr_set + QUERY ( pdr <* USEDIN (prl_set[i], schema + '.PROPERTY_DEFINITION_REPRESENTATION.DEFINITION') | ((schema + '.SHAPE_DEFINITION_REPRESENTATION') IN TYPEOF (pdr) )); END_REPEAT; pdrel_set := bag_to_set (USEDIN (assy.related_product_definition, schema + '.PRODUCT_DEFINITION_RELATIONSHIP.' + 'RELATED_PRODUCT_DEFINITION' )) ; REPEAT j := 1 TO HIINDEX (pdrel_set) BY 1; pr2_set := pr2_set + USEDIN (pdrel_set [j], schema + '.PROPERTY_DEFINITION.DEFINITION' ) ; END_REPEAT ; REPEAT i := 1 TO HIINDEX (pr2_set) BY 1; sdr_set := sdr_set + QUERY ( pdr <* USEDIN (pr2_set[i], schema + '.PROPERTY_DEFINITION_REPRESENTATION.DEFINITION') | ((schema + '.SHAPE_DEFINITION_REPRESENTATION') IN TYPEOF(pdr) )); END_REPEAT ; IF SIZEOF (sdr_set) > 0 THEN REPEAT i := 1 TO HIINDEX (sdr_set) BY 1; srr_set : = QUERY ( rr <* bag_to_set (USEDIN (sdr_set [i]\ property_definition_representation.used_representation, schema + '.REPRESENTATION_RELATIONSHIP.REP_2' )) | ((schema + '.SHAPE_REPRESENTATION_RELATIONSHIP' ) IN TYPEOF (rr) )); IF SIZEOF (srr_set) > 0 THEN REPEAT j : = 1 TO HIINDEX (srr_set) BY 1; IF SIZEOF (QUERY ( pdr <* bag_to_set (USEDIN (srr_set[j]\ representation_relationship.rep_l, schema + '.PROPERTY_DEFINITION_REPRESENTATION.USED_REPRESENTATION')) | ((schema + '.SHAPE_DEFINITION_REPRESENTATION') IN TYPEOF ( pdr)) ) * QUERY ( pdr <* bag_to_set (USEDIN (assy. relating_product_definition, schema + '.PROPERTY_DEFINITION_REPRESENTATION.DEFINITION')) | (( schema + '.SHAPE_DEFINITION_REPRESENTATION') IN TYPEOF (pdr)) )) >= 1 THEN
IF SIZEOF (QUERY ( cdsr <* USEDIN (srr_set[j], schema + '.CONTEXT_DEPENDENT_SHAPE_REPRESENTATION.' + 'REPRESENTATION_RELATION') | (NOT (cdsr\ context_dependent_shape_representation. represented_product_relation\property_definition. definition : = : assy)) )) 0 THEN RETURN (FALSE); END_IF ; END_IF ; END_REPEAT ; END_IF ; END_REPEAT ; END_IF; RETURN (TRUE) ; END_FUNCTION; - - assembly_shape_is_defined (*

Подтип объекта shape_representation	Класс
	2	3	4	5	6
geometrically_bounded_surface_shape_representation	X
geometrically_bounded_wireframe_shape_representation	X
edge_based_wireframe_shape_representation		X
shell_based_wireframe_shape_representation		X
manifold_surface_shape_representation			X
faceted_brep_shape_representation				X
advanced_brep_shape_representation					X

*) SCHEMA config_control_design; CONSTANT dummy_gri : geometric_representation_item := representation_item(' ') | | geometric_representation_item ( ) ; dummy_tri : topological_representation_item := representation_item(' ') | | topological_representation_item( ); END_CONSTANT ; TYPE ahead_or behind = ENUMERATION OF (ahead, behind) ; END_TYPE; - - ahead_or_behind TYPE approved_item = SELECT (product_definition_formation, product_definition, configuration_effectivity, configuration_item, security_classification, change_request, change, start_request, start_work, certification, contract) ; END_TYPE; - - approved_item TYPE area_measure = REAL; END_TYPE; - - area_measure TYPE axis2_placement = SELECT (axis2_placement_2d, axis2_placement_3d) ; END_TYPE; - - axis2_placement TYPE b_spline_curve_form = ENUMERATION OF (polyline_form, circular_arc,
elliptic_arc, parabolic_arc, hyperbolic_arc, unspecified) ; END_TYPE; - - b_spline_curve_form TYPE b_spline_surface_form = ENUMERATION OF (plane_surf, cylindrical_surf, conical_surf, spherical_surf, toroidal_surf, surf_of_revolution, ruled_surf, generalised_cone, quadric_surf, surf_of_linear_extrusion, unspecified) ; END_TYPE; - - b_spline_surface_form TYPE boolean_operand = SELECT (solid_model) ; END_TYPE; - - boolean_operand TYPE certified_item = SELECT (supplied_part_relationship) ; END_TYPE; - - certified_item TYPE change_request_item = SELECT (product_definition_formation) ; END_TYPE; - - change_request_item TYPE characterized_definition = SELECT (characterized_product_definition, shape_definition) ; END_TYPE; - - characterized_definition
TYPE characterized_product_definition = SELECT (product_definition, product_definition_relationship) ; END_TYPE; - - characterized_product_definition TYPE classified_item = SELECT (product_definition_formation, assembly_component_usage) ; END_TYPE; - - classified_item TYPE context_dependent_measure = REAL; END_TYPE; - - context_dependent_measure TYPE contracted_item = SELECT (product_definition_formation) ; END_TYPE; - - contracted_item TYPE count_measure = NUMBER; END_TYPE; - - count_measure TYPE curve_on_surface = SELECT (pcurve, surface_curve, composite_curve_on_surface) ; END_TYPE; - - curve_on_surface TYPE date_time_item = SELECT (product_definition, change_request, start_request, change, start_work, approval_person_organization, contract, security_classification, certification) ; END_TYPE; - - date_time_item
TYPE date_time_select = SELECT (date, local_time, date_and_time) ; END_TYPE; - - date_time_select TYPE day_in_month_number = INTEGER; END_TYPE; - - day_in_month_number TYPE day_in_week_number = INTEGER; WHERE wr1: ((1 <= SELF) AND (SELF <= 7)); END_TYPE; - - day_in_week_number TYPE day_in_year_number = INTEGER; END_TYPE; - - day_in_year_number TYPE descriptive_measure = STRING; END TYPE; - - descriptive_measure TYPE dimension_count = INTEGER; WHERE wr1: (SELF > 0); END_TYPE; - - dimension_count TYPE founded_item_select = SELECT (founded_item, representation_item) ; END_TYPE; - - founded_item_select TYPE geometric_set_select = SELECT (point, curve, surface) ; END_TYPE; - - geometric_set_select TYPE hour_in_day = INTEGER; WHERE
wr1: ((0 <= SELF) AND (SELF < 24)); END_TYPE; - - hour_in_day TYPE identifier = STRING; END_TYPE; - - identifier TYPE knot_type = ENUMERATION OF (uniform_knots, unspecified, quasi_uniform_knots, piecewise_bezier_knots) ; END_TYPE; - - knot_type TYPE label = STRING; END_TYPE; - - label TYPE length_measure = REAL; END_TYPE; - - length_measure TYPE list_of_reversible_topology_item = LIST [0:?] OF reversible_topology_item; END_TYPE; - - list_of_reversible_topology_item TYPE mass_measure = REAL; END_TYPE; - - mass_measure TYPE measure_value = SELECT (length_measure, mass_measure, plane_angle_measure, solid_angle_measure, area_measure, volume_measure, parameter_value, context_dependent_measure, descriptive_measure, positive_length_measure,
positive_plane_angle_measure, count_measure) ; END_TYPE; - - measure_value TYPE minute_in_hour = INTEGER; WHERE wr1: ((0 <= SELF) AND (SELF <= 59)); END_TYPE; - - minute_in_hour TYPE month_in_year_number = INTEGER; WHERE wr1: ((1 <= SELF) AND (SELF <= 12)); END_TYPE; - - month_in_year_number TYPE parameter_value = REAL; END_TYPE; - - parameter_value TYPE pcurve_or_surface = SELECT (pcurve, surface) ; END_TYPE; - - pcurve_or_surface TYPE person_organization_item = SELECT (change, start_work, change_request, start_request, configuration_item, product, product_definition_formation, product_definition, contract, security_classification) ; END_TYPE; - - person_organization_item
TYPE person_organization_select = SELECT (person, organization, person_and_organization) ; END_TYPE; - - person_organization_select TYPE plane_angle_measure = REAL; END_TYPE; - - plane_angle_measure TYPE positive_length_measure = length_measure; WHERE wr1: (SELF > 0); END_TYPE; - - positive_length_measure TYPE positive_plane_angle_measure = plane_angle_measure; WHERE wr1: (SELF > 0); END_TYPE; - - positive_plane_angle_measure TYPE preferred_surface_curve_representation = ENUMERATION OF (curve_3d, pcurve_s1, pcurve_s2) ; END_TYPE; - - preferred_surface_curve_representation TYPE reversible_topology = SELECT (reversible_topology_item, list_of_reversible_topology_item, set_of_reversible_topology_item) ; END_TYPE; - - reversible_topology TYPE reversible_topology_item = SELECT (edge, path, face, face_bound, closed_shell, open_shell) ; END_TYPE; - - reversible_topology_item
TYPE second_in_minute = REAL; WHERE wr1: ((0 <= SELF) AND (SELF < 60)); END_TYPE; - - second_in_minute TYPE set_of_reversible_topology_item = SET [0:?] OF reversible_topology_item; END_TYPE; - - set_of_reversible_topology_item TYPE shape_definition = SELECT (product_definition_shape, shape_aspect, shape_aspect_relationship) ; END_TYPE; - - shape_definition TYPE shell = SELECT (vertex_shell, wire_shell, open_shell, closed_shell) ; END_TYPE; - - shell TYPE si_prefix = ENUMERATION OF (exa, peta, tera, giga, mega, kilo, hecto, deca, deci, centi, milli, micro, nano, pico,
femto, atto) ; END_TYPE; - - si_prefix TYPE si_unit_name = ENUMERATION OF (metre, gram, second, ampere, kelvin, mole, candela, radian, steradian, hertz, newton, pascal, joule, watt, coulomb, volt, farad, ohm, siemens, weber, tesla, henry, degree_celsius, lumen, lux, becquerel, gray, sievert) ; END_TYPE; - - si_unit_name
TYPE solid_angle_measure = REAL; END_TYPE; - - solid_angle_measure TYPE source = ENUMERATION OF (made, bought, not_known) ; END_TYPE; - - source TYPE specified_item = SELECT (product_definition, shape_aspect); END_TYPE; - - specified_item TYPE start_request_item = SELECT (product_definition_formation) ; END_TYPE; - - start_request_item TYPE supported_item = SELECT (action_directive, action, action_method) ; END_TYPE; - - supported_item TYPE surface_model = SELECT (shell_based_surface_model) ; END_TYPE; - - surface_model TYPE text = STRING; END_TYPE; - - text TYPE transformation = SELECT (item_defined_transformation, functionally_defined_transformation) ; END_TYPE; - - transformation TYPE transition_code = ENUMERATION OF (discontinuous, continuous, cont_same_gradient, cont_same_gradient_same_curvature) ; END_TYPE; - - transition_code
TYPE trimming_preference = ENUMERATION OF (cartesian, parameter, unspecified) ; END_TYPE; - - trimming_preference TYPE trimming_select = SELECT (cartesian_point, parameter_value) ; END_TYPE; - - trimming_select TYPE unit = SELECT (named_unit); END_TYPE; - - unit TYPE vector_or_direction = SELECT (vector, direction) ; END_TYPE; - - vector_or_direction TYPE volume_measure = REAL; END_TYPE; - - volume_measure TYPE week_in_year_number = INTEGER; WHERE wr1: ((1 <= SELF) AND (SELF <= 53)); END_TYPE; - - week_in_year_number TYPE wireframe_model = SELECT (shell_based_wireframe_model, edge_based_wireframe_model) ; END_TYPE; - - wireframe_model TYPE work_item = SELECT (product_definition_formation) ; END_TYPE; - - work_item
TYPE year_number = INTEGER; END_TYPE; - - year_number ENTITY action;
name			: label;
description			: text;
chosen_method			: action_method;
END_ENTITY; - - action ENTITY action_assignment ABSTRACT SUPERTYPE; assigned_action : action; END_ENTITY; - - action_assignment ENTITY action_directive;
name		: label;
description		: text;
analysis		: text;
comment		: text;
requests		: SET [1:?] OF versioned_action_request;
END_ENTITY; - - action_directive ENTITY action_method;
name			: label;
description			: text;
consequence			: text;
purpose			: text;
END_ENTITY; - - action_method ENTITY action_request_assignment ABSTRACT SUPERTYPE; assigned_action_request : versioned_action_request; END_ENTITY; - - action_request_assignment ENTITY action_request_solution;
method		: action_method;
request		: versioned_action_request;
END_ENTITY; - - action_request_solution ENTITY action_request_status;
status			: label;
assigned_request			: versioned_action_request;
END_ENTITY; - - action_reguest_status ENTITY action_status;
status			: label;
assigned_action			: executed_action;
END_ENTITY; - - action_status ENTITY address;
internal_location				: OPTIONAL label;
street_number				: OPTIONAL label;
street				: OPTIONAL label;
postal_box				: OPTIONAL label;
town				: OPTIONAL label;
region				: OPTIONAL label;
postal_code				: OPTIONAL label;
country				: OPTIONAL label;
facsimile_number				: OPTIONAL label;
telephone_number				: OPTIONAL label;
electronic_mail_address				: OPTIONAL label;
telex_number				: OPTIONAL label;
WHERE
wr1: (EXISTS (internal_location) OR EXISTS (street_number) OR EXISTS ( street) OR EXISTS (postal_box) OR EXISTS (town) OR EXISTS ( region) OR EXISTS (postal_code) OR EXISTS (country) OR EXISTS ( facsimile_number) OR EXISTS (telephone_number) OR EXISTS ( electronic_mail_address) OR EXISTS(telex_number)); END_ENTITY; - - address ENTITY advanced_brep_shape_representation SUBTYPE OF (shape_representation); WHERE wr1: (SIZEOF(QUERY ( it <* SELF.items | (NOT (SIZEOF([ 'CONFIG_CONTROL_DESIGN.MANIFOLD_SOLID_BREP ', 'CONFIG_CONTROL_DESIGN.FACETED_BREP', 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM', 'CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D'] * TYPEOF(it)) = 1)) )) = 0); wr2: (SIZEOF(QUERY ( it <* SELF. items | (SIZEOF([ 'CONFIG_CONTROL_DESIGN.MANIFOLD_SOLID_BREP', 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM'] * TYPEOF(it)) = 1) )) > 0); wr3: (SIZEOF (QUERY ( msb <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.MANIFOLD_SOLID_BREP' IN TYPEOF(it)) ) | (NOT (SIZEOF (QUERY ( csh <* msb_shells (msb) | (NOT ( SIZEOF (QUERY ( fcs <* csh\connected_face_set.cfs_faces | ( NOT ( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF(fcs))) )) = 0)) )) = 0)) )) = 0); wr4: (SIZEOF ( QUERY ( msb <* QUERY ( it <* items | ( 'CONFIG_CONTROL_DESIGN.MANIFOLD_SOLID_BREP' IN TYPEOF(it)) ) | ('CONFIG_CONTROL_DESIGN.ORIENTED_CLOSED_SHELL' IN TYPEOF ( msb\manifold_solid_brep.outer)) )) = 0); wr5: (SIZEOF (QUERY ( brv <* QUERY ( it <* items | ( 'CONFIG_CONTROL_DESIGN.BREP_WITH_VOIDS' IN TYPEOF(it)) ) | ( NOT (SIZEOF (QUERY ( csh <* brv\brep_with_voids.voids | csh\ oriented_closed_shell.orientation )) = 0)) )) = 0); wr6: (SIZEOF (QUERY ( mi <* QUERY ( it <* items | ( 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' IN TYPEOF(it)) ) | (NOT ('CONFIG_CONTROL_DESIGN.ADVANCED_BREP_SHAPE_REPRESENTATION' IN TYPEOF (mi\mapped_item.mapping_source.
mapped_representation))) )) = 0); END_ENTITY; - - advanced_brep_shape_representation ENTITY advanced_face SUBTYPE OF ( face_surface); WHERE wr1 : ( SIZEOF ( [ 'CONFIG_CONTROL_DESIGN.ELEMENTARY_SURFACE' , 'CONFIG_CONTROL_DESIGN.B_SPLINE_SURFACE', 'CONFIG_CONTROL_DESIGN.SWEPT_SURFACE'] * TYPEOF ( face_geometry)) = 1) ; wr2 : (SIZEOF (QUERY ( elp_fbnds <* QUERY ( bnds <* bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds.bound)) ) | (NOT (SIZEOF (QUERY ( oe <* elp_fbnds.bound\path. edge_list | (NOT ('CONFIG_CONTROL_DESIGN.EDGE_CURVE' IN TYPEOF(oe\oriented_edge.edge_element))) )) = 0)) )) = 0); wr3 : (SIZEOF (QUERY ( elp_fbnds <* QUERY ( bnds <* bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds. bound)) ) | (NOT (SIZEOF (QUERY ( oe <* elp_fbnds.bound\path. edge_list | (NOT (SIZEOF(['CONFIG_CONTROL_DESIGN.LINE', 'CONFIG_CONTROL_DESIGN.CONIC', 'CONFIG_CONTROL_DESIGN.POLYLINE' , 'CONFIG_CONTROL_DESIGN.SURFACE_CURVE' , 'CONFIG_CONTROL_DESIGN.B_SPLINE_CURVE'] * TYPEOF(oe. edge_element\edge_curve.edge_geometry)) = 1)) )) = 0)) )) = 0) ; wr4 : (SIZEOF (QUERY ( elp_fbnds <* QUERY ( bnds <* bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds.bound)) ) | (NOT (SIZEOF (QUERY ( oe <* elp_fbnds.bound\path. edge_list | (NOT (('CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF(oe\edge.edge_start)) AND ( 'CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' IN TYPEOF(oe\edge. edge_start\vertex_point.vertex_geometry)) AND ( 'CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF(oe\edge. edge_end)) AND ('CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' IN TYPEOF(oe\edge.edge_end\vertex_point.vertex_geometry)))) )) = 0)) )) = 0 ); wr5 : (SIZEOF (QUERY ( elp_fbnds <* QUERY ( bnds <* bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds.bound)) )
| ('CONFIG_CONTROL_DESIGN.ORIENTED_PATH' IN TYPEOF( elp_fbnds. bound)) )) = 0); wr6 : ((NOT ('CONFIG_CONTROL_DESIGN.SWEPT_SURFACE' IN TYPEOF( face_geometry))) OR (SIZEOF(['CONFIG_CONTROL_DESIGN.LINE', 'CONFIG_CONTROL_DESIGN.CONIC', 'CONFIG_CONTROL_DESIGN.POLYLINE' , 'CONFIG_CONTROL_DESIGN.B_SPLINE_CURVE' ] * TYPEOF ( face_geometry\swept_surface.swept_curve)) = 1)); wr7 : (SIZEOF (QUERY ( vlp_fbnds <* QUERY ( bnds <* bounds | ( 'CONFIG_CONTROL_DESIGN.VERTEX_LOOP' IN TYPEOF (bnds. bound)) ) | (NOT (('CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF ( vlp_fbnds\face_bound.bound\vertex_loop.loop_vertex)) AND ( 'CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' IN TYPEOF (vlp_fbnds \face_bound.bound\vertex_loop.loop_vertex\vertex_point. vertex_geometry)))) )) = 0); wr8 : (SIZEOF (QUERY ( bnd <* bounds | (NOT (SIZEOF ([ 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' , 'CONFIG_CONTROL_DESIGN.VERTEX_LOOP'] * TYPEOF(bnd.bound)) = 1)) )) = 0) ; wr9 : (SIZEOF (QUERY ( elp_fbnds <* QUERY ( bnds <* bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds.bound)) ) | (NOT (SIZEOF (QUERY ( oe <* elp_fbnds.bound\path. edge_list | (('CONFIG_CONTROL_DESIGN.SURFACE_CURVE' IN TYPEOF (oe\oriented_edge.edge_element\edge_curve. edge_geometry)) AND (NOT (SIZEOF(QUERY ( sc_ag <* oe. edge_element\edge_curve.edge_geometry\surface_curve. associated_geometry | (NOT ('CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF(sc_ag))) )) = 0))) )) = 0)) )) = 0); wr10: (((NOT ('CONFIG_CONTROL_DESIGN.SWEPT_SURFACE' IN TYPEOF( face_geometry))) OR (NOT ('CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF(face_geometry\swept_surface.swept_curve))) OR ( SIZEOF (face_geometry\swept_surface.swept_curve\polyline. points) >= 3)) AND (SIZEOF(QUERY ( elp_fbnds <* QUERY ( bnds <* bounds | ('CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds.bound)) ) | (NOT (SIZEOF(QUERY ( oe <* elp_fbnds.bound\path.edge_list | (( 'CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF(oe\oriented_edge .edge_element\edge_curve.edge_geometry)) AND (NOT (SIZEOF(
oe\oriented_edge.edge_element\edge_curve.edge_geometry\ polyline.points) >= 3))) )) = 0)) )) = 0)); END_ENTITY; - - advanced_face ENTITY alternate_product_relationship;
name		: label;
definition		: text;
alternate		: product;
base		: product;
basis		: text;
UNIQUE ur1 : alternate, base; WHERE wr1: (alternate :< >: base); END ENTITY; - - alternate_product_relationship ENTITY application_context; application : text; INVERSE context_elements : SET [1:?] OF application_context_element FOR frame_of_reference ; END_ENTITY; - - application_context ENTITY application_context_element SUPERTYPE OF (ONEOF (product_context, product_definition_context, product_concept_context)) ;
name			: label ;
frame_of_reference			: application_context;
END_ENTITY; - - application_context_element ENTITY application_protocol_definition;
status								: label ;
application_interpreted_model_schema_name								: label;
application_protocol_year								: year_number;
application								: application_context;
END_ENTITY; - - application_protocol_definition ENTITY approval;
status		: approval_status;
level		: label;
END_ENTITY; - - approval ENTITY approval_assignment ABSTRACT SUPERTYPE; assigned_approval : approval; END_ENTITY; - - approval_assignment ENTITY approval_date_time;
date_time			: date_time_select;
dated_approval			: approval;
END_ENTITY; - - approval_date_time ENTITY approval_person_organization;
person_organization					: person_organization_select;
authorized_approval					: approval;
role					: approval_role;
END_ENTITY; - - approval_person_organization ENTITY approval_relationship;
name			: label;
description			: text;
relating_approval			: approval;
related_approval			: approval;
END_ENTITY; - - approval_relationship ENTITY approval_role; role : label; END_ENTITY; - - approval_role ENTITY approval_status; name : label; END_ENTITY; - - approval_status ENTITY area_measure_with_unit SUBTYPE OF (measure_with_unit) ; WHERE wr1: ('CONFIG_CONTROL_DESIGN.AREA_UNIT' IN TYPEOF(SELF\ measure_with_unit.unit_component)) ; END_ENTITY; - - area_measure_with_unit ENTITY area_unit SUBTYPE OF (named_unit); WHERE wr1: ((SELF\named_unit.dimensions.length_exponent = 2) AND (SELF\ named_unit.dimensions.mass_exponent = 0) AND (SELF\ named_unit.dimensions.time_exponent = 0) AND (SELF\ named_unit.dimensions.electric_current_exponent = 0) AND ( SELF\named_unit.dimensions. thermodynamic_temperature_exponent = 0) AND (SELF\named_unit .dimensions.amount_of_substance_exponent = 0) AND (SELF\ named_unit.dimensions.luminous_intensity_exponent = 0)) ; END_ENTITY; - - area_unit ENTITY assembly_component_usage SUPERTYPE OF (ONEOF (next_assembly_usage_occurrence, specified_higher_usage_occurrence, promissory_usage_occurrence)) SUBTYPE OF (product_definition_usage) ; reference_designator : OPTIONAL identifier; END_ENTITY; - - assembly_component_usage ENTITY assembly_component_usage_substitute;
name		: label;
definition		: text;
base		: assembly_component_usage;
substitute		: assembly_component_usage;
UNIQUE ur1 : base, substitute; WHERE wr1: (base.relating_product_definition :=: substitute. relating_product_definition) ; wr2: (base :< >: substitute); END_ENTITY; - - assembly_component_usage_substitute ENTITY axis1_placement SUBTYPE OF (placement); axis : OPTIONAL direction; DERIVE z : direction := NVL(normalise(axis), dummy_gri | | direction ([0, 0, 1])); WHERE wr1: (SELF\geometric_representation_item.dim = 3); END_ENTITY; - - axis1_placement ENTITY axis2_placement_2d SUBTYPE OF (placement) ; ref_direction : OPTIONAL direction; DERIVE p : LIST [2:2] OF direction := build_2axes (ref_direction); WHERE wr1: (SELF\geometric_representation_item.dim = 2); END_ENTITY; - - axis2_placement_2d ENTITY axis2_placement_3d SUBTYPE OF (placement) ;
axis			: OPTIONAL direction;
ref_direction			: OPTIONAL direction;
DERIVE p : LIST [3:3] OF direction := build_axes (axis, ref_direction); WHERE wr1: (SELF\placement.location.dim = 3); wr2: ((NOT EXISTS (axis)) OR (axis.dim = 3)); wr3: ((NOT EXISTS (ref_direction)) OR (ref_direction.dim = 3)); wr4: ((NOT EXISTS(axis)) OR (NOT EXISTS(ref_direction)) OR ( cross_product(axis, ref_direction).magnitude > 0)); END_ENTITY; - - axis2_placement_3d ENTITY b_spline_curve SUPERTYPE OF (ONEOF (uniform_curve, b_spline_curve_with_knots, quasi_uniform_curve, bezier_curve) ANDOR rational_b_spline_curve) SUBTYPE OF (bounded_curve) ;
degree				: INTEGER;
control_points_list				: LIST [2:?] OF cartesian_point;
curve_form				: b_spline_curve_form;
closed_curve				: LOGICAL;
self_intersect				: LOGICAL;
DERIVE upper_index_on_control_points : INTEGER := SIZEOF( control_points_list) - 1;
control_points				: ARRAY [0: upper_index_on_control_points] OF cartesian_point := list_to_array( control_points_list, 0, upper_index_on_control_points) ;
WHERE wr1: (('CONFIG_CONTROL_DESIGN.UNIFORM_CURVE' IN TYPEOF(SELF)) OR ( 'CONFIG_CONTROL_DESIGN.QUASI_UNIFORM_CURVE' IN TYPEOF (SELF)) OR ('CONFIG_CONTROL_DESIGN.BEZIER_CURVE' IN TYPEOF (SELF)) OR ('CONFIG_CONTROL_DESIGN.B_SPLINE_CURVE_WITH_KNOTS' IN TYPEOF (SELF))) ; END_ENTITY; - - b_spline_curve ENTITY b_spline_curve_with_knots SUBTYPE OF (b_spline_curve) ;
knot_multiplicities			: LIST [2:?] OF INTEGER;
knots			: LIST [2:?] OF parameter_value;
knot_spec			: knot_type;
DERIVE
upper_index_on_knots				: INTEGER := SIZEOF (knots);
WHERE wr1: constraints_param_b_spline (degree, upper_index_on_knots , upper_index_on_control_points, knot_multiplicities, knots) ; wr2: (SIZEOF(knot_multiplicities) = upper_index_on_knots); END_ENTITY; - - b_spline_curve_with_knots ENTITY b_spline_surface SUPERTYPE OF (ONEOF (b_spline_surface_with_knots, uniform_surface, quasi_uniform_surface, bezier_surface) ANDOR rational_b_spline_surface) SUBTYPE OF (bounded_surface) ;
u_degree			: INTEGER;
v_degree			: INTEGER;
control_points_list			: LIST [2:?] OF LIST [2:?] OF cartesian_point;
surface_form			: b_spline_surface_form;
u_closed			: LOGICAL;
v_closed			: LOGICAL;
self_intersect			: LOGICAL;
DERIVE
u_upper			: INTEGER := SIZEOF(control_points_list) - 1;
v_upper			: INTEGER := SIZEOF(control_points_list[1]) - 1;
control_points			: ARRAY [0:u_upper] OF ARRAY [0:v_upper] OF cartesian_point := make_array_of_array( control_points._list, 0, u_upper, 0, v_upper) ;
WHERE wr1: (('CONFIG_CONTROL_DESIGN.UNIFORM_SURFACE' IN TYPEOF(SELF)) OR ( 'CONFIG_CONTROL_DESIGN.QUASI_UNIFORM_SURFACE' IN TYPEOF (SELF) ) OR ('CONFIG_CONTROL_DESIGN.BEZIER_SURFACE' IN TYPEOF(SELF)) OR ('CONFIG_CONTROL_DESIGN.B_SPLINE_SURFACE_WITH_KNOTS' IN TYPEOF(SELF))) ; END_ENTITY; - - b_spline_surface ENTITY b_spline_surface_with_knots SUBTYPE OF (b_spline_surface) ;
u_multiplicities			: LIST [2:?] OF INTEGER;
v_multiplicities			: LIST [2:?] OF INTEGER;
u_knots			: LIST [2:?] OF parameter_value;
v_knots			: LIST [2:?] OF parameter_value;
knot_spec			: knot_type;
DERIVE
knot_u_upper			: INTEGER := SIZEOF (u_knots);
knot_v_upper			: INTEGER := SIZEOF (v_knots);
WHERE wr1 : constraints_param_b_spline (SELF\b_spline_surface.u_degree, knot_u_upper, SELF\b_spline_surface.u_upper, u_multiplicities, u_knots) ; wr2 : constraints_param_b_spline (SELF\b_spline_surface.v_degree, knot_v_upper, SELF\b_spline_surface.v_upper, v_multiplicities , v_knots) ; wr3 : (SIZEOF(u_multiplicities) = knot_u_upper); wr4 : (SIZEOF(v_multiplicities) = knot_v_upper); END_ENTITY; - - b_spline_surface_with_knots ENTITY bezier_curve SUBTYPE OF (b_spline_curve) ; END_ENTITY; - - bezier_curve ENTITY bezier_surface SUBTYPE OF (b_spline_surface) ; END_ENTITY; - - bezier_surface ENTITY boundary_curve SUBTYPE OF ( composite_curve_on_surface) ; WHERE wr1: SELF\composite_curve.closed_curve; END_ENTITY; - - boundary_curve ENTITY bounded_curve SUPERTYPE OF (ONEOF (polyline, b_spline_curve, trimmed_curve, bounded_pcurve, bounded_surface_curve, composite_curve) ) SUBTYPE OF (curve) ; END_ENTITY; - - bounded_curve ENTITY bounded_pcurve SUBTYPE OF (pcurve, bounded_curve); WHERE wr1: ('CONFIG_CONTROL_DESIGN.BOUNDED_CURVE' IN TYPEOF(SELF\pcurve. reference_to_curve.items [1] )) ;
END_ENTITY; - - bounded_pcurve ENTITY bounded_surface SUPERTYPE OF (ONEOF (b_spline_surface, rectangular_trimmed_surface, curve_bounded_surface, rectangular_composite_surface)) SUBTYPE OF (surface); END_ENTITY; - - bounded_surface ENTITY bounded_surface_curve SUBTYPE OF (surface_curve, bounded_curve) ; WHERE wr1: ('CONFIG_CONTROL_DESIGN.BOUNDED_CURVE' IN TYPEOF(SELF\ surface_curve.curve_3d)) ; END_ENTITY; - - bounded_surface_curve ENTITY brep_with_voids SUBTYPE OF (manifold_solid_brep) ; voids : SET [1:?] OF oriented_closed_shell; END_ENTITY; - - brep_with_voids ENTITY calendar_date SUBTYPE OF (date) ;
day_component				: day_in_month_number;
month_component				: month_in_year_number;
WHERE wr1: valid_calendar_date (SELF); END_ENTITY; - - calendar_date ENTITY cartesian_point SUBTYPE OF (point) ; coordinates : LIST [1:3] OF length_measure; END_ENTITY; - - cartesian_point ENTITY cartesian_transformation_operator SUPERTYPE OF (cartesian_transformation_operator_3d) SUBTYPE OF (geometric_representation_item, functionally_defined_transformation) ;
axis1			: OPTIONAL direction;
axis2			: OPTIONAL direction;
local_origin			: cartesian_point;
scale			: OPTIONAL REAL;
DERIVE
sc1			: REAL := NVL (scale, 1);
WHERE
wr1			: (sc1 > 0);
END_ENTITY; - - cartesian_transformation_operator ENTITY cartesian_transformation_operator_3d SUBTYPE OF (cartesian_transformation_operator) ;
axis3	: OPTIONAL direction;
DERIVE
u	: LIST [3:3] OF direction := base_axis(3, SELF\ cartesian_transformation_operator.axis1, SELF\ cartesian_transformation_operator.axis2, axis3) ;
WHERE wr1: (SELF\geometric_representation_item.dim = 3); END_ENTITY; - - cartesian_transformation_operator_3d ENTITY cc_design_approval SUBTYPE OF (approval_assignment) ; items : SET [1:?] OF approved_item; END_ENTITY; - - cc_design_approval ENTITY cc_design_certification SUBTYPE OF (certification_assignment) ; items : SET [1:?] OF certified_item; END_ENTITY; - - cc_design_certification ENTITY cc_design_contract SUBTYPE OF (contract_assignment); items : SET [1:?] OF contracted_item; END_ENTITY; - - cc_design_contract ENTITY cc_design_date_and_time_assignment SUBTYPE OF (date_and_time_assignment) ; items : SET [1:?] OF date_time_item; WHERE wr1: cc_design_date_time_correlation (SELF) ; END_ENTITY; - - cc_design_date_and_time_assignment ENTITY cc_design_person_and_organization_assignment SUBTYPE OF (person_and_organization_assignment) ; items : SET [1:?] OF person_organization_item; WHERE wr1: cc_design_person_and_organization_correlation (SELF) ; END_ENTITY; - - cc_design_person_and_organization_assignment ENTITY cc_design_security_classification SUBTYPE OF (security_classification_assignment) ; items : SET [1:?] OF classified_item; END_ENTITY; - - cc_design_security_classification
ENTITY cc_design_specification_reference SUBTYPE OF (document_reference) ; items : SET [1:?] OF specified_item; END_ENTITY; - - cc_design__specification_reference ENTITY certification;
name		: label ;
purpose		: text;
kind		: certification_type;
END_ENTITY; - - certification ENTITY certification_assignment ABSTRACT SUPERTYPE; assigned_certification : certification; END_ENTITY; - - certification_assignment ENTITY certification_type; description : label; END_ENTITY; - - certification_type ENTITY change SUBTYPE OF (action_assignment); items : SET [1:?] OF work_item; END_ENTITY; - - change ENTITY change_request SUBTYPE OF (action_request_assignment) ; items : SET [1:?] OF change_request_item; END_ENTITY; - - change_request ENTITY circle SUBTYPE OF (conic) ; radius : positive_length_measure; END_ENTITY; - - circle ENTITY closed_shell SUBTYPE OF (connected_face_set) ; END_ENTITY; - - closed_shell ENTITY composite_curve SUBTYPE OF (bounded_curve) ; segments : LIST [1:?] OF composite_curve_segment;
self_intersect			: LOGICAL;
DERIVE
n_segments			: INTEGER := SIZEOF(segments);
closed_curve			: LOGICAL := segments[n_segments].transition < > discontinuous ;
WHERE wr1: (((NOT closed_curve) AND (SIZEOF(QUERY ( temp <* segments | ( temp.transition = discontinuous) )) = 1)) OR (closed_curve AND (SIZEOF(QUERY ( temp <* segments | (temp.transition = discontinuous) )) = 0))); END_ENTITY; - - composite_curve ENTITY composite_curve_on_surface SUPERTYPE OF (boundary_curve) SUBTYPE OF (composite_curve) ; DERIVE basis_surface : SET [0:2] OF surface := get_basis_surface(SELF); WHERE wr1: (SIZEOF(basis_surface) > 0); wr2: constraints_composite_curve_on_surface(SELF) ; END_ENTITY; - - composite_curve_on_surface ENTITY composite_curve_segment SUBTYPE OF (founded_item) ;
transition			: transition_code;
same_sense			: BOOLEAN;
parent_curve			: curve ;
INVERSE
using_curves			: BAG [1:?] OF composite_curve FOR segments;
WHERE wr1: ('CONFIG_CONTROL_DESIGN.BOUNDED_CURVE' IN TYPEOF (parent_curve)); END_ENTITY; - - composite_curve_segment ENTITY configuration_design;
configuration			: configuration_item;
design			: product_definition_formation;
UNIQUE ur1 : configuration, design; END_ENTITY; - - configuration_design ENTITY configuration_effectivity SUBTYPE OF (product_definition_effectivity) ; configuration : configuration_design; UNIQUE ur1 : configuration, usage, id; WHERE wr1 : ('CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION_USAGE' IN TYPEOF ( SELF\product_definition_effectivity.usage)) ; END_ENTITY; - - configuration_effectivity ENTITY configuration_item;
id			: identifier;
name			: label;
description			: OPTIONAL text;
item_concept			: product_concept;
purpose			: OPTIONAL label;
UNIQUE ur1 : id; END_ENTITY; - - configuration_item ENTITY conic SUPERTYPE OF (ONEOF (circle, ellipse, hyperbola, parabola)) SUBTYPE OF (curve); position : axis2 placement; END_ENTITY; - - conic ENTITY conical_surface SUBTYPE OF (elementary_surface) ;
radius		: length_measure;
semi_angle		: plane_angle_measure;
WHERE
wr1		: (radius >= 0);
END_ENTITY; - - conical_surface ENTITY connected_edge_set SUBTYPE OF (topological_representation_item) ; ces_edges : SET [1:?] OF edge; END_ENTITY; - - connected_edge_set ENTITY connected_face_set SUPERTYPE OF (ONEOF (closed_shell, open_shell)) SUBTYPE OF (topological_representation_item); cfs_faces : SET [1:?] OF face; END_ENTITY; - - connected_face_set ENTITY context_dependent_shape_representation;
representation_relation					: shape_representation_relationship;
represented_product_relation					: product_definition_shape;
WHERE wr1: ('CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION_RELATIONSHIP' IN TYPEOF(SELF.represented_product_relation.definition)) ; END_ENTITY; - - context_dependent_shape_representation ENTITY context_dependent_unit SUBTYPE OF (named_unit); name : label ; END_ENTITY; - - context_dependent_unit ENTITY contract;
name		: label ;
purpose		: text ;
kind		: contract_type;
END_ENTITY; - - contract ENTITY contract_assignment ABSTRACT SUPERTYPE; assigned_contract : contract ; END_ENTITY; - - contract_assignment ENTITY contract_type; description : label; END_ENTITY; - - contract_type ENTITY conversion_based_unit SUBTYPE OF (named_unit) ;
name				: label;
conversion_factor				: measure_with_unit;
END_ENTITY; - - conversion_based_unit ENTITY coordinated_universal_time_offset ;
hour_offset				: hour_in_day;
minute_offset				: OPTIONAL minute_in_hour;
sense				: ahead_or_behind;
END_ENTITY; - - coordinated_universal_time_offset ENTITY curve SUPERTYPE OF (ONEOF (line, conic, pcurve, surface_curve, offset_curve_3d, curve_replica)) SUBTYPE OF (geometric_representation_item) ; END_ENTITY; - - curve ENTITY curve_bounded_surface SUBTYPE OF (bounded_surface) ;
basis_surface				: surface;
boundaries				: SET [1:?] OF boundary_curve;
implicit_outer				: BOOLEAN;
WHERE wr1: (NOT (implicit_outer AND ( 'CONFIG_CONTROL_DESIGN.OUTER_BOUNDARY_CURVE' IN TYPEOF ( boundaries)))); wr2: ((NOT implicit_outer) OR ( 'CONFIG_CONTROL_DESIGN.BOUNDED_SURFACE' IN TYPEOF( basis_surface))) ; wr3: (SIZEOF (QUERY ( temp <* boundaries | ( 'CONFIG_CONTROL_DESIGN.OUTER_BOUNDARY_CURVE' IN TYPEOF(temp)) )) <= 1); wr4: (SIZEOF (QUERY ( temp <* boundaries | (temp\ composite_curve_on_surface.basis_surface [1] < > SELF. basis_surface) )) = 0); END_ENTITY; - - curve_bounded_surface ENTITY curve_replica SUBTYPE OF (curve) ;
parent_curve				: curve;
transformation				: cartesian_transformation_operator;
WHERE wr1: (transformation.dim = parent_curve.dim); wr2: acyclic_curve_replica (SELF, parent_curve) ; END_ENTITY; - - curve_replica ENTITY cylindrical_surface SUBTYPE OF (elementary_surface) ; radius : positive_length_measure; END_ENTITY; - - cylindrical_surface ENTITY date SUPERTYPE OF (ONEOF (calendar_date, ordinal_date, week_of_year_and_day_date)) ; year_component : year_number; END_ENTITY; - - date ENTITY date_and_time; date_component : date; time_component : local_time; END_ENTITY; - - date_and_time ENTITY date_and_time_assignment ABSTRACT SUPERTYPE;
assigned_date_and_time				: date_and_time;
role				: date_time_role;
END_ENTITY; - - date_and_time_assignment ENTITY date_time_role; name : label; END_ENTITY; - - date_time_role ENTITY dated_effectivity SUBTYPE OF (effectivity) ;
effectivity_start_date				: date_and_time;
effectivity_end_date				: OPTIONAL date_and_time;
END_ENTITY; - - dated_effectivity ENTITY definitional_representation SUBTYPE OF (representation) ; WHERE wr1: ( 'CONFIG_CONTROL_DESIGN.PARAMETRIC_REPRESENTATION_CONTEXT' IN TYPEOF(SELF\representation.context_of_items)) ; END_ENTITY; - - definitional_representation ENTITY degenerate_pcurve SUBTYPE OF (point) ;
basis_surface				: surface;
reference_to_curve				: definitional_representation;
WHERE wr1: (SIZEOF(reference_to_curve\representation.items) = 1); wr2: ('CONFIG_CONTROL_DESIGN.CURVE' IN TYPEOF(reference_to_curve\ representation.items [1])) ; wr3 : (reference_to_curve\representation.items [1]\ geometric_representation_item.dim = 2); END_ENTITY; - - degenerate_pcurve ENTITY degenerate_toroidal_surface SUBTYPE OF (toroidal_surface); select_outer : BOOLEAN; WHERE wr1: (major_radius < minor_radius); END_ENTITY; - - degenerate_toroidal_surface ENTITY design_context SUBTYPE OF (product_definition_context) ; WHERE wr1 : (SELF.life_cycle_stage = 'design'); END_ENTITY; - - design_context ENTITY design_make_from_relationship SUBTYPE OF (product_definition_relationship) ; END_ENTITY; - - design_make_from_relationship ENTITY dimensional_exponents;
length_exponent							: REAL;
mass_exponent							: REAL;
time_exponent							: REAL;
electric_current_exponent							: REAL;
thermodynamic_temperature_exponent							: REAL;
amount_of_substance_exponent							: REAL;
luminous_intensity_exponent							: REAL;
END ENTITY; - - dimensional_exponents ENTITY directed_action SUBTYPE OF (executed_action) ; directive : action_directive; END_ENTITY; - - directed_action ENTITY direction SUBTYPE OF (geometric_representation_item) ; direction_ratios : LIST [2:3] OF REAL; WHERE wr1: (SIZEOF(QUERY ( tmp <* direction_ratios | (tmp < > 0) )) > 0); END_ENTITY; - - direction ENTITY document;
id		: identifier;
name		: label;
description		: text;
kind		: document_type;
UNIQUE
ur1		: id;
END_ENTITY; - - document ENTITY document_reference ABSTRACT SUPERTYPE;
assigned_document				: document;
source				: label;
END_ENTITY; - - document_reference ENTITY document_relationship;
name			: label ;
description			: text;
relating_document			: document;
related_document			: document;
END_ENTITY; - - document_relationship ENTITY document_type; product_data_type : label; END_ENTITY; - - document_type ENTITY document_usage_constraint ;
source				: document;
subject_element				: label;
subject_element_value				: text;
END_ENTITY; - - document_usage_constraint ENTITY document_with_class SUBTYPE OF (document) ; class : identifier; END_ENTITY; - - document_with_class ENTITY edge SUPERTYPE OF (ONEOF (edge_curve, oriented_edge)) SUBTYPE OF (topological_representation_item) ;
edge_start		: vertex;
edge_end		: vertex;
END_ENTITY; - - edge ENTITY edge_based_wireframe_model SUBTYPE OF (geometric_representation_item) ; ebwm_boundary : SET [1:?] OF connected_edge_set; END_ENTITY; - - edge_based_wireframe_model ENTITY edge_based_wireframe_shape_representation SUBTYPE OF (shape_representation) ; WHERE wr1: (SIZEOF(QUERY ( it <* SELF.items | (NOT (SIZEOF([ 'CONFIG_CONTROL_DESIGN.EDGE_BASED_WIREFRAME_MODEL' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' , 'CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D'] * TYPEOF(it)) = 1)) )) = 0 ); wr2: (SIZEOF(QUERY ( it <* SELF.items | (SIZEOF([ 'CONFIG_CONTROL_DESIGN.EDGE_BASED_WIREFRAME_MODEL', 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM'] * TYPEOF(it)) = 1) )) >= 1); wr3: (SIZEOF(QUERY (ebwm <* QUERY (it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.EDGE_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( eb <* ebwm\ edge_based_wireframe_model.ebwm_boundary | (NOT (SIZEOF( QUERY ( edges <* eb.ces_edges | (NOT ( 'CONFIG_CONTROL_DESIGN.EDGE_CURVE' IN TYPEOF(edges))) )) = 0)) )) = 0)) )) = 0); wr4: (SIZEOF(QUERY ( ebwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.EDGE_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( eb <* ebwm\ edge_based_wireframe_model.ebwm_boundary | (NOT (SIZEOF( QUERY ( pline_edges <* QUERY ( edges <* eb.ces_edges | ( 'CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF(edges\edge_curve. edge_geometry)) ) | (NOT (SIZEOF(pline_edges\edge_curve. edge_geometry\polyline.points) > 2)) )) = 0)) )) = 0)) )) = 0) ; wr5: (SIZEOF (QUERY ( ebwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.EDGE_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( eb <* ebwm\ edge_based_wireframe_model.ebwm_boundary | (NOT (SIZEOF (
QUERY ( edges <* eb.ces_edges | (NOT (( 'CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF (edges. edge_start)) AND ('CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF(edges.edge_end)))) )) = 0)) )) = 0)) )) = 0); wr6: (SIZEOF(QUERY ( ebwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.EDGE_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( eb <* ebwm\ edge_based_wireframe_model.ebwm_boundary | (NOT (SIZEOF ( QUERY ( edges <* eb.ces_edges | (NOT valid_wireframe_edge_curve (edges\edge_curve.edge_geometry)) )) = 0)) )) = 0)) )) = 0) ; wr7: (SIZEOF(QUERY ( ebwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.EDGE_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( eb <* ebwm\ edge_based_wireframe_model.ebwm_boundary | (NOT (SIZEOF ( QUERY ( edges <* eb.ces_edges | (NOT ( valid_wireframe_vertex_point(edges.edge_start\vertex_point. vertex_geometry) AND valid_wireframe_vertex_point (edges. edge_end\vertex_point.vertex_geometry))) )) = 0)) )) = 0)) )) = 0 ) ; wr8: (SIZEOF (QUERY ( mi <* QUERY ( it <* SELF .items | ( 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' IN TYPEOF(it)) ) | (NOT (('CONFIG_CONTROL_DESIGN.' + 'EDGE_BASED_WIREFRAME_SHAPE_REPRESENTATION') IN TYPEOF(mi\ mapped_item.mapping_source.mapped_representation))) )) = 0); wr9 : ( SELF.context_of_items\geometric_representation_context. coordinate_space_dimension = 3); END_ENTITY; - - edge_based_wireframe_shape_representation ENTITY edge_curve SUBTYPE OF (edge, geometric_representation_item) ;
edge_geometry			: curve;
same_sense			: BOOLEAN;
END_ENTITY; - - edge_curve ENTITY edge_loop SUBTYPE OF (loop, path) ; DERIVE ne : INTEGER := SIZEOF(SELF\path.edge_list); WHERE wr1: (SELF\path.edge_list[1].edge_start :=: SELF\path.edge_list[ne]. edge_end) ; END_ENTITY; - - edge_loop ENTITY effectivity SUPERTYPE OF (ONEOF (serial_numbered_effectivity, dated_effectivity, lot_effectivity)) ; id : identifier; END_ENTITY; - - effectivity ENTITY elementary_surface SUPERTYPE OF (ONEOF (plane, cylindrical_surface, conical_surface, spherical_surface, toroidal_surface) ) SUBTYPE OF (surface) ; position : axis2_placement_3d; END_ENTITY; - - elementary_surface ENTITY ellipse SUBTYPE OF (conic) ;
semi_axis_1			: positive_length_measure;
semi_axis_2			: positive_length_measure;
END_ENTITY; - - ellipse ENTITY evaluated_degenerate_pcurve SUBTYPE OF (degenerate_pcurve) ; equivalent_point : cartesian_point; END_ENTITY; - - evaluated_degenerate_pcurve ENTITY executed_action SUBTYPE OF (action) ; END_ENTITY; - - executed_action ENTITY face SUPERTYPE OF (ONEOF (face_surface, oriented_face)) SUBTYPE OF (topological_representation_item); bounds : SET [1:?] OF face_bound; WHERE wr1 : (NOT mixed_loop_type_set (list_to_set (list_face_loops (SELF)))); wr2: (SIZEOF(QUERY ( temp <* bounds | ( 'CONFIG_CONTROL_DESIGN.FACE_OUTER_BOUND' IN TYPEOF (temp)) )) <= 1); END_ENTITY; - - face ENTITY face_bound SUBTYPE OF (topological_representation_item);
bound			: loop;
orientation			: BOOLEAN;
END_ENTITY; - - face_bound ENTITY face_outer_bound SUBTYPE OF (face_bound); END_ENTITY; - - face_outer_bound ENTITY face_surface SUBTYPE OF (face, geometric_representation_item);
face_geometry			: surface;
same_sense			: BOOLEAN;
END_ENTITY; - - face_surface ENTITY faceted_brep SUBTYPE OF (manifold_solid_brep) ; END_ENTITY; - - faceted_brep ENTITY faceted_brep_shape_representation SUBTYPE OF (shape_representation) ; WHERE wr1: (SIZEOF (QUERY ( it <* items | (NOT (SIZEOF([ 'CONFIG_CONTROL_DESIGN.FACETED_BREP' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM', 'CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D'] * TYPEOF(it)) = 1)) )) = 0) ; wr2: (SIZEOF (QUERY ( it <* items | (SIZEOF([ 'CONFIG_CONTROL_DESIGN.FACETED_BREP' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM'] * TYPEOF(it)) = 1) )) > 0); wr3: (SIZEOF(QUERY ( fbrep <* QUERY ( it <* items | ( 'CONFIG_CONTROL_DESIGN.FACETED_BREP' IN TYPEOF(it)) ) | ( NOT (SIZEOF(QUERY ( csh <* msb_shells (fbrep) | (NOT ( SIZEOF ( QUERY ( fcs <* csh\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.FACE_SURFACE' IN TYPEOF (fcs)) AND ( 'CONFIG_CONTROL_DESIGN.PLANE' IN TYPEOF (fcs\face_surface. face_geometry)) AND ('CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' IN TYPEOF (fcs\face_surface.face_geometry\elementary_surface. position.location)))) )) = 0)) )) = 0)) )) = 0); wr4: (SIZEOF(QUERY ( fbrep <* QUERY ( it <* items | ( 'CONFIG_CONTROL_DESIGN.FACETED_BREP' IN TYPEOF(it)) ) | ( NOT (SIZEOF(QUERY ( csh <* msb_shells(fbrep) | (NOT (SIZEOF( QUERY ( fcs <* csh\connected_face_set.cfs_faces | (NOT ( SIZEOF(QUERY ( bnds <* fcs.bounds | ( 'CONFIG_CONTROL_DESIGN.FACE_OUTER_BOUND' IN TYPEOF (bnds)) )) = 1)) )) =0)) )) =0)) )) = 0); wr5: (SIZEOF(QUERY ( msb <* QUERY ( it <* items | ( 'CONFIG_CONTROL_DESIGN.MANIFOLD_SOLID_BREP' IN TYPEOF (it)) ) | ('CONFIG_CONTROL_DESIGN.ORIENTED_CLOSED_SHELL' IN TYPEOF ( msb\manifold_solid_brep.outer)) )) =0);
wr6: (SIZEOF(QUERY ( brv <* QUERY ( it <* items | ( 'CONFIG_CONTROL_DESIGN.BREP_WITH_VOIDS' IN TYPEOF (it)) ) | ( NOT (SIZEOF(QUERY ( csh <* brv\brep_with_voids.voids | csh\ oriented_closed_shell.orientation )) =0)) )) = 0); wr7: (SIZEOF(QUERY ( mi <* QUERY ( it <* items | ( 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' IN TYPEOF(it)) ) | (NOT ('CONFIG_CONTROL_DESIGN.FACETED_BREP_SHAPE_REPRESENTATION' IN TYPEOF (mi\mapped_item.mapping_source. mapped_representation))) )) = 0); END_ENTITY; - - faceted_brep_shape_representation ENTITY founded_item; END_ENTITY; - - founded_item ENTITY functionally_defined_transformation;
name			: label ;
description			: text;
END_ENTITY; - - functionally_defined_transformation ENTITY geometric_curve_set SUBTYPE OF (geometric_set) ; WHERE wr1: (SIZEOF (QUERY ( temp <* SELF\geometric_set.elements | ( 'CONFIG_CONTROL_DESIGN.SURFACE' IN TYPEOF (temp)) )) = 0); END_ENTITY; - - geometric_curve_set ENTITY geometric_representation_context SUBTYPE OF (representation_context) ; coordinate_space_dimension : dimension_count; END_ENTITY; - - geometric_representation_context ENTITY geometric_representation_item SUPERTYPE OF (ONEOF (point, direction, vector, placement, cartesian_transformation_operator, curve, surface, edge_curve, face_surface, poly_loop, vertex_point, solid_model, shell_based_surface_model, shell_based_wireframe_model, edge_based_wireframe_model, geometric_set)) SUBTYPE OF (representation_item) ; DERIVE dim : dimension_count := dimension_of (SELF); WHERE wr1: (SIZEOF (QUERY ( using_rep <* using_representations (SELF) | (NOT ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_REPRESENTATION_CONTEXT' IN TYPEOF(using_rep.context_of_items))) )) = 0); END_ENTITY; - - geometric_representation_item ENTITY geometric_set SUPERTYPE OF (geometric_curve_set) SUBTYPE OF (geometric_representation_item) ; elements : SET [1:?] OF geometric_set_select; END_ENTITY; - - geometric_set ENTITY geometrically_bounded_surface_shape_representation SUBTYPE OF (shape_representation) ; WHERE wr1: (SIZEOF (QUERY ( it <* SELF.items | (NOT (SIZEOF([
'CONFIG_CONTROL_DESIGN.GEOMETRIC_SET', 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' , 'CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D'] * TYPEOF(it)) = 1)) )) = 0) ; wr2: (SIZEOF (QUERY ( it <* SELF.items | (SIZEOF([ 'CONFIG_CONTROL_DESIGN.GEOMETRIC_SET' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM'] * TYPEOF(it)) = 1) )) > 0) ; wr3: (SIZEOF (QUERY ( mi <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' IN TYPEOF(it)) ) | (NOT ((('CONFIG_CONTROL_DESIGN.' + 'GEOMETRICALLY_BOUNDED_SURFACE_SHAPE_REPRESENTATION') IN TYPEOF (mi\mapped_item.mapping_source.mapped_representation)) AND (SIZEOF(QUERY ( mr_it <* mi\mapped_item.mapping_source. mapped_representation.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_SET' IN TYPEOF (mr_it)) )) > 0))) )) = 0); wr4: (SIZEOF(QUERY ( gs <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_SET' IN TYPEOF (it)) ) | ( NOT (SIZEOF(QUERY ( pnt <* QUERY ( gsel <* gs\geometric_set. elements | ('CONFIG_CONTROL_DESIGN.POINT' IN TYPEOF(gsel)) ) | (NOT gbsf_check_point(pnt)) )) = 0)) )) = 0); wr5: (SIZEOF(QUERY ( gs <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_SET' IN TYPEOF(it)) ) | ( NOT (SIZEOF(QUERY ( cv <* QUERY ( gsel <* gs\geometric_set. elements | ('CONFIG_CONTROL_DESIGN.CURVE' IN TYPEOF(gsel)) ) | (NOT gbsf_check_curve(cv)) )) = 0)) )) = 0); wr6: (SIZEOF(QUERY ( gs <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_SET' IN TYPEOF (it)) ) | ( NOT (SIZEOF(QUERY ( sf <* QUERY ( gsel <* gs\geometric_set. elements | ('CONFIG_CONTROL_DESIGN.SURFACE' IN TYPEOF(gsel)) ) | (NOT gbsf_check_surface(sf)) )) = 0)) )) = 0); wr7: (SIZEOF (QUERY ( gs <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_SET' IN TYPEOF (it)) ) | ( SIZEOF(QUERY ( gsel <* gs\geometric_set.elements | ( 'CONFIG_CONTROL_DESIGN.SURFACE' IN TYPEOF(gsel)) )) > 0) ))
> 0) ; END ENTITY; - - geometrically_bounded_surface_shape_representation ENTITY geometrically_bounded_wireframe_shape_representation SUBTYPE OF (shape_representation) ; WHERE wr1: (SIZEOF(QUERY ( it <* SELF.items | (NOT (SIZEOF(TYPEOF(it) * [ 'CONFIG_CONTROL_DESIGN.GEOMETRIC_CURVE_SET' , 'CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D', 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM']) = 1)) )) = 0); wr2: (SIZEOF(QUERY ( it <* SELF.items | (SIZEOF(TYPEOF(it) * [ 'CONFIG_CONTROL_DESIGN.GEOMETRIC_CURVE_SET' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM']) = 1) )) >= 1); wr3: (SIZEOF(QUERY ( gcs <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_CURVE_SET' IN TYPEOF (it)) ) | (NOT (SIZEOF(QUERY ( crv <* QUERY ( elem <* gcs\ geometric_set.elements | ('CONFIG_CONTROL_DESIGN.CURVE' IN TYPEOF (elem)) ) | (NOT valid_geometrically_bounded_wf_curve( crv)) )) = 0)) ) ) = 0); wr4: (SIZEOF (QUERY ( gcs <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_CURVE_SET' IN TYPEOF(it)) ) | (NOT (SIZEOF (QUERY ( pnts <* QUERY ( elem <* gcs\ geometric_set.elements | ('CONFIG_CONTROL_DESIGN.POINT' IN TYPEOF (elem)) ) | (NOT valid_geometrically_bounded_wf_point( pnts)) )) = 0)) )) = 0); wr5: (SIZEOF (QUERY ( gcs <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_CURVE_SET' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cnc <* QUERY ( elem <* gcs\ geometric_set.elements | ('CONFIG_CONTROL_DESIGN.CONIC' IN TYPEOF (elem)) ) | (NOT ( 'CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D' IN TYPEOF(cnc\ conic.position))) )) = 0)) )) = 0); wr6: (SIZEOF(QUERY ( gcs <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_CURVE_SET IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( pline <* QUERY ( elem <* gcs\ geometric_set.elements | ('CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF(elem)) ) | (NOT (SIZEOF(pline\polyline.points) > 2)) )) = 0)) )) = 0) ;
wr7: (SIZEOF(QUERY ( mi <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' IN TYPEOF(it)) ) | (NOT (('CONFIG_CONTROL_DESIGN.' + 'GEOMETRICALLY_BOUNDED_WIREFRAME_SHAPE_REPRESENTATION' ) IN TYPEOF (mi\mapped_item.mapping_source.mapped_representation) )) )) = 0 ); END_ENTITY; - - geometrically_bounded_wireframe_shape_representation ENTITY global_uncertainty_assigned_context SUBTYPE OF (representation_context) ; uncertainty : SET [1:?] OF uncertainty_measure_with_unit; END_ENTITY; - - global_uncertainty_assigned_context ENTITY global_unit_assigned_context SUBTYPE OF (representation_context) ; units : SET [1:?] OF unit; END_ENTITY; - - global_unit_assigned_context ENTITY hyperbola SUBTYPE OF (conic) ;
semi_axis			: positive_length_measure;
semi_imag_axis			: positive_length_measure;
END_ENTITY; - - hyperbola ENTITY intersection_curve SUBTYPE OF (surface_curve) ; WHERE wr1: (SIZEOF(SELF\surface_curve.associated_geometry) = 2); wr2 : (associated_surface (SELF\surface_curve.associated_geometry [1] ) < > associated_surface (SELF\surface_curve.associated_geometry [2])); END_ENTITY; - - intersection_curve ENTITY item_defined_transformation;
name			: label;
description			: text;
transform_item_1			: representation_item;
transform_item_2			: representation_item;
END_ENTITY; - - item_defined_transformation ENTITY length_measure_with_unit SUBTYPE OF (measure_with_unit) ; WHERE wr1: ('CONFIG_CONTROL_DESIGN.LENGTH_UNIT' IN TYPEOF(SELF\ measure_with_unit.unit component)) ; END_ENTITY; - - length_measure_with_unit ENTITY length_unit SUBTYPE OF (named_unit) ; WHERE wr1: ((SELF\named_unit.dimensions.length_exponent = 1) AND (SELF\ named_unit.dimensions.mass_exponent = 0) AND (SELF\ named_unit.dimensions.time_exponent = 0) AND (SELF\ named_unit.dimensions.electric_current_exponent = 0) AND ( SELF\named_unit.dimensions. thermodynamic_temperature_exponent = 0) AND (SELF\named_unit .dimensions.amount_of_substance_exponent = 0) AND (SELF\ named_unit.dimensions.luminous_intensity_exponent = 0)); END_ENTITY; - - length_unit ENTITY line SUBTYPE OF (curve) ;
pnt		: cartesian_point;
dir		: vector;
WHERE wr1: (dir.dim = pnt.dim); END_ENTITY; - - line ENTITY local_time;
hour_component					: hour_in_day;
minute_component					: OPTIONAL minute_in_hour;
second_component					: OPTIONAL second_in_minute;
zone					: coordinated_universal_time_offset;
WHERE wr1: valid_time(SELF); END_ENTITY; - - local_time ENTITY loop SUPERTYPE OF (ONEOF (vertex_loop, edge_loop, poly_loop)) SUBTYPE OF (topological_representation_item); END_ENTITY; - - loop ENTITY lot_effectivity SUBTYPE OF (effectivity) ;
effectivity_lot_id			: identifier;
effectivity_lot_size			: measure_with_unit;
END_ENTITY; - - lot_effectivity ENTITY manifold_solid_brep SUBTYPE OF (solid_model) ; outer : closed_shell; END_ENTITY; - - manifold_solid_brep ENTITY manifold_surface_shape_representation SUBTYPE OF (shape_representation) ; WHERE wr1 : (SIZEOF(QUERY ( it <* SELF.items | (NOT (SIZEOF([ 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM', 'CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D'] * TYPEOF(it)) = 1)) )) = 0); wr2 : (SIZEOF (QUERY ( it <* SELF.items | (SIZEOF([ 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM'] * TYPEOF(it)) = 1) )) > 0) ; wr3 : (SIZEOF (QUERY ( mi <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' IN TYPEOF(it)) ) | ( NOT (('CONFIG_CONTROL_DESIGN.' + 'MANIFOLD_SURFACE_SHAPE_REPRESENTATION' IN TYPEOF (mi\mapped_item.mapping_source. mapped_representation)) AND (SIZEOF(QUERY ( mr_it <* mi\ mapped_item.mapping_source.mapped_representation.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF (mr_it)) )) > 0))) )) = 0); wr4 : (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( sh <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF([ 'CONFIG_CONTROL_DESIGN.OPEN_SHELL' , 'CONFIG_CONTROL_DESIGN.ORIENTED_CLOSED_SHELL' , 'CONFIG_CONTROL_DESIGN.CLOSED_SHELL'] * TYPEOF(sh)) = 1)) )) = 0)) )) = 0); wr5 : (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN
TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | NOT (SIZEOF ( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT ( SIZEOF(['CONFIG_CONTROL_DESIGN.FACE_SURFACE', 'CONFIG_CONTROL_DESIGN.ORIENTED_FACE'] * TYPEOF(fa)) = 1)) )) = 0)) )) = 0)) )) = 0); wr6 : (SIZEOF (QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT ( SIZEOF ( QUERY ( f_sf <* QUERY ( fa <* cfs\connected_face_set. cfs_faces | ('CONFIG_CONTROL_DESIGN.FACE_SURFACE' IN TYPEOF (fa)) ) | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' INTYPEOF(f_sf)) OR ( SIZEOF (['CONFIG_CONTROL_DESIGN.B_SPLINE_SURFACE' , 'CONFIG_CONTROL_DESIGN.ELEMENTARY_SURFACE' , 'CONFIG_CONTROL_DESIGN.OFFSET_SURFACE' , 'CONFIG_CONTROL_DESIGN.SURFACE_REPLICA' , 'CONFIG_CONTROL_DESIGN.SWEPT_SURFACE'] * TYPEOF(f_sf\ face_surface.face_geometry)) = 1))) )) = 0)) )) = 0)) )) = 0) ; wr7 : (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF (fa)) OR msf_surface_check(fa\face_surface.face_geometry))) )) = 0)) )) = 0)) )) = 0); wr8 : (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF(fa)) OR ( SIZEOF(QUERY ( bnds <* fa.bounds | (NOT (SIZEOF( [ 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' , 'CONFIG_CONTROL_DESIGN.VERTEX_LOOP' ] * TYPEOF (bnds.bound)) = 1)) )) = 0))) )) = 0)) )) =0)) )) =0);
wr9 : (SIZEOF (QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF(fa)) OR ( SIZEOF (QUERY ( elp_fbnds <* QUERY ( bnds <* fa.bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds.bound)) ) | ( NOT (SIZEOF(QUERY ( oe <* elp_fbnds\path.edge_list | ( NOT ('CONFIG_CONTROL_DESIGN.EDGE_CURVE' IN TYPEOF(oe. edge_element))))) = 0)))) = 0))))) = 0)) )) = 0)) )) = 0); wr10: (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT ( SIZEOF ( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF (fa)) OR ( SIZEOF (QUERY ( elp_fbnds <* QUERY ( bnds <* fa.bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF (bnds.bound)) ) | (NOT (SIZEOF(QUERY ( oe_cv <* QUERY ( oe <* elp_fbnds\ path.edge_list | ('CONFIG_CONTROL_DESIGN.EDGE_CURVE' IN TYPEOF(oe.edge_element)) ) | (NOT (SIZEOF([ 'CONFIG_CONTROL_DESIGN.B_SPLINE_CURVE' , 'CONFIG_CONTROL_DESIGN.CONIC' , 'CONFIG_CONTROL_DESIGN.CURVE_REPLICA' , 'CONFIG_CONTROL_DESIGN.LINE', 'CONFIG_CONTROL_DESIGN.OFFSET_CURVE_3D' , 'CONFIG_CONTROL_DESIGN.PCURVE' , 'CONFIG_CONTROL_DESIGN.POLYLINE' , 'CONFIG_CONTROL_DESIGN.SURFACE_CURVE'] * TYPEOF (oe_cv. edge_element\edge_curve.edge_geometry)) = 1)) )) = 0)) )) = 0))) )) = 0)) )) = 0)) )) = 0) ; wr11: (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF ( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF (fa)) OR (
SIZEOF(QUERY ( elp_fbnds <* QUERY ( bnds <* fa.bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF (bnds.bound)) ) | (NOT (SIZEOF(QUERY ( oe <* elp_fbnds\path.edge_list | ( NOT msf_curve_check (oe.edge_element\edge_curve. edge_geometry)) )) = 0)) )) = 0))) )) = 0)) )) = 0)) )) = 0); wr12: (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF ( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF(fa)) OR ( SIZEOF(QUERY ( elp_fbnds <* QUERY ( bnds <* fa.bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds.bound)) ) | (NOT (SIZEOF(QUERY ( oe <* elp_fbnds\path.edge_list | ( NOT (('CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF(oe. edge_element.edge_start)) AND ( 'CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF(oe. edge_element.edge_end)))) )) = 0)) )) = 0))) )) = 0)) )) = 0)) )) = 0); wr13: (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF ( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF(fa)) OR ( SIZEOF(QUERY ( elp_fbnds <* QUERY ( bnds <* fa.bounds | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(bnds.bound)) ) | (NOT (SIZEOF(QUERY ( oe <* elp_fbnds\path.edge_list | ( NOT (( SIZEOF ( ['CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' , 'CONFIG_CONTROL_DESIGN.DEGENERATE_PCURVE' , 'CONFIG_CONTROL_DESIGN.POINT_ON_CURVE' , 'CONFIG_CONTROL_DESIGN.POINT_ON_SURFACE' ] * TYPEOF ( oe. edge_element.edge_start\vertex_point.vertex_geometry)) = 1) AND (SIZEOF(['CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' , 'CONFIG_CONTROL_DESIGN.DEGENERATE_PCURVE' , 'CONFIG_CONTROL_DESIGN.POINT_ON_CURVE' ,
'CONFIG_CONTROL_DESIGN.POINT_ON_SURFACE'] * TYPEOF (oe. edge_element.edge_end\vertex_point.vertex_geometry)) = 1))) )) = 0)) )) = 0))) )) = 0)) )) = 0)) )) = 0) ; wr14: (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF(fa)) OR ( SIZEOF (QUERY ( vlp_fbnds <* QUERY ( bnds <* fa.bounds | ( 'CONFIG_CONTROL_DESIGN.VERTEX_LOOP' IN TYPEOF (bnds.bound)) ) | (NOT ('CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF ( vlp_fbnds\vertex_loop.loop_vertex))) )) = 0))) )) = 0)) )) = 0)) )) = 0 ); wr15: (SIZEOF(QUERY ( sbsm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_SURFACE_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( cfs <* sbsm\ shell_based_surface_model.sbsm_boundary | (NOT (SIZEOF ( QUERY ( fa <* cfs\connected_face_set.cfs_faces | (NOT (( 'CONFIG_CONTROL_DESIGN.ADVANCED_FACE' IN TYPEOF (fa)) OR ( SIZEOF(QUERY ( vlp_fbnds <* QUERY ( bnds <* fa.bounds | ( 'CONFIG_CONTROL_DESIGN.VERTEX_LOOP' IN TYPEOF (bnds.bound)) ) | (NOT (SIZEOF (['CONFIG_CONTROL_DESIGN.CARTESIAN_POINT', 'CONFIG_CONTROL_DESIGN.DEGENERATE_PCURVE', 'CONFIG_CONTROL_DESIGN.POINT_ON_CURVE' , 'CONFIG_CONTROL_DESIGN.POINT_ON_SURFACE'] * TYPEOF ( vlp_fbnds\vertex_loop.loop_vertex\vertex_point. vertex_geometry)) = 1)) )) = 0))) )) = 0)) )) = 0)) )) = 0); END_ENTITY; - - manifold_surface_shape_representation ENTITY mapped_item SUBTYPE OF (representation_item) ;
mapping_source			: representation_map;
mapping_target			: representation_item;
WHERE wr1 : acyclic_mapped_representation (using_representations (SELF) , [SELF]) ; END_ENTITY; - - mapped_item ENTITY mass_measure_with_unit SUBTYPE OF (measure_with_unit) ; WHERE wr1: ('CONFIG_CONTROL_DESIGN.MASS_UNIT' IN TYPEOF(SELF\ measure_with_unit.unit_component)) ; END_ENTITY; - - mass_measure_with_unit ENTITY mass_unit SUBTYPE OF (named_unit); WHERE wr1: ((SELF\named_unit.dimensions.length_exponent = 0) AND (SELF\ named_unit.dimensions.mass_exponent = 1) AND (SELF\ named_unit.dimensions.time_exponent = 0) AND (SELF\ named_unit.dimensions.electric_current_exponent = 0) AND ( SELF\named_unit.dimensions. thermodynamic_temperature_exponent = 0) AND (SELF\named_unit .dimensions.amount_of_substance_exponent = 0) AND (SELF\ named_unit.dimensions.luminous_intensity_exponent = 0)); END_ENTITY; - - mass_unit ENTITY measure_with_unit SUPERTYPE OF (ONEOF (length_measure_with_unit, mass_measure_with_unit, plane_angle_measure_with_unit, solid_angle_measure_with_unit, area_measure_with_unit, volume_measure_with_unit)) ;
value_component			: measure_value;
unit_component			: unit;
WHERE wr1: valid_units(SELF); END_ENTITY; - - measure_with_unit ENTITY mechanical_context SUBTYPE OF (product_context) ; WHERE wr1: (SELF.discipline_type = 'mechanical'); END_ENTITY; - - mechanical_context ENTITY named_unit SUPERTYPE OF (ONEOF (si_unit, conversion_based_unit, context_dependent_unit) ANDOR ONEOF (length_unit, mass_unit, plane_angle_unit, solid_angle_unit, area_unit, volume_unit)) ; dimensions : dimensional_exponents; END_ENTITY; - - named_unit ENTITY next_assembly_usage_occurrence SUBTYPE OF (assembly_component_usage) ; END_ENTITY; - - next_assembly_usage_occurrence ENTITY offset_curve_3d SUBTYPE OF (curve);
basis_curve			: curve;
distance			: length_measure;
self_intersect			: LOGICAL;
ref_direction			: direction;
WHERE wr1: ((basis_curve.dim = 3) AND (ref_direction.dim = 3)); END_ENTITY; - - offset_curve_3d ENTITY offset_surface SUBTYPE OF (surface) ;
basis_surface			: surface;
distance			: length_measure;
self_intersect			: LOGICAL;
END_ENTITY; - - offset_surface ENTITY open_shell SUBTYPE OF (connected_face_set) ; END_ENTITY; - - open_shell ENTITY ordinal_date SUBTYPE OF (date) ; day_component : day_in_year_number; WHERE wr1: (((NOT leap_year(SELF.year_component)) AND (1 <= day_component) AND (day_component <= 365)) OR (leap_year(SELF. year_component) AND (1 <= day_component) AND (day_component <= 366))) ; END_ENTITY; - - ordinal_date ENTITY organization;
id			: OPTIONAL identifier;
name			: label;
description			: text;
END_ENTITY; - - organization ENTITY organization_relationship;
name					: label;
description					: text;
relating_organization					: organization;
related_organization					: organization;
END_ENTITY; - - organization_relationship ENTITY organizational_address SUBTYPE OF (address);
organizations			: SET [1:?] OF organization;
description			: text;
END_ENTITY; - - organizational_address ENTITY organizational_project;
name					: label;
description					: text;
responsible_organizations					: SET [1:?] OF organization;
END_ENTITY; - - organizational_project ENTITY oriented_closed_shell SUBTYPE OF (closed_shell);
closed_shell_element					: closed_shell;
orientation					: BOOLEAN;
DERIVE SELF\connected_face_set.cfs_faces : SET [1:?] OF face := conditional_reverse (SELF.orientation, SELF. closed_shell_element.cfs_faces) ; WHERE WR1: (NOT ('CONFIG_CONTROL_DESIGN.ORIENTED_CLOSED_SHELL' IN TYPEOF( SELF.closed_shell_element))) ; END_ENTITY; - - oriented_closed_shell ENTITY oriented_edge SUBTYPE OF ( edge);
edge_element			: edge;
orientation			: BOOLEAN;
DERIVE
SELF\edge.edge_start : vertex := boolean_choose (SELF.orientation, SELF.edge_element.edge_start, SELF. edge_element.edge_end) ;
SELF\edge.edge_end : vertex := boolean_choose(SELF.orientation, SELF.edge_element.edge_end, SELF. edge_element.edge_start) ;
WHERE WR1: (NOT ('CONFIG_CONTROL_DESIGN.ORIENTED_EDGE' IN TYPEOF (SELF. edge_element))) ; END_ENTITY; - - oriented_edge ENTITY oriented_face SUBTYPE OF (face);
face_element			: face;
orientation			: BOOLEAN;
DERIVE
SELF\face.bounds : SET [1:?] OF face_bound := conditional_reverse ( SELF.orientation, SELF.face_element.bounds) ;
WHERE WR1: (NOT ('CONFIG_CONTROL_DESIGN.ORIENTED_FACE' IN TYPEOF (SELF. face_element))) ; END_ENTITY; - - oriented_face ENTITY oriented_open_shell SUBTYPE OF (open_shell) ;
open_shell_element				: open_shell;
orientation				: BOOLEAN;
DERIVE SELF\connected_face_set.cfs_faces : SET [1:?] OF face : = conditional_reverse (SELF. orientation, SELF. open_shell_element.cfs_faces) ; WHERE WR1: (NOT ('CONFIG_CONTROL_DESIGN.ORIENTED_OPEN_SHELL' IN TYPEOF ( SELF. open_shell_element))) ; END_ENTITY; - - oriented_open_shell ENTITY oriented_path SUBTYPE OF (path) ;
path_element			: path;
orientation			: BOOLEAN;
DERIVE SELF\path.edge_list : LIST [1:?] OF UNIQUE oriented_edge : = conditional_reverse (SELF.orientation, SELF. path_element.edge_list) ; WHERE WR1: (NOT ('CONFIG_CONTROL_DESIGN.ORIENTED_PATH' IN TYPEOF (SELF. path_element))) ; END_ENTITY; - - oriented_path ENTITY outer_boundary_curve SUBTYPE OF (boundary_curve) ; END_ENTITY; - - outer_boundary_curve ENTITY parabola SUBTYPE OF (conic) ; focal_dist : length_measure; WHERE wr1: (focal_dist < > 0); END_ENTITY; - - parabola ENTITY parametric_representation_context SUBTYPE OF (representation_context) ; END_ENTITY; - - parametric_representation_context ENTITY path SUPERTYPE OF (ONEOF (edge_loop, oriented_path)) SUBTYPE OF (topological_representation_item) ; edge_list : LIST [1:?] OF UNIQUE oriented_edge; WHERE wr1: path_head_to_tail (SELF); END_ENTITY; - - path ENTITY pcurve SUBTYPE OF (curve) ;
basis_surface				: surface;
reference_to_curve				: definitional_representation;
WHERE wr1: (SIZEOF(reference_to_curve\representation.items) = 1); wr2: ('CONFIG_CONTROL_DESIGN.CURVE' IN TYPEOF(reference_to_curve\ representation.items [1] )) ; wr3 : (reference_to_curve\representation.items [1] \ geometric_representation_item.dim = 2); END_ENTITY; - - pcurve ENTITY person;
id			: identifier;
last_name			: OPTIONAL label;
first_name			: OPTIONAL label;
middle_names			: OPTIONAL LIST [1:?] OF label;
prefix_titles			: OPTIONAL LIST [1:?] OF label;
suffix_titles			: OPTIONAL LIST [1:?] OF label;
UNIQUE ur1 : id; WHERE wr1: (EXISTS (last_name) OR EXISTS (first_name)); END_ENTITY; - - person ENTITY person_and_organization;
the_person			: person;
the_organization			: organization;
END_ENTITY; - - person_and_organization ENTITY person_and_organization_assignment ABSTRACT SUPERTYPE;
assigned_person_and_organization						: person_and_organization;
role						: person_and_organization_role;
END_ENTITY; - - person_and_organization_assignment ENTITY person_and_organization_role; name : label; END_ENTITY; - - person_and_organization_role ENTITY personal_address SUBTYPE OF (address) ;
people			: SET [1:?] OF person;
description			: text;
END_ENTITY; - - personal_address ENTITY placement SUPERTYPE OF (ONEOF (axis1_placement, axis2_placement_2d, axis2_placement_3d) ) SUBTYPE OF (geometric_representation_item) ; location : cartesian_point; END_ENTITY; - - placement ENTITY plane SUBTYPE OF (elementary_surface) ; END_ENTITY; - - plane ENTITY plane_angle_measure_with_unit SUBTYPE OF (measure_with_unit) ; WHERE WR1: ('CONFIG_CONTROL_DESIGN.PLANE_ANGLE_UNIT' IN TYPEOF(SELF\ measure_with_unit.unit_component)) ; END_ENTITY; - - plane_angle_measure_with_unit ENTITY plane_angle_unit SUBTYPE OF (named_unit); WHERE wr1: ((SELF\named_unit.dimensions.length_exponent = 0) AND (SELF\ named_unit.dimensions.mass_exponent = 0) AND (SELF\ named_unit.dimensions.time_exponent = 0) AND (SELF\ named_unit.dimensions.electric_current_exponent = 0) AND ( SELF\named_unit.dimensions. thermodynamic_temperature_exponent = 0) AND (SELF\named_unit .dimensions.amount_of_substance_exponent = 0) AND (SELF\ named_unit.dimensions.luminous_intensity_exponent = 0)); END_ENTITY; - - plane_angle_unit ENTITY point SUPERTYPE OF (ONEOF (cartesian_point, point_on_curve, point_on_surface, point_replica, degenerate_pcurve)) SUBTYPE OF (geometric_representation_item) ;
END_ENTITY; - - point ENTITY point_on_curve SUBTYPE OF (point) ;
basis_curve			: curve;
point_parameter			: parameter_value;
END_ENTITY; - - point_on_curve ENTITY point_on_surface SUBTYPE OF (point) ;
basis_surface					: surface;
point_parameter_u					: parameter_value;
point_parameter_v					: parameter_value;
END_ENTITY; - - point_on_surface ENTITY point_replica SUBTYPE OF (point);
parent_pt			: point;
transformation			: cartesian_transformation_operator;
WHERE wr1: (transformation.dim = parent_pt.dim); wr2: acyclic_point_replica (SELF, parent_pt) ; END_ENTITY; - - point_replica ENTITY poly_loop SUBTYPE OF (loop, geometric_representation_item); polygon : LIST [3:?] OF UNIQUE cartesian_point; END_ENTITY; - - poly_loop ENTITY polyline SUBTYPE OF (bounded_curve) ; points : LIST [2:?] OF cartesian_point; END_ENTITY; - - polyline ENTITY product;
id					: identifier;
name					: label;
description					: text;
frame_of_reference					: SET [1:?] OF product_context;
UNIQUE ur1 : id; END_ENTITY; - - product ENTITY product_category;
name			: label;
description			: OPTIONAL text;
END_ENTITY; - - product_category ENTITY product_category_relationship;
name			: label;
description			: text;
category			: product_category;
sub_category			: product_category;
WHERE wr1: acyclic_product_category_relationship (SELF, [SELF.sub_category]) ; END_ENTITY; - - product_category_relationship ENTITY product_concept;
id			: identifier;
name			: label;
description			: text;
market_context			: product_concept_context;
UNIQUE ur1 : id; END_ENTITY; - - product_concept ENTITY product_concept_context SUBTYPE OF (application_context_element) ; market_segment_type : label ; END_ENTITY; - - product_concept_context ENTITY product_context SUBTYPE OF (application_context_element) ; discipline_type : label; END_ENTITY; - - product_context ENTITY product_definition;
id					: identifier;
description					: text;
formation					: product_definition_formation;
frame_of_reference					: product_definition_context;
END_ENTITY; - - product_definition ENTITY product_definition_context SUBTYPE OF (application_context_element) ; life_cycle_stage : label; END_ENTITY; - - product_definition_context ENTITY product_definition_effectivity SUBTYPE OF (effectivity) ;
usage		: product_definition_relationship;
UNIQUE
ur1		: usage, id;
END_ENTITY; - - product_definition_effectivity ENTITY product_definition_formation;
id			: identifier;
description			: text;
of_product			: product;
UNIQUE ur1 : id, of_product; END_ENTITY; - - product_definition_formation ENTITY product_definition_formation_with_specified_source SUBTYPE OF (product_definition_formation) ; make_or_buy : source; END_ENTITY; - - product_definition_formation_with_specified_source ENTITY product_definition_relationship;
id					: identifier;
name					: label;
description					: text;
relating_product_definition					: product_definition;
related_product_definition					: product_definition;
END_ENTITY; - - product_definition_relationship ENTITY product_definition_shape SUBTYPE OF (property_definition); UNIQUE ur1 : definition; WHERE wr1: (NOT ('CONFIG_CONTROL_DESIGN.SHAPE_DEFINITION' IN TYPEOF(SELF\ property_definition.definition))); END_ENTITY; - - product_definition_shape ENTITY product_definition_usage SUPERTYPE OF (assembly_component_usage) SUBTYPE OF (product_definition_relationship) ; UNIQUE ur1 : id, relating_product_definition, related_product_definition; WHERE wr1: acyclic_product_definition_relationship (SELF, [SELF\ product_definition_relationship.related_product_definition], 'CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION_USAGE') ; END_ENTITY; - - product_definition_usage ENTITY product_definition_with_associated_documents SUBTYPE OF (product_definition) ; documentation_ids : SET [1:?] OF document; END_ENTITY; - - product_definition_with_associated_documents ENTITY product_related_product_category SUBTYPE OF (product_category) ; products : SET [1:?] OF product; END_ENTITY; - - product_related_product_category ENTITY promissory_usage_occurrence SUBTYPE OF (assembly_component_usage) ; END_ENTITY; - - promissory_usage_occurrence ENTITY property_definition;
name			: label;
description			: text;
definition			: characterized_definition;
END_ENTITY; - - property_definition ENTITY property_definition_representation;
definition					: property_definition;
used_representation					: representation;
END_ENTITY; - - property_definition_representation ENTITY quantified_assembly_component_usage SUBTYPE OF (assembly_component_usage) ; quantity : measure_with_unit; END_ENTITY; - - quantified_assembly_component_usage ENTITY quasi_uniform_curve SUBTYPE OF (b_spline_curve) ; END_ENTITY; - - quasi_uniform_curve ENTITY quasi_uniform_surface SUBTYPE OF (b_spline_surface) ; END_ENTITY; - - quasi_uniform_surface ENTITY rational_b_spline_curve SUBTYPE OF (b_spline_curve) ; weights_data : LIST [2:?] OF REAL; DERIVE weights : ARRAY [0:upper_index_on_control_points] OF REAL := list_to_array (weights_data, 0, upper_index_on_control_points) ; WHERE wr1: (SIZEOF (weights_data) = SIZEOF(SELF\b_spline_curve. control_points_list)) ; wr2: curve_weights_positive(SELF) ; END_ENTITY; - - rational_b_spline_curve ENTITY rational_b_spline_surface SUBTYPE OF (b_spline_surface) ; weights_data : LIST [2:?] OF LIST [2:?] OF REAL; DERIVE weights : ARRAY [0:u_upper] OF ARRAY [0:v_upper] OF REAL := make_array_of_array (weights_data, 0, u_upper, 0, v_upper) ; WHERE wr1: ((SIZEOF(weights_data) = SIZEOF(SELF\b_spline_surface. control_points_list)) AND (SIZEOF(weights_data[1]) = SIZEOF(
SELF\b_spline_surface.control_points_list [1]))); wr2: surface_weights_positive(SELF) ; END_ENTITY; - - rational_b_spline_surface ENTITY rectangular_composite_surface SUBTYPE OF (bounded_surface) ;
segments		: LIST [1:?] OF LIST [1:?] OF surface_patch;
DERIVE
n_u		: INTEGER := SIZEOF( segments);
n_v		: INTEGER := SIZEOF( segments[1]);
WHERE wr1: ([ ] = QUERY ( s <* segments | (n_v < > SIZEOF(s)) )); wr2: constraints_rectangular_composite_surface (SELF) ; END_ENTITY; - - rectangular_composite_surface ENTITY rectangular_trimmed_surface SUBTYPE OF (bounded_surface) ;
basis_surface			: surface;
u1			: parameter_value;
u2			: parameter_value;
v1			: parameter_value;
v2			: parameter_value;
usense			: BOOLEAN;
vsense			: BOOLEAN;
WHERE wr1: (u1 < > u2); wr2: (v1 < > v2); wr3: ((('CONFIG_CONTROL_DESIGN.ELEMENTARY_SURFACE' IN TYPEOF ( basis_surface)) AND (NOT ('CONFIG_CONTROL_DESIGN.PLANE' IN TYPEOF(basis_surface)))) OR ( 'CONFIG_CONTROL_DESIGN.SURFACE_OF_REVOLUTION' IN TYPEOF ( basis_surface)) OR (usense = (u2 > u1))) ; wr4: (('CONFIG_CONTROL_DESIGN.SPHERICAL_SURFACE' IN TYPEOF( basis_surface)) OR ('CONFIG_CONTROL_DESIGN.TOROIDAL_SURFACE' IN TYPEOF(basis_surface)) OR (vsense = (v2 > v1))); END_ENTITY; - - rectangular_trimmed_surface ENTITY reparametrised_composite_curve_segment SUBTYPE OF (composite_curve_segment) ; param_length : parameter_value; WHERE wr1: (param_length > 0); END_ENTITY; - - reparametrised_composite_curve_segment ENTITY representation;
name			: label;
items			: SET [1:?] OF representation_item;
context_of_items			: representation_context;
END_ENTITY; - - representation ENTITY representation_context;
context_identifier			: identifier;
context_type			: text;
INVERSE representations_in_context : SET [1:?] OF representation FOR context_of_items ; END_ENTITY; - - representation_context ENTITY representation_item; name : label; WHERE wr1: (SIZEOF(using_representations(SELF)) > 0); END_ENTITY; - - representation_item ENTITY representation_map;
mapping_origin					: representation_item;
mapped_representation					: representation;
INVERSE map_usage : SET [1:?] OF mapped_item FOR mapping_source; WHERE wr1: item_in_context (SELF.mapping_origin, SELF.mapped_representation. context_of_items) ; END_ENTITY; - - representation_map ENTITY representation_relationship;
name			: label;
description			: text;
rep_1			: representation;
rep_2			: representation;
END_ENTITY; - - representation_relationship ENTITY representation_relationship_with_transformation SUBTYPE OF (representation_relationship) ; transformation_operator : transformation; WHERE wr1: (SELF\representation_relationship.rep_1.context_of_items :< >: SELF\representation_relationship.rep_2.context_of_items) ; END_ENTITY; - - representation_relationship_with_transformation ENTITY seam_curve SUBTYPE OF (surface_curve) ; WHERE wr1: (SIZEOF(SELF\surface_curve.associated_geometry) = 2); wr2 : (associated_surface (SELF\surface_curve.associated_geometry[1]) = associated_surface (SELF\surface_curve.associated_geometry [ 2])); wr3: ('CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF(SELF\surface_curve. associated_geometry [1])) ; wr4: ('CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF(SELF\surface_curve. associated_geometry [2])) ; END_ENTITY; - - seam_curve ENTITY security_classification;
name			: label ;
purpose			: text;
security_level			: security_classification_level;
END_ENTITY; - - security_classification ENTITY security_classification_assignment ABSTRACT SUPERTYPE; assigned_security_classification : security _classification; END_ENTITY; - - security_classification_assignment ENTITY security_classification_level ; name : label ; END_ENTITY; - - security_classification_level ENTITY serial_numbered_effectivity SUBTYPE OF (effectivity) ;
effectivity_start_id					: identifier;
effectivity_end_id					: OPTIONAL identifier;
END_ENTITY; - - serial_numbered_effectivity ENTITY shape_aspect;
name					: label;
description					: text;
of_shape					: product_definition_shape;
product_definitional					: LOGICAL;
END_ENTITY; - - shape_aspect ENTITY shape_aspect_relationship;
name					: label;
description					: text;
relating_shape_aspect					: shape_aspect;
related_shape_aspect					: shape_aspect;
END_ENTITY; - - shape_aspect_relationship ENTITY shape_definition_representation SUBTYPE OF (property_definition_representation) ; WHERE wr1: (('CONFIG_CONTROL_DESIGN.SHAPE_DEFINITION' IN TYPEOF (SELF. definition.definition)) OR ( 'CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION_SHAPE' IN TYPEOF ( SELF.definition))) ; wr2: ('CONFIG_CONTROL_DESIGN.SHAPE_REPRESENTATION' IN TYPEOF(SELF. used_representation)) ; END_ENTITY; - - shape_definition_representation ENTITY shape_representation SUBTYPE OF (representation) ; END_ENTITY; - - shape_representation ENTITY shape_representation_relationship SUBTYPE OF (representation_relationship) ; WHERE wr1: ('CONFIG_CONTROL_DESIGN.SHAPE_REPRESENTATION' IN (TYPEOF(SELF\ representation_relationship.rep_1) + TYPEOF(SELF\ representation_relationship.rep_2))) ; END_ENTITY; - - shape_representation_relationship ENTITY shell_based_surface_model SUBTYPE OF (geometric_representation_item) ; sbsm_boundary : SET [1:?] OF shell; WHERE wr1: constraints_geometry_shell_based_surface_model(SELF) ; END_ENTITY; - - shell_based_surface_model ENTITY shell_based_wireframe_model SUBTYPE OF (geometric_representation_item) ; sbwm_boundary : SET [1:?] OF shell; WHERE wr1: constraints_geometry_shell_based_wireframe_model(SELF);

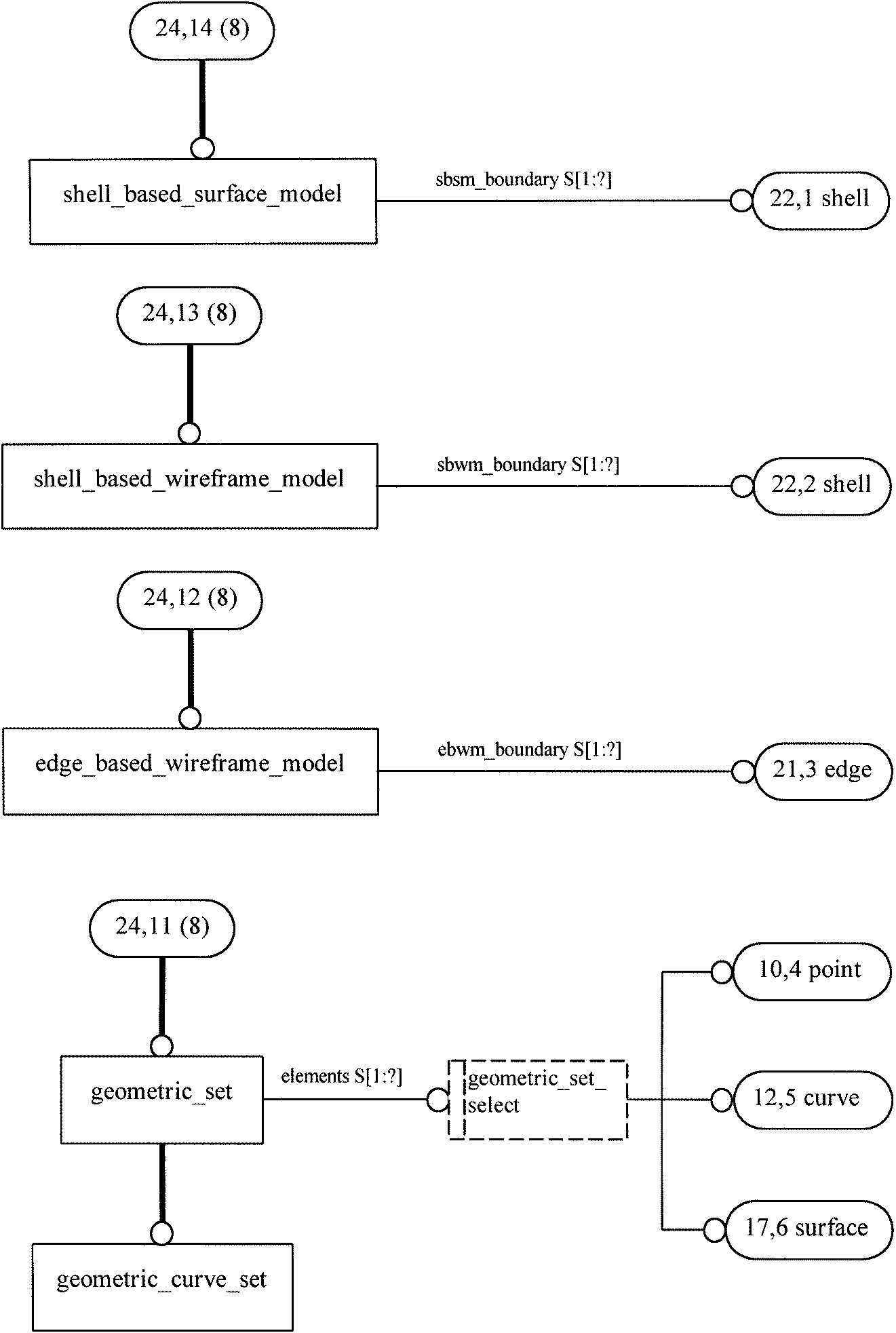

END_ENTITY; - - shell_based_wireframe_model ENTITY shell_based_wireframe_shape_representation SUBTYPE OF (shape_representation); WHERE wr1 : (SIZEOF (QUERY ( it <* SELF.items | (NOT (SIZEOF([ 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM', 'CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D'] * TYPEOF(it)) = 1)) )) = 0); wr2 : (SIZEOF (QUERY ( it <* SELF.items | (SIZEOF([ 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' , 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM'] * TYPEOF(it)) = 1) )) >= 1); wr3 : (SIZEOF (QUERY ( sbwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( ws <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.WIRE SHELL' IN TYPEOF(sb)) ) | (NOT (SIZEOF(QUERY ( eloop <* QUERY ( wsb <* ws\wire_shell. wire_shell_extent | ('CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF (wsb)) ) | (NOT (SIZEOF(QUERY ( el <* eloop\path. edge_list | (NOT ('CONFIG_CONTROL_DESIGN.EDGE_CURVE' IN TYPEOF (el.edge_element))) )) = 0)) )) =0)) )) = 0)) )) = 0 ); wr4 : (SIZEOF(QUERY ( sbwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( ws <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.WIRE_SHELL' IN TYPEOF(sb)) ) | (NOT (SIZEOF(QUERY ( eloop <* QUERY ( wsb <* ws\wire_shell. wire_shell_extent | ('CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(wsb)) ) | (NOT (SIZEOF(QUERY ( pline_el <* QUERY ( el <* eloop\path.edge_list | ( 'CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF ( el.edge_element\ edge_curve.edge_geometry)) ) | (NOT (SIZEOF(pline_el. edge_element\edge_curve.edge_geometry\polyline.points) >2)) )) =0)) )) =0)) )) =0)) )) =0);
wr5 : (SIZEOF(QUERY ( sbwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( ws <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.WIRE_SHELL' IN TYPEOF(sb)) ) | (NOT (SIZEOF(QUERY ( eloop <* QUERY ( wsb <* ws\wire_shell. wire_shell_extent | ( 'CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(wsb)) ) | (NOT (SIZEOF(QUERY ( el <* eloop\path. edge_list | (NOT valid_wireframe_edge_curve(el.edge_element \edge_curve.edge_geometry)) )) = 0)) )) = 0)) )) = 0)) )) = 0) ; wr6 : (SIZEOF(QUERY ( sbwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( ws <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.WIRE_SHELL' IN TYPEOF(sb)) ) | (NOT (SIZEOF(QUERY ( eloop <* QUERY ( wsb <* ws\wire_shell. wire_shell_extent | ('CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(wsb)) ) | (NOT (SIZEOF(QUERY ( el <* eloop\path. edge_list | (NOT (('CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF(el.edge_element.edge_start)) AND ( 'CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF(el. edge_element.edge_end)))) )) = 0)) )) = 0)) )) = 0)) )) = 0); wr7 : (SIZEOF (QUERY ( sbwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( ws <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.WIRE_SHELL' IN TYPEOF(sb)) ) | (NOT (SIZEOF(QUERY ( eloop <* QUERY ( wsb <* ws\wire_shell. wire_shell_extent | ('CONFIG_CONTROL_DESIGN.EDGE_LOOP' IN TYPEOF(wsb)) ) | (NOT (SIZEOF(QUERY ( el <* eloop\path. edge_list | (NOT (valid_wireframe_vertex_point(el. edge_element.edge_start\vertex_point.vertex_geometry) AND valid_wireframe_vertex_point (el.edge_element.edge_end\ vertex_point.vertex_geometry))) )) = 0)) )) = 0)) )) = 0)) )) = 0) ; wr8 : (SIZEOF(QUERY ( sbwm <* QUERY ( it <* SELF.items | (
'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( ws <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.WIRE_SHELL' IN TYPEOF(sb)) ) | (NOT (SIZEOF(QUERY ( vloop <* QUERY ( wsb <* ws\wire_shell. wire_shell_extent | ('CONFIG_CONTROL_DESIGN.VERTEX_LOOP' IN TYPEOF (wsb)) ) | (NOT ( 'CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF (vloop\ vertex_loop.loop_vertex))) )) = 0)) )) = 0)) )) = 0); wr9 : (SIZEOF(QUERY ( sbwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( ws <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.WIRE_SHELL' IN TYPEOF(sb)) ) | (NOT (SIZEOF(QUERY ( vloop <* QUERY ( wsb <* ws\wire_shell. wire_shell_extent | ('CONFIG_CONTROL_DESIGN.VERTEX_LOOP' IN TYPEOF (wsb)) ) | (NOT valid_wireframe_vertex_point(vloop\ vertex_loop.loop_vertex\vertex_point.vertex_geometry)) )) = 0)) )) = 0)) )) = 0 ); wr10: (SIZEOF(QUERY ( sbwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( vs <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.VERTEX_SHELL' IN TYPEOF(sb)) ) | ( NOT ('CONFIG_CONTROL_DESIGN.VERTEX_POINT' IN TYPEOF (vs\ vertex_shell.vertex_shell_extent.loop_vertex))) )) = 0)) )) = 0) ; wr11: (SIZEOF(QUERY ( sbwm <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.SHELL_BASED_WIREFRAME_MODEL' IN TYPEOF(it)) ) | (NOT (SIZEOF(QUERY ( vs <* QUERY ( sb <* sbwm\shell_based_wireframe_model.sbwm_boundary | ( 'CONFIG_CONTROL_DESIGN.VERTEX_SHELL' IN TYPEOF(sb)) ) | ( NOT valid_wireframe_vertex_point (vs\vertex_shell. vertex_shell_extent.loop_vertex\vertex_point. vertex_geometry)) )) = 0)) )) = 0); wr12: (SIZEOF(QUERY ( mi <* QUERY ( it <* SELF.items | ( 'CONFIG_CONTROL_DESIGN.MAPPED_ITEM' IN TYPEOF(it)) ) | (
NOT (('CONFIG_CONTROL_DESIGN.' + 'SHELL_BASED_WIREFRAME_SHAPE_REPRESENTATION') IN TYPEOF (mi \ mapped_item.mapping_source.mapped_representation))) )) = 0) ; wr13 : (SELF.context_of_items\geometric_representation_context. coordinate_space_dimension = 3); END_ENTITY; - - shell_based_wireframe_shape_representation ENTITY si_unit SUBTYPE OF (named_unit);
prefix		: OPTIONAL si_prefix;
name		: si_unit_name;
DERIVE SELF\named_unit.dimensions : dimensional_exponents := dimensions_for_si_unit (SELF.name) ; END_ENTITY; - - si_unit ENTITY solid_angle_measure_with_unit SUBTYPE OF (measure_with_unit) ; WHERE WR1: ('CONFIG_CONTROL_DESIGN.SOLID_ANGLE_UNIT' IN TYPEOF(SELF\ measure_with_unit.unit_component)) ; END_ENTITY; - - solid_angle_measure_with_unit ENTITY solid_angle_unit SUBTYPE OF (named_unit); WHERE wr1: ((SELF\named_unit.dimensions.length_exponent = 0) AND (SELF\ named_unit.dimensions.mass_exponent = 0) AND (SELF\ named_unit.dimensions.time_exponent = 0) AND (SELF\ named_unit.dimensions.electric_current_exponent = 0) AND ( SELF\named_unit.dimensions. thermodynamic_temperature_exponent = 0) AND (SELF\named_unit .dimensions.amount_of_substance_exponent = 0) AND (SELF\ named_unit.dimensions.luminous_intensity_exponent = 0)); END_ENTITY; - - solid_angle_unit ENTITY solid_model SUPERTYPE OF (manifold_solid_brep) SUBTYPE OF (geometric_representation_item) ; END_ENTITY; - - solid_model ENTITY specified_higher_usage_occurrence SUBTYPE OF (assembly_component_usage) ;
upper_usage			: assembly_component_usage;
next_usage			: next_assembly_usage_occurrence;
UNIQUE ur1 : upper_usage, next_usage ; WHERE wr1: (SELF : <>: upper_usage); wr2: (SELF\product_definition_relationship. relating_product_definition :=: upper_usage. relating_product_definition) ; wr3: (SELF\product_definition_relationship. related_product_definition :=: next_usage. related_product_definition) ; wr4: (upper_usage.related_product_definition :=: next_usage. relating_product_definition) ; wr5: (NOT ('CONFIG_CONTROL_DESIGN.PROMISSORY_USAGE_OCCURRENCE' IN TYPEOF (upper_usage))) ; END_ENTITY; - - specified_higher_usage_occurrence ENTITY spherical_surface SUBTYPE OF (elementary_surface) ; radius : positive_length_measure; END_ENTITY; - - spherical_surface ENTITY start_request SUBTYPE OF (action_request_assignment) ; items : SET [1:?] OF start_request_item; END_ENTITY; - - start_request ENTITY start_work SUBTYPE OF (action_assignment) ; items : SET [1:?] OF work_item; END_ENTITY; - - start_work ENTITY supplied_part_relationship SUBTYPE OF (product_definition_relationship) ; END_ENTITY; - - supplied_part_relationship ENTITY surface SUPERTYPE OF (ONEOF (elementary_surface, swept_surface,bounded_surface, offset_surface, surface_replica))

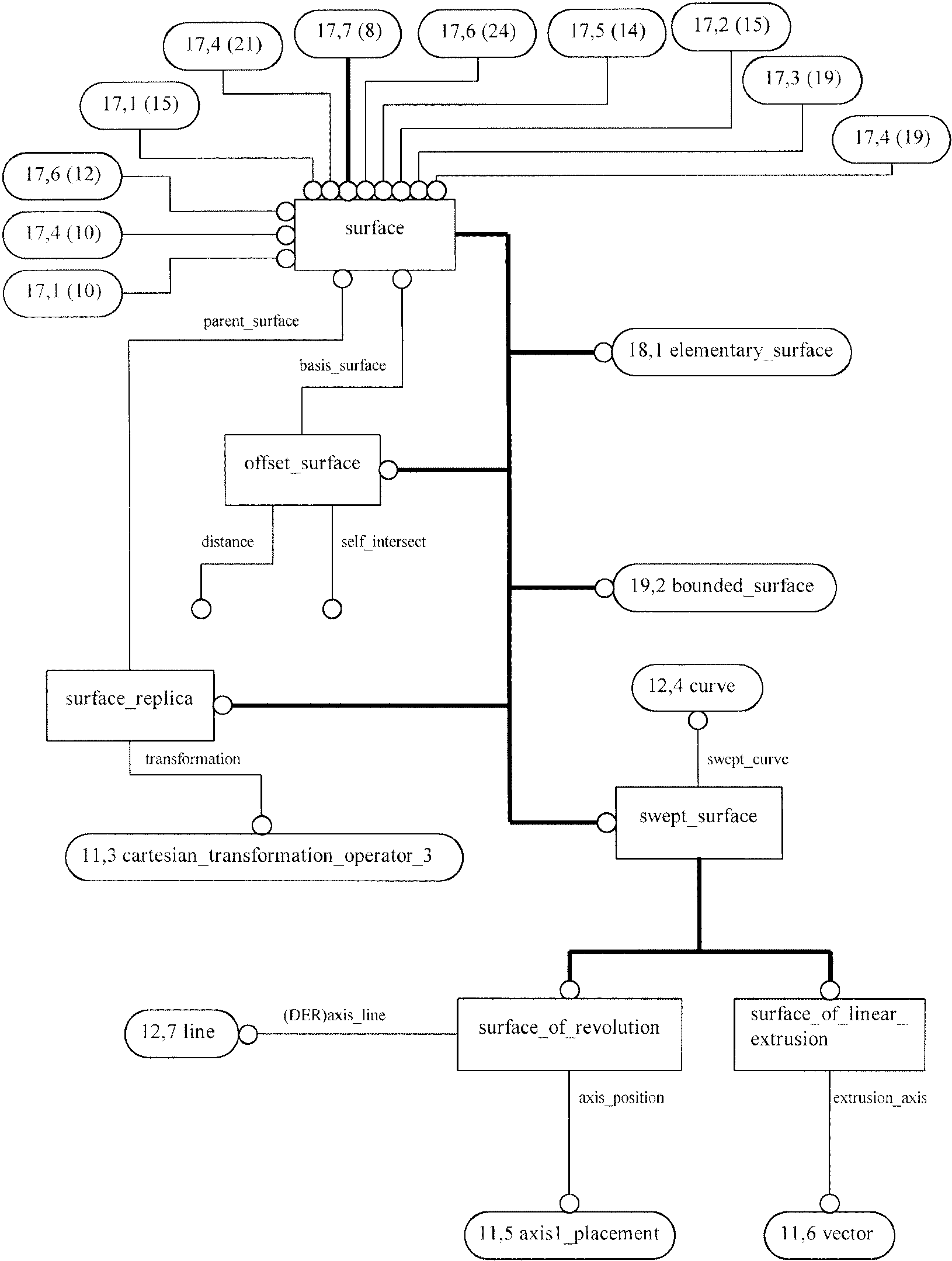

SUBTYPE OF (geometric_representation_item) ; END_ENTITY; - - surface
ENTITY surface_curve SUPERTYPE OF (ONEOF (intersection_curve, seam_curve) ANDOR bounded_surface_curve) SUBTYPE OF (curve) ;
curve_3d					: curve ;
associated_geometry					: LIST [1:2] OF pcurve_or_surface;
master_representation					: preferred_surface_curve_representation;
DERIVE basis_surface : SET [1:2] OF surface : = get_basis_surface (SELF); WHERE wr1: (curve_3d.dim = 3); wr2: (('CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF(associated_geometry[ 1])) OR (master_representation < > pcurve_s1)); wr3: (('CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF (associated_geometry [ 2])) OR (master_representation < > pcurve_s2)); wr4: (NOT ('CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF (curve_3d))); END_ENTITY; - - surface_curve ENTITY surface_of_linear_extrusion SUBTYPE OF (swept_surface) ; extrusion_axis : vector; END_ENTITY; - - surface_of_linear_extrusion ENTITY surface_of_revolution SUBTYPE OF (swept_surface); axis_position : axis1_placement; DERIVE axis_line : line : = dummy_gri | | curve ( ) | | line (axis_position. location, dummy_gri | | vector(axis_position.z, 1)); END_ENTITY; - - surface_of_revolution ENTITY surface_patch SUBTYPE OF (founded_item);
parent_surface			: bounded_surface;
u_transition			: transition_code;
v_transition			: transition_code;
u_sense			: BOOLEAN;
v_sense			: BOOLEAN;
INVERSE
using_surfaces			: BAG [1:?] OF rectangular_composite_surface FOR segments;
WHERE wr1: (NOT ('CONFIG_CONTROL_DESIGN.CURVE_BOUNDED_SURFACE' IN TYPEOF ( parent_surface))) ; END_ENTITY; - - surface_patch ENTITY surface_replica SUBTYPE OF (surface);
parent_surface			: surface;
transformation			: cartesian_transformation_operator_3d;
WHERE wr1: acyclic_surface_replica (SELF, parent_surface) ; END_ENTITY; - - surface_replica ENTITY swept_surface SUPERTYPE OF (ONEOF (surface_of_linear_extrusion, surface_of_revolution)) SUBTYPE OF (surface) ; swept_curve : curve; END_ENTITY; - - swept_surface ENTITY topological_representation_item SUPERTYPE OF (ONEOF (vertex, edge, face_bound, face, vertex_shell, wire_shell, connected_edge_set, connected_face_set, loop ANDOR path)) SUBTYPE OF (representation_item) ; END_ENTITY; - - topological_representation_item ENTITY toroidal_surface SUBTYPE OF (elementary_surface) ;
major_radius			: positive_length_measure;
minor_radius			: positive_length_measure;
END_ENTITY; - - toroidal_surface ENTITY trimmed_curve SUBTYPE OF (bounded_curve) ;
basis_curve					: curve;
trim_1					: SET [1:2] OF trimming_select;
trim_2					: SET [1:2] OF trimming_select;
sense_agreement					: BOOLEAN;
master_representation					: trimming_preference;
WHERE wr1: ((HIINDEX(trim_1) = 1) OR (TYPEOF(trim_1[1]) < > TYPEOF (trim_1 [2]))); wr2: ((HIINDEX(trim_2) = 1) OR (TYPEOF(trim_2[1]) < > TYPEOF (trim_2 [2]))); END_ENTITY; - - trimmed_curve ENTITY uncertainty_measure_with_unit SUBTYPE OF (measure_with_unit) ;
name			: label;
description			: text;
WHERE wr1: valid_measure_value (SELF\measure_with_unit.value_component) ; END_ENTITY; - - uncertainty_measure_with_unit ENTITY uniform_curve SUBTYPE OF (b_spline_curve) ; END_ENTITY; - - uniform_curve ENTITY uniform_surface SUBTYPE OF (b_spline_surface) ; END_ENTITY; - - uniform_surface ENTITY vector SUBTYPE OF (geometric_representation_item) ;
orientation		: direction;
magnitude		: length_measure;
WHERE wr1: (magnitude >= 0); END_ENTITY; - - vector ENTITY versioned_action_request ;
id			: identifier;
version			: label;
purpose			: text;
description			: text;
END_ENTITY; - - versioned_action_request ENTITY vertex SUBTYPE OF (topological_representation_item) ; END_ENTITY; - - vertex ENTITY vertex_loop SUBTYPE OF (loop) ; loop_vertex : vertex; END_ENTITY; - - vertex_loop ENTITY vertex_point SUBTYPE OF (vertex, geometric_representation_item) ; vertex geometry : point; END_ENTITY; - - vertex_point ENTITY vertex_shell SUBTYPE OF (topological_representation_item) ; vertex_shell_extent : vertex_loop; END_ENTITY; - - vertex_shell ENTITY volume_measure_with_unit SUBTYPE OF (measure_with_unit) ; WHERE wr1: ('CONFIG_CONTROL_DESIGN.VOLUME_UNIT' IN TYPEOF(SELF\ measure_with_unit.unit component)) ; END_ENTITY; - - volume_measure_with_unit ENTITY volume_unit SUBTYPE OF (named_unit); WHERE wr1: ((SELF\named_unit.dimensions.length_exponent = 3) AND (SELF\ named_unit.dimensions.mass_exponent = 0) AND (SELF\ named_unit.dimensions.time_exponent = 0) AND (SELF\ named_unit.dimensions.electric_current_exponent = 0) AND ( SELF\named_unit.dimensions. thermodynamic_temperature_exponent = 0) AND (SELF\named_unit
.dimensions.amount_of_substance_exponent = 0) AND (SELF\ named_unit.dimensions.luminous_intensity_exponent = 0)); END_ENTITY; - - volume_unit ENTITY week_of_year_and_day_date SUBTYPE OF (date) ;
week_component			: week_in_year_number;
day_component			: OPTIONAL day_in_week_number;
END_ENTITY; - - week_of_year_and_day_date ENTITY wire_shell SUBTYPE OF (topological_representation_item); wire_shell_extent : SET [1:?] OF loop; WHERE wr1: (NOT mixed_loop_type_set (wire_shell_extent )); END_ENTITY; - - wire_shell RULE acu_requires_security_classification FOR (assembly_component_usage, cc_design_security_classification) ; WHERE wr1: (SIZEOF(QUERY ( acu <* assembly_component_usage | (NOT (SIZEOF( QUERY ( ccdsc <* cc_design_security_classification | (acu IN ccdsc.items) )) = 1)) )) = 0); END_RULE; - - acu_requires_security_classification RULE application_context_requires_ap_definition FOR (application_context, application_protocol_definition) ; WHERE wr1: (SIZEOF(QUERY ( ac <* application_context | (NOT (SIZEOF( QUERY ( apd <* application_protocol_definition | ((ac :=: apd. application) AND (apd. application_interpreted_model_schema_name = 'config_control_design')) )) = 1)) )) = 0); END_RULE; - - application_context_requires_ap_definition RULE approval_date_time_constraints FOR (approval_date_time) ; WHERE wr1: (SIZEOF (QUERY ( adt <* approval_date_time | (NOT (SIZEOF(TYPEOF( adt.date_time) * ['CONFIG_CONTROL_DESIGN.DATE_AND_TIME']) = 1)) )) = 0); END_RULE; - - approval_date_time_constraints RULE approval_person_organization_constraints FOR ( approval_person_organization) ; WHERE
wr1: (SIZEOF (QUERY( apo <* approval_person_organization | (NOT ( SIZEOF (TYPEOF(apo.person_organization) * [ 'CONFIG_CONTROL_DESIGN.PERSON_AND_ORGANIZATION' ]) = 1)) )) = 0 ); END_RULE; - - approval_person_organization_constraints RULE approval_requires_approval_date_time FOR (approval, approval_date_time) ; WHERE wr1: (SIZEOF (QUERY ( app <* approval | (NOT (SIZEOF (QUERY ( adt <* approval_date_time | (app :=: adt.dated_approval) )) = 1)) )) = 0) ; END_RULE; - - approval_requires_approval_date_time RULE approval_requires_approval_person_organization FOR (approval, approval_person_organization) ; WHERE wr1: (SIZEOF(QUERY ( app <* approval | (NOT (SIZEOF(QUERY ( apo <* approval_person_organization | (app :=: apo. authorized_approval) )) >= 1)) )) = 0); END_RULE; - - approval_requires_approval_person_organization RULE approvals_are_assigned FOR (approval, approval_assignment); WHERE wr1: (SIZEOF (QUERY ( app <* approval | (NOT (SIZEOF(QUERY ( aa <* approval_assignment | (app :=: aa.assigned_approval) )) >= 1)) )) = 0); END_RULE; - - approvals_are_assigned RULE as_required_quantity FOR (measure_with_unit) ; WHERE wr1: (SIZEOF(QUERY ( m <* measure_with_unit | (( 'CONFIG_CONTROL_DESIGN.DESCRIPTIVE_MEASURE' IN TYPEOF(m. value_component)) AND (NOT (m.value_component = 'as_required' ))) )) = 0); END_RULE; - - as_required_quantity RULE certification_requires_approval FOR (certification, cc_design_approval) ;
WHERE wr1: (SIZEOF (QUERY ( cert <* certification | (NOT (SIZEOF( QUERY ( ccda <* cc_design_approval | (cert IN ccda.items) )) = 1)) )) = 0) ; END_RULE; - - certification_requires_approval RULE certification_requires_date_time FOR (certification, cc_design_date_and_time_assignment) ; WHERE wr1: (SIZEOF(QUERY ( cert <* certification | (NOT (SIZEOF ( QUERY ( ccdta <* cc_design_date_and_time_assignment | (cert IN ccdta.items) )) = 1)) )) = 0); END_RULE; - - certification_requires_date_time RULE change_request_requires_approval FOR (change_request, cc_design_approval) ; WHERE wr1: (SIZEOF(QUERY ( cr <* change_request | (NOT (SIZEOF ( QUERY ( ccda <* cc_design_approval | (cr IN ccda.items) )) = 1)) )) = 0 ); END_RULE; - - change_request_requires_approval RULE change_request_requires_date_time FOR (change_request, cc_design_date_and_time_assignment); WHERE wr1: (SIZEOF(QUERY ( cr <* change_request | (NOT (SIZEOF ( QUERY ( ccdta <* cc_design_date_and_time_assignment | (cr IN ccdta.items) )) = 1)) )) = 0); END_RULE; - - change_request_requires_date_time RULE change_request_requires_person_organization FOR (change_request, cc_design_person_and_organization_assignment) ; WHERE wr1: (SIZEOF (QUERY ( cr <* change_request | (NOT (SIZEOF( QUERY ( ccpoa <* cc_design_person_and_organization_assignment | (cr IN ccpoa.items) )) >= 1)) )) = 0); END_RULE; - - change_request_requires_person_organization RULE change_requires_approval FOR (change, cc_design_approval);
WHERE wr1: (SIZEOF (QUERY ( chg <* change | (NOT (SIZEOF (QUERY ( ccda <* cc_design_approval | (chg IN ccda.items) )) = 1)) )) = 0); END_RULE; - - change_requires_approval RULE change_requires_date_time FOR (change, cc_design_date_and_time_assignment) ; WHERE wr1: (SIZEOF(QUERY ( chg <* change | (NOT (SIZEOF(QUERY ( ccdta <* cc_design_date_and_time_assignment | ((chg IN ccdta.items) AND (ccdta.role.name = 'start_date')) )) = 1)) )) = 0); END_RULE; - - change_requires_date_time RULE compatible_dimension FOR (cartesian_point, direction, representation_context, geometric_representation_context) ; WHERE wr1: (SIZEOF(QUERY ( x <* cartesian_point | (SIZEOF(QUERY ( y <* geometric_representation_context | (item_in_context(x,y) AND ( HIINDEX(x.coordinates) < > y.coordinate_space_dimension)) )) > 0) )) = 0); wr2: (SIZEOF(QUERY ( x <* direction | (SIZEOF(QUERY ( y <* geometric_representation_context | (item_in_context(x,y) AND ( HIINDEX(x.direction_ratios) < > y.coordinate_space_dimension)) )) > 0) )) = 0); END_RULE; - - compatible_dimension RULE configuration_item_requires_approval FOR (configuration_item, cc_design_approval) ; WHERE wr1: (SIZEOF(QUERY ( ci <* configuration_item | (NOT (SIZEOF( QUERY ( ccda <* cc_design_approval | (ci IN ccda.items) )) = 1)) )) = 0 ); END_RULE; - - configuration_item_requires_approval RULE configuration_item_requires_person_organization FOR ( configuration_item, cc_design_person_and_organization_assignment); WHERE
wr1: (SIZEOF (QUERY ( ci <* configuration_item | (NOT (SIZEOF( QUERY ( ccdpoa <* cc_design_person_and_organization_assignment | (ci IN ccdpoa.items) )) = 1)) )) = 0); END_RULE; - - configuration_item_requires_person_organization RULE contract_requires_approval FOR (contract, cc_design_approval) ; WHERE wr1: (SIZEOF (QUERY ( c <* contract | (NOT (SIZEOF (QUERY ( ccda <* cc_design_approval | (c IN ccda.items) )) = 1)) )) = 0); END_RULE; - - contract_requires_approval RULE contract_requires_person_organization FOR (contract, cc_design_person_and_organization_assignment) ; WHERE wr1: (SIZEOF (QUERY ( c <* contract | (NOT (SIZEOF (QUERY ( ccdpoa <* cc_design_person_and_organization_assignment | (с IN ccdpoa. items) )) = 1)) )) = 0); END_RULE; - - contract_requires_person_organization RULE coordinated_assembly_and_shape FOR (next_assembly_usage_occurrence) ; WHERE wr1: (SIZEOF (QUERY ( nauo <* next_assembly_usage_occurrence | (NOT assembly_shape_is_defined (nauo, 'CONFIG_CONTROL_DESIGN')) )) = 0) ; END_RULE; - - coordinated_assembly_and_shape RULE dependent_instantiable_action_directive FOR (action_directive) ; WHERE wr1: (SIZEOF(QUERY ( ad <* action_directive | (NOT (SIZEOF(USEDIN(ad, ' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_action_directive RULE dependent_instantiable_approval_status FOR (approval_status) ; WHERE wr1: (SIZEOF (QUERY ( ast <* approval_status | (NOT (SIZEOF (USEDIN(ast, ' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_approval_status RULE dependent_instantiable_certification_type FOR (certification_type) ;
WHERE wr1: (SIZEOF(QUERY ( ct <* certification_type | (NOT (SIZEOF(USEDIN(ct, ' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_certification_type RULE dependent_instantiable_contract_type FOR (contract_type) ; WHERE wr1: (SIZEOF(QUERY ( ct <* contract_type | (NOT (SIZEOF(USEDIN(ct,' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_contract_type RULE dependent_instantiable_date FOR (date); WHERE wr1: (SIZEOF(QUERY ( dt <* date | (NOT (SIZEOF(USEDIN(dt,' ')) >= 1)) )) = 0) ; END_RULE; - - dependent_instantiable_date RULE dependent_instantiable_date_time_role FOR (date_time_role) ; WHERE wr1: (SIZEOF(QUERY ( dtr <* date_time_role | (NOT (SIZEOF(USEDIN(dtr, ' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_date_time_role RULE dependent_instantiable_document_type FOR (document_type) ; WHERE wr1: (SIZEOF(QUERY ( dt <* document_type | (NOT (SIZEOF(USEDIN(dt,' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_document_type RULE dependent_instantiable_named_unit FOR (named_unit); WHERE wr1: (SIZEOF(QUERY ( nu <* named_unit | (NOT (SIZEOF(USEDIN(nu,' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_named_unit RULE dependent_instantiable_parametric_representation_context FOR ( parametric_representation_context ) ;
WHERE wr1: (SIZEOF(QUERY ( prc <* parametric_representation_context | (NOT ( SIZEOF(USEDIN( prc,' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_parametric_representation_context RULE dependent_instantiable_person_and_organization_role FOR ( person_and_organization_role) ; WHERE wr1: (SIZEOF(QUERY ( poar <* person_and_organization_role | (NOT ( SIZEOF(USEDIN(poar,' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_person_and_organization_role RULE dependent_instantiable_representation_item FOR (representation_item) ; WHERE wr1: (SIZEOF(QUERY ( ri <* representation_item | (NOT (SIZEOF(USEDIN( ri, ' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_representation_item RULE dependent_instantiable_security_classification_level FOR ( security_classification_level) ; WHERE wr1: (SIZEOF(QUERY ( scl <* security_classification_level | (NOT ( SIZEOF(USEDIN(scl, ' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_security_classification_level RULE dependent_instantiable_shape_representation FOR ( shape_representation) ; WHERE wr1: (SIZEOF (QUERY ( sr <* shape_representation | (NOT (SIZEOF(USEDIN( sr, ' ')) >= 1)) )) = 0); END_RULE; - - dependent_instantiable_shape_representation RULE design_context_for_property FOR (product_definition) ; WHERE wr1: (SIZEOF(QUERY ( pd <* product_definition | ((SIZEOF(USEDIN(pd, 'CONFIG_CONTROL_DESIGN.' + 'PROPERTY_DEFINITION.DEFINITION') + QUERY ( pdr <* USEDIN( pd, 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_RELATIONSHIP.RELATED_PRODUCT_DEFINITION' ) | (SIZEOF(USEDIN(pdr,
'CONFIG_CONTROL_DESIGN.PROPERTY_DEFINITION.' + 'DEFINITION')) >= 1) )) >= 1) AND (NOT ( 'CONFIG_CONTROL_DESIGN.DESIGN_CONTEXT' IN TYPEOF(pd. frame_of_reference)))) )) = 0); END_RULE; - - design_context_for_property RULE document_to_product_definition FOR ( cc_design_specification_reference) ; WHERE wr1: (SIZEOF(QUERY ( sp <* cc_design_specification_reference | (NOT (( (('CONFIG_CONTROL_DESIGN.DOCUMENT_RELATIONSHIP.' + 'RELATING_DOCUMENT') IN ROLESOF(sp\document_reference. assigned_document)) AND (SIZEOF(QUERY ( it <* sp.items | (NOT ('CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION' IN TYPEOF (it))) )) = 0)) OR (NOT (('CONFIG_CONTROL_DESIGN.DOCUMENT_RELATIONSHIP." + 'RELATING_DOCUMENT') IN ROLESOF(sp\document_reference. assigned document))))) )) = 0); END_RULE; - - document_to_product_definition RULE effectivity_requires_approval FOR (effectivity, cc_design_approval); WHERE wr1: (SIZEOF(QUERY ( eff <* effectivity | (NOT (SIZEOF ( QUERY ( ccda <* cc_design_approval | (eff IN ccda.items) )) = 1)) )) = 0); END_RULE; - - effectivity_requires_approval RULE geometric_representation_item_3d FOR (geometric_representation_item) ; WHERE wr1: (SIZEOF(QUERY ( gri <* geometric_representation_item | (NOT (( dimension_of(gri) = 3) OR (SIZEOF(QUERY ( ur <* using_representations (gri) | ( 'CONFIG_CONTROL_DESIGN.DEFINITIONAL_REPRESENTATION' IN TYPEOF ( ur)) )) > 0))) )) = 0); END_RULE; - - geometric_representation_item_3d RULE global_unit_assignment FOR (global_unit_assigned_context);
WHERE wr1: (SIZEOF(QUERY ( guac <* global_unit_assigned_context | (NOT ( SIZEOF(guac.units) = 3)) )) = 0); wr2: (SIZEOF(QUERY ( guac <* global_unit_assigned_context | (NOT (( SIZEOF(QUERY ( u <* guac.units | ( 'CONFIG_CONTROL_DESIGN.LENGTH_UNIT' IN TYPEOF (u)) )) = 1) AND (SIZEOF(QUERY ( u <* guac.units | ( 'CONFIG_CONTROL_DESIGN.PLANE_ANGLE_UNIT' IN TYPEOF (u)) )) = 1) AND (SIZEOF(QUERY ( u <* guac.units | ( 'CONFIG_CONTROL_DESIGN.SOLID_ANGLE_UNIT' IN TYPEOF (u)) )) = 1))) )) = 0); END_RULE; - - global_unit_assignment RULE no_shape_for_make_from FOR (design_make_from_relationship) ; WHERE wr1: (SIZEOF(QUERY ( dmfr <* design_make_from_relationship | (NOT ( SIZEOF(QUERY ( pd <* USEDIN(dmfr,'CONFIG_CONTROL_DESIGN.' + 'PROPERTY_DEFINITION.DEFINITION') | ( 'CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION_SHAPE' IN TYPEOF(pd)) )) = 0)) )) = 0); END_RULE; - - no_shape_for_make_from RULE no_shape_for_supplied_part FOR (supplied_part_relationship) ; WHERE wr1: (SIZEOF(QUERY ( spr <* supplied_part_relationship | (NOT (SIZEOF ( QUERY ( pd <* USEDIN (spr, 'CONFIG_CONTROL_DESIGN.' + 'PROPERTY_DEFINITION.DEFINITION') | ( 'CONFIG_CONTROL_DESIGN.PRODUCT_DEFINITION_SHAPE' IN TYPEOF(pd)) )) = 0)) )) = 0); END_RULE; - - no_shape_for_supplied_part RULE product_concept_requires_configuration_item FOR (product_concept, configuration_item) ; WHERE wr1: (SIZEOF(QUERY ( pc <* product_concept | (NOT (SIZEOF( QUERY ( ci <* configuration_item | (pc :=: ci.item_concept) )) >= 1)) )) = 0);
END_RULE; - - product_concept_requires_configuration_item RULE product_definition_requires_approval FOR (product_definition, cc_design_approval) ; WHERE wr1: (SIZEOF(QUERY ( pd <* product_definition | (NOT (SIZEOF ( QUERY ( ccda <* cc_design_approval | (pd IN ccda.items) )) = 1)) )) = 0) ; END_RULE; - - product_definition_requires_approval RULE product_definition_requires_date_time FOR (product_definition, cc_design_date_and_time_assignment) ; WHERE wr1: (SIZEOF(QUERY ( pd <* product_definition | (NOT (SIZEOF ( QUERY ( ccdta <* cc_design_date_and_time_assignment | (pd IN ccdta.items) )) = 1)) )) = 0); END_RULE; - - product_definition_requires_date_time RULE product_definition_reguires_person_organization FOR ( product_definition, cc_design_person_and_organization_assignment) ; WHERE wr1: (SIZEOF(QUERY ( pd <* product_definition | (NOT (SIZEOF( QUERY ( ccdpoa <* cc_design_person_and_organization_assignment | (pd IN ccdpoa.items) )) = 1)) )) = 0); END_RULE; - - product_definition_reguires_person_organization RULE product_requires_person_organization FOR (product, cc_design_person_and_organization_assignment) ; WHERE wr1: (SIZEOF(QUERY ( prod <* product | (NOT (SIZEOF(QUERY ( ccdpoa <* cc_design_person_and_organization_assignment | (prod IN ccdpoa .items) )) = 1)) )) = 0); END_RULE; - - product_reguires_person_organization RULE product_requires_product_category FOR (product, product_related_product_category) ; WHERE
wr1: (SIZEOF(QUERY ( prod <* product | (NOT (SIZEOF(QUERY ( prpc <* product_related_product_category | ((prod IN prpc.products) AND (prpc.name IN ['assembly', 'inseparable_assembly', 'detail', 'customer_furnished_equipment'])) )) = 1)) )) = 0); END_RULE; - - product_requires_product_category RULE product_requires_version FOR (product, product_definition_formation) ; WHERE wr1: (SIZEOF(QUERY ( prod <* product | (NOT (SIZEOF(QUERY ( pdf <* product_definition_formation | (prod :=: pdf.of_product) )) >= 1)) )) = 0); END_RULE; - - product_requires_version RULE product_version_requires_approval FOR (product_definition_formation, cc_design_approval) ; WHERE wr1: (SIZEOF(QUERY ( pdf <* product_definition_formation | (NOT ( SIZEOF(QUERY ( ccda <* cc_design_approval | (pdf IN ccda.items) )) = 1)) )) = 0); END_RULE; - - product_version_requires_approval RULE product_version_requires_person_organization FOR ( product_definition_formation, cc_design_person_and_organization_assignment) ; WHERE wr1: (SIZEOF(QUERY ( pdf <* product_definition_formation | (NOT ( SIZEOF(QUERY ( ccdpoa <* cc_design_person_and_organization_assignment | ((pdf IN ccdpoa .items) AND (ccdpoa.role.name = 'creator')) )) = 1)) )) = 0); wr2: (SIZEOF(QUERY ( pdf <* product_definition_formation | (NOT ( SIZEOF(QUERY ( ccdpoa <* cc_design_person_and_organization_assignment | ( (pdf IN ccdpoa .items) AND (ccdpoa.role.name IN ['design_supplier', 'part_supplier'])) )) >= 1)) )) = 0); END_RULE; - - product_version_requires_person_organization RULE product_version_requires_security_classification FOR (
product_definition_formation, cc_design_security_classification) ; WHERE wr1: (SIZEOF(QUERY ( pdf <* product_definition_formation | (NOT ( SIZEOF(QUERY ( ccdsc <* cc_design_security_classification | ( pdf IN ccdsc.items) )) = 1)) )) = 0); END_RULE; - - product_version_requires_security_classification RULE restrict_action_request_status FOR (action_request_status); WHERE wr1: (SIZEOF(QUERY ( ars <* action_request_status | (NOT (ars.status IN ['proposed', 'in_work', 'issued', 'hold' ])) )) = 0); END_RULE; - - restrict_action_request_status RULE restrict_approval_status FOR (approval_status); WHERE wr1: (SIZEOF(QUERY ( ast <* approval_status | (NOT (ast.name IN [ 'approved', 'not_yet_approved', 'disapproved', 'withdrawn' ])) )) = 0) ; END_RULE; - - restrict_approval_status RULE restrict_certification_type FOR (certification_type) ; WHERE wr1: (SIZEOF (QUERY ( ct <* certification_type | (NOT (ct.description IN ['design_supplier', 'part_supplier'])) )) = 0); END_RULE; - - restrict_certification_type RULE restrict_contract_type FOR (contract_type) ; WHERE wr1: (SIZEOF (QUERY ( ct <* contract_type | (NOT (ct.description IN [ 'fixed_price', 'cost_plus' ])) )) = 0); END_RULE; - - restrict_contract_type RULE restrict_date_time_role FOR (date_time_role) ; WHERE wr1: (SIZEOF(QUERY ( dtr <* date_time_role | (NOT (dtr.name IN [ 'creation_date', 'request_date', 'release_date', 'start_date', 'contract_date', 'certification_date', 'sign_off_date',
'classification_date', 'declassification_date'])) )) = 0); END_RULE; - - restrict_date_time_role RULE restrict_document_type FOR (document_type) ; WHERE wr1: (SIZEOF(QUERY ( dt <* document_type | (NOT (dt.product_data_type IN [ 'material_specification', 'process_specification', 'design_specification', 'surface_finish_specification', 'cad_filename', 'drawing' ])) )) = 0 ) ; END_RULE; - - restrict_document_type RULE restrict_person_organization_role FOR (person_and_organization_role) ; WHERE wr1: (SIZEOF(QUERY ( por <* person_and_organization_role | (NOT (por. name IN ['request_recipient', 'initiator', 'part_supplier', 'design_supplier', 'configuration_manager', 'contractor', 'classification_officer', 'creator', 'design_owner' ])) )) = 0); END_RULE; - - restrict_person_organization_role RULE restrict_product_category_value FOR ( product_related_product_category) ; WHERE wr1: (SIZEOF(QUERY ( prpc <* product_related_product_category | (NOT ( prpc.name IN ['assembly', 'detail', 'customer_furnished_equipment', 'inseparable_assembly', 'cast', 'coined', 'drawn', 'extruded', 'forged', 'formed', 'machined', 'molded', 'rolled', ' sheared'])) )) = 0); END_RULE; - - restrict_product_category_value RULE restrict_security_classification_level FOR ( security_classification_level) ; WHERE wr1: (SIZEOF(QUERY ( scl <* security_classification_level | (NOT (scl. name IN ['unclassified', 'classified', 'proprietary', 'confidential', 'secret', 'top_secret' ])) )) = 0); END_RULE; - - restrict_security_classification_level
RULE security_classification_optional_date_time FOR ( security_classification, cc_design_date_and_time_assignment) ; WHERE wr1: (SIZEOF(QUERY ( sc <* security_classification | (NOT (SIZEOF ( QUERY ( ccdta <* cc_design_date_and_time_assignment | ((sc IN ccdta.items) AND ('declassification_date' = ccdta.role.name)) )) <= 1)) )) = 0); END_RULE; - - security_classification_optional_date_time RULE security_classification_requires_approval FOR ( security_classification, cc_design_approval) ; WHERE wr1: (SIZEOF(QUERY ( sc <* security_classification | (NOT (SIZEOF ( QUERY ( ccda <* cc_design_approval | (sc IN ccda.items) )) = 1)) )) = 0); END_RULE; - - security_classification_requires_approval RULE security_classification_requires_date_time FOR ( security_classification, cc_design_date_and_time_assignment) ; WHERE wr1: (SIZEOF(QUERY ( sc <* security_classification | (NOT (SIZEOF ( QUERY ( ccdta <* cc_design_date_and_time_assignment | ((sc IN ccdta.items) AND ('classification_date' = ccdta.role.name)) )) = 1)) )) = 0); END_RULE; - - security_classification_requires_date_time RULE security_classification_requires_person_organization FOR ( security_classification, cc_design_person_and_organization_assignment) ; WHERE wr1: (SIZEOF(QUERY ( sc <* security_classification | (NOT (SIZEOF ( QUERY ( ccdpoa <* cc_design_person_and_organization_assignment | (sc IN ccdpoa.items) )) = 1)) )) = 0); END_RULE; - - security_classification_requires_person_organization RULE start_request_requires_approval FOR (start_request, cc_design_approval) ; WHERE
wr1: (SIZEOF(QUERY ( sr <* start_request | (NOT (SIZEOF( QUERY ( ccda <* cc_design_approval | (sr IN ccda.items) )) = 1)) )) = 0); END_RULE; - - start_request_requires_approval RULE start_request_requires_date_time FOR (start_request, cc_design_date_and_time_assignment) ; WHERE wr1: (SIZEOF(QUERY ( sr <* start_request | (NOT (SIZEOF( QUERY ( ccdta <* cc_design_date_and_time_assignment | (sr IN ccdta.items) )) = 1)) )) = 0); END_RULE; - - start_request_requires_date_time RULE start_request_requires_person_organization FOR (start_request, cc_design_person_and_organization_assignment) ; WHERE wr1: (SIZEOF(QUERY ( sr <* start_request | (NOT (SIZEOF( QUERY ( ccdpoa <* cc_design_person_and_organization_assignment | (sr IN ccdpoa.items) )) >= 1)) )) = 0); END_RULE; - - start_request_requires_person_organization RULE start_work_requires_approval FOR (start_work, cc_design_approval); WHERE wr1: (SIZEOF(QUERY ( sw <* start_work | (NOT (SIZEOF(QUERY ( ccda <* cc_design_approval | (sw IN ccda.items) )) = 1)) )) = 0); END_RULE; - - start_work_requires_approval RULE start_work_requires_date_time FOR (start_work, cc_design_date_and_time_assignment); WHERE wr1: (SIZEOF(QUERY ( sw <* start_work | (NOT (SIZEOF(QUERY ( ccdta <* cc_design_date_and_time_assignment | ((sw IN ccdta.items) AND (ccdta.role.name = 'start_date')) )) = 1)) )) = 0); END_RULE; - - start_work_requires_date_time RULE subtype_mandatory_action FOR (action) ; WHERE wr1: (SIZEOF(QUERY ( act <* action | (NOT (
'CONFIG_CONTROL_DESIGN.DIRECTED_ACTION' IN TYPEOF(act))) )) = 0) ; END_RULE; - - subtype_mandatory_action RULE subtype_mandatory_effectivity FOR (effectivity) ; WHERE wr1: (SIZEOF(QUERY ( eff <* effectivity | (NOT ((SIZEOF ([ 'CONFIG_CONTROL_DESIGN.SERIAL_NUMBERED_EFFECTIVITY' , 'CONFIG_CONTROL_DESIGN.LOT_EFFECTIVITY' , 'CONFIG_CONTROL_DESIGN.DATED_EFFECTIVITY'] * TYPEOF(eff)) = 1) AND ('CONFIG_CONTROL_DESIGN.CONFIGURATION_EFFECTIVITY' IN TYPEOF(eff)))) )) = 0); END_RULE; - - subtype_mandatory_effectivity RULE subtype_mandatory_product_context FOR (product_context); WHERE wr1: (SIZEOF(QUERY ( pc <* product_context | (NOT ( 'CONFIG_CONTROL_DESIGN.MECHANICAL_CONTEXT' IN TYPEOF (pc))) )) = 0) ; END_RULE; - - subtype_mandatory_product_context RULE subtype_mandatory_product_definition_formation FOR ( product_definition_formation) ; WHERE wr1: (SIZEOF(QUERY ( pdf <* product_definition_formation | (NOT (( 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_FORMATION_WITH_SPECIFIED_SOURCE') IN TYPEOF (pdf))) )) = 0); END_RULE; - - subtype_mandatory_product_definition_formation RULE subtype_mandatory_product_definition_usage FOR ( product_definition_usage) ; WHERE wr1: (SIZEOF(QUERY ( pdu <* product_definition_usage | (NOT (( 'CONFIG_CONTROL_DESIGN.' + 'ASSEMBLY_COMPONENT_USAGE') IN TYPEOF (pdu))) )) = 0); END_RULE; - - subtype_mandatory_product_definition_usage
RULE subtype_mandatory_representation FOR (representation) ; WHERE wr1: (SIZEOF(QUERY ( rep <* representation | (NOT ( 'CONFIG_CONTROL_DESIGN.SHAPE_REPRESENTATION' IN TYPEOF (rep))) )) = 0 ) ; END_RULE; - - subtype_mandatory_representation RULE subtype_mandatory_representation_context FOR ( representation_context) ; WHERE wr1: (SIZEOF(QUERY ( rep_cntxt <* representation_context | (NOT ( 'CONFIG_CONTROL_DESIGN.GEOMETRIC_REPRESENTATION_CONTEXT' IN TYPEOF (rep_cntxt))) )) = 0); END_RULE; - - subtype_mandatory_representation_context RULE subtype_mandatory_shape_representation FOR (shape_representation) ; WHERE wr1: (SIZEOF(QUERY ( sr <* shape_representation | (NOT ((SIZEOF ([ 'CONFIG_CONTROL_DESIGN.' + 'ADVANCED_BREP_SHAPE_REPRESENTATION', 'CONFIG_CONTROL DESIGN.FACETED_BREP_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.MANIFOLD_SURFACE_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.' + 'EDGE_BASED_WIREFRAME_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.' + 'SHELL_BASED_WIREFRAME_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.' + 'GEOMETRICALLY_BOUNDED_SURFACE_SHAPE_REPRESENTATION', 'CONFIG_CONTROL_DESIGN.' + 'GEOMETRICALLY_BOUNDED_WIREFRAME_SHAPE_REPRESENTATION' ] * TYPEOF(sr)) = 1) OR (SIZEOF(QUERY ( it <* sr\representation. items | (NOT ('CONFIG_CONTROL_DESIGN.AXIS2_PLACEMENT_3D' IN TYPEOF (it))) )) = 0) OR (SIZEOF(QUERY ( sdr <* QUERY ( pdr <* USEDIN(sr, 'CONFIG_CONTROL_DESIGN.PROPERTY_DEFINITION_REPRESENTATION.' + 'USED_REPRESENTATION') | ( 'CONFIG_CONTROL_DESIGN.SHAPE_DEFINITION_REPRESENTATION' IN
TYPEOF (pdr)) ) | (NOT (SIZEOF ([ 'CONFIG_CONTROL_DESIGN.SHAPE_ASPECT', 'CONFIG_CONTROL_DESIGN.SHAPE_ASPECT_RELATIONSHIP'] * TYPEOF( sdr.definition.definition)) = 1)) )) = 0))) )) = 0); END_RULE; - - subtype_mandatory_shape_representation RULE unique_version_change_order_rule FOR (change) ; WHERE wr1: (SIZEOF (QUERY ( c <* change | (NOT unique_version_change_order(c. assigned_action)) )) = 0); END_RULE; - - unique_version_change_order_rule RULE versioned_action_request_reguires_solution FOR ( versioned_action_request, action_request_solution) ; WHERE wr1: (SIZEOF(QUERY ( ar <* versioned_action_request | (NOT (SIZEOF ( QUERY ( ars <* action_request_solution | (ar : = : ars. request) )) >= 1)) )) = 0); END_RULE; - - versioned_action_request_requires_solution RULE versioned_action_request_requires_status FOR ( versioned_action_request, action_request_status) ; WHERE wr1: (SIZEOF(QUERY ( ar <* versioned_action_request | (NOT (SIZEOF ( QUERY ( ars <* action_request_status | (ar : = : ars. assigned_request) )) = 1)) )) = 0); END_RULE; - - versioned_action_request_requires_status FUNCTION acyclic_curve_replica (rep: curve_replica; parent: curve): BOOLEAN; IF NOT ('CONFIG_CONTROL_DESIGN.CURVE_REPLICA' IN TYPEOF (parent)) THEN RETURN (TRUE) ; END_IF ; IF parent :=: rep THEN RETURN (FALSE); ELSE RETURN (acyclic_curve_replica (rep, parent\curve_replica.parent_curve)) ; END_IF;
END_FUNCTION; - - acyclic_curve_replica FUNCTION acyclic_mapped_representation(parent_set: SET OF representation; children_set: SET OF representation_item) : BOOLEAN; LOCAL
i	: INTEGER;
x	: SET OF representation_item;
y	: SET OF representation_item;
END_LOCAL ; x := QUERY ( z <* children_set | ('CONFIG_CONTROL_DESIGN.MAPPED_ITEM' IN TYPEOF (z)) ); IF SIZEOF(x) > 0 THEN REPEAT i := 1 TO HIINDEX(x) BY 1; IF x[i]\mapped_item.mapping_source.mapped_representation IN parent_set THEN RETURN (FALSE); END_IF ; IF NOT acyclic_mapped_representation(parent_set + x[i]\mapped_item .mapping_source.mapped_representation, x [i]\mapped_item. mapping_source.mapped_representation.items) THEN RETURN(FALSE) ; END_IF; END_REPEAT ; END_IF; x := children_set - x; IF SIZEOF(x) > 0 THEN REPEAT i := 1 TO HIINDEX(x) BY 1; y := QUERY ( z <* bag_to_set(USEDIN(x[i],' ')) | ( 'CONFIG_CONTROL_DESIGN.REPRESENTATION_ITEM' IN TYPEOF(z)) ); IF NOT acyclic_mapped_representation(parent_set, y) THEN RETURN(FALSE) ; END_IF; END_REPEAT ; END_IF ; RETURN (TRUE) ; END_FUNCTION; - - acyclic_mapped_representation FUNCTION acyclic_point_replica (rep: point_replica; parent: point): BOOLEAN; IF NOT ('CONFIG_CONTROL_DESIGN.POINT_REPLICA' IN TYPEOF (parent)) THEN RETURN (TRUE) ; END_IF ; IF parent :=: rep THEN RETURN(FALSE); ELSE RETURN (acyclic_point_replica (rep, parent\point_replica.parent_pt)) ; END_IF;
END_FUNCTION; - - acyclic_point_replica FUNCTION acyclic_product_category_relationship ( relation: product_category_relationship; children: SET OF product_category): LOGICAL; LOCAL
i	: INTEGER;
x	: SET OF product_category_relationship;
local_children : SET OF product_category; END_LOCAL ; REPEAT i := 1 TO HIINDEX (children) BY 1; IF relation.category :=: children[i] THEN RETURN(FALSE); END_IF ; END_REPEAT ; x := bag_to_set(USEDIN(relation.category, 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_CATEGORY_RELATIONSHIP.SUB_CATEGORY' )) ; local_children := children + relation.category; IF SIZEOF(x) > 0 THEN REPEAT i := 1 TO HIINDEX (x) BY 1; IF NOT acyclic_product_category_relationship(x[i], local_children) THEN RETURN (FALSE); END_IF ; END_REPEAT ; END_IF ; RETURN (TRUE) ; END_FUNCTION; - - acyclic_product_category_relationship FUNCTION acyclic_product_definition_relationship ( relation: product_definition_relationship; relatives: SET [1:?] OF product_definition; specific_relation: STRING): LOGICAL; LOCAL x : SET OF product_definition_relationship; END_LOCAL ; IF relation.relating_product_definition IN relatives THEN RETURN (FALSE) ; END_IF; x := QUERY ( pd <* bag_to_set(USEDIN(relation. relating_product_definition, 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_RELATIONSHIP.' + 'RELATED_PRODUCT_DEFINITION')) | (specific_relation IN TYPEOF (pd)) ); REPEAT i := 1 TO HIINDEX (x) BY 1; IF NOT acyclic_product_definition_relationship (x[i], relatives + relation.relating_product_definition, specific_relation) THEN RETURN (FALSE) ; END_IF ;
END_REPEAT ; RETURN (TRUE) ; END_FUNCTION; - - acyclic_product_definition_relationship FUNCTION acyclic_surface_replica (rep: surface_replica; parent: surface): BOOLEAN; IF NOT ('CONFIG_CONTROL_DESIGN.SURFACE_REPLICA' IN TYPEOF(parent)) THEN RETURN (TRUE) ; END_IF; IF parent : = : rep THEN RETURN(FALSE); ELSE RETURN(acyclic_surface_replica (rep, parent\surface_replica. parent_surface)) ; END_IF; END_FUNCTION; - - acyclic_surface_replica FUNCTION assembly_shape_is_defined (assy: next_assembly_usage_occurrence; schema: STRING): BOOLEAN; LOCAL
srr_set		: SET OF shape_representation_relationship := [ ];
i		: INTEGER;
j		: INTEGER;
sdr_set		: SET OF shape_definition_representation := [ ];
prl_set		: SET OF property_definition := [ ];
pdrel_set		: SET OF product_definition_relationship := [ ];
pr2_set		: SET OF property_definition := [ ];
END_LOCAL ; prl_set := bag_to_set(USEDIN(assy.related_product_definition, schema + '.PROPERTY_DEFINITION.DEFINITION' )) ; REPEAT i := 1 TO HIINDEX (pr1_set) BY 1; sdr_set := sdr_set + QUERY ( pdr <* USEDIN(pr1_set[i], schema + '.PROPERTY_DEFINITION_REPRESENTATION.DEFINITION') | ((schema + '.SHAPE_DEFINITION_REPRESENTATION') IN TYPEOF (pdr)) ); END_REPEAT ; pdrel_set := bag_to_set(USEDIN(assy.related_product_definition, schema + '.PRODUCT_DEFINITION_RELATIONSHIP.' + 'RELATED_PRODUCT_DEFINITION' )) ; REPEAT j := 1 TO HIINDEX (pdrel_set) BY 1; pr2_set := pr2_set + USEDIN (pdrel_set[j], schema + '.PROPERTY_DEFINITION.DEFINITION') ; END_REPEAT ; REPEAT i := 1 TO HIINDEX (pr2_set) BY 1; sdr_set := sdr_set + QUERY ( pdr <* USEDIN(pr2_set[i], schema + '.PROPERTY_DEFINITION_REPRESENTATION.DEFINITION') | ((schema + '.SHAPE_DEFINITION_REPRESENTATION') IN TYPEOF (pdr)) ); END_REPEAT ; IF SIZEOF(sdr_set) > 0 THEN REPEAT i := 1 TO HIINDEX(sdr_set) BY 1; srr_set := QUERY ( rr <* bag_to_set (USEDIN(sdr_set[i]\ property_definition_representation.used_representation, schema + '.REPRESENTATION_RELATIONSHIP.REP_2')) | ((schema + '.SHAPE_REPRESENTATION_RELATIONSHIP') IN TYPEOF(rr)) ); IF SIZEOF(srr_set) > 0 THEN REPEAT j := 1 TO HIINDEX (srr_set) BY 1; IF SIZEOF (QUERY ( pdr <* bag_to_set(USEDIN(srr_set[j]\ representation_relationship.rep_1, schema + '.PROPERTY_DEFINITION_REPRESENTATION.USED_REPRESENTATION' ) ) | ((schema + '.SHAPE_DEFINITION_REPRESENTATION') IN TYPEOF ( pdr)) ) * QUERY ( pdr <* bag_to_set(USEDIN(assy. relating_product_definition, schema + '.PROPERTY_DEFINITION_REPRESENTATION.DEFINITION')) | (( schema + '.SHAPE_DEFINITION_REPRESENTATION' ) IN TYPEOF (pdr)) )) >= 1 THEN IF SIZEOF(QUERY ( cdsr <* USEDIN(srr_set[j], schema +
'.CONTEXT_DEPENDENT_SHAPE_REPRESENTATION.' + 'REPRESENTATION_RELATION') | (NOT (cdsr\ context_dependent_shape_representation. represented_product_relation\property_definition. definition :=: assy)) )) > 0 THEN RETURN (FALSE) ; END_IF ; END_IF ; END_REPEAT ; END_IF ; END_REPEAT; END_IF; RETURN (TRUE) ; END_FUNCTION; - - assembly_shape_is_defined FUNCTION associated_surface(arg: pcurve_or_surface): surface; LOCAL surf : surface; END_LOCAL ; IF 'CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF (arg) THEN surf : = arg.basis_surface; ELSE surf := arg; END_IF; RETURN (surf) ; END_FUNCTION; - - associated_surface FUNCTION bag_to_set(the_bag: BAG OF GENERIC: intype ) : SET OF GENERIC: intype; LOCAL
i		: INTEGER;
the_set		: SET OF GENERIC: intype := [ ];
END_LOCAL ; IF SIZEOF(the_bag) > 0 THEN REPEAT i := 1 TO HIINDEX(the_bag) BY 1; the_set := the_set + the_bag[i]; END_REPEAT ; END_IF; RETURN (the_set) ; END_FUNCTION; - - bag_to_set FUNCTION base_axis(dim: INTEGER; axis1, axis2, axis3: direction ) : LIST [2:3] OF direction; LOCAL
u		: LIST [2:3] OF direction;
d1		: direction;
d2		: direction;
factor		: REAL;
END_LOCAL ; IF dim = 3 THEN
d1		:= NVL(normalise(axis3), dummy_gri | | direction([0,0,1]));
d2		:= first_proj_axis(d1, axis1);
u		:= [d2, second_proj_axis(d1,d2,axis2), d1];
ELSE IF EXISTS (axis1) THEN
d1 := normalise(axis1); u := [ d1, orthogonal_complement(d1)]; IF EXISTS (axis2) THEN factor := dot_product(axis2, u[2]); IF factor < 0 THEN u[2].direction_ratios[1] := -u[2].direction_ratios[1]; u[2].direction_ratios[2] := -u[2].direction_ratios[2]; END_IF; END_IF; ELSE IF EXISTS(axis2) THEN d1 := normalise(axis2); u := [orthogonal_complement(d1), d1]; u[1].direction_ratios[1] := -u[1].direction_ratios[1]; u[1].direction_ratios[2] := -u[1].direction_ratios[2]; ELSE u := [dummy_gri | | direction ([1, 0]), dummy_gri | | direction ([0, 1])]; END_IF; END_IF; END_IF; RETURN (u); END_FUNCTION; - - base_axis FUNCTION boolean_choose(b: BOOLEAN; choice1, choice2: GENERIC: item): GENERIC: item; IF b THEN RETURN (choice1) ; ELSE RETURN (choice2) ; END_IF ; END_FUNCTION; - - boolean_choose FUNCTION build_2axes(ref_direction: direction): LIST [2:2] OF direction;
LOCAL d : direction := NVL(normalise(ref_direction), dummy_gri | | direction ([1,0])); END_LOCAL ; RETURN ([d, orthogonal_complement(d)]) ; END_FUNCTION; - - build_2axes FUNCTION build_axes (axis, ref_direction: direction ): LIST [3:3] OF direction; LOCAL d1 : direction; d2 : direction; END_LOCAL ; d1 := NVL(normalise(axis), dummy_gri | | direction([0, 0, 1])); d2 := first_proj_axis(d1, ref_direction); RETURN ([d2, normalise (cross_product(d1, d2)) .orientation, d1]); END_FUNCTION; - - build_axes FUNCTION cc_design_date_time_correlation (e : cc_design_date_and_time_assignment) : BOOLEAN; LOCAL dt_role : STRING; END_LOCAL; dt_role := e\date_and_time_assignment.role.name; CASE dt_role OF
'creation_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION' IN TYPEOF (x))) THEN RETURN (FALSE) ; END_IF;
'request_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF ( ['CONFIG_CONTROL_DESIGN.CHANGE_REQUEST', 'CONFIG_CONTROL_DESIGN.START_REQUEST' ] * TYPEOF (x)) = 1)) THEN RETURN (FALSE); END_IF ;
'release_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF ( ['CONFIG_CONTROL_DESIGN.CHANGE', 'CONFIG_CONTROL_DESIGN.START_WORK'] * TYPEOF (x)) = 1)) THEN RETURN (FALSE); END_IF ;
'start_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF ( ['CONFIG_CONTROL_DESIGN.CHANGE', 'CONFIG_CONTROL_DESIGN.START_WORK' ] * TYPEOF (x)) = 1)) THEN RETURN (FALSE); END_IF;
'sign_off_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'APPROVAL_PERSON_ORGANIZATION' IN TYPEOF (x))) THEN RETURN (FALSE) ; END_IF ;
'contract_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.CONTRACT' IN TYPEOF (x))) THEN RETURN (FALSE) ; END_IF ;
'certification_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.CERTIFICATION' IN TYPEOF (x))) THEN RETURN (FALSE); END_IF ;
'classification_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'SECURITY_CLASSIFICATION' IN TYPEOF (x))) THEN RETURN (FALSE); END_IF;
'declassification_date'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'SECURITY_CLASSIFICATION' IN TYPEOF (x))) THEN RETURN (FALSE); END_IF ;
OTHERWISE : RETURN (TRUE); END_CASE ; RETURN (TRUE) ; END_FUNCTION; - - cc_design_date_time_correlation FUNCTION cc_design_person_and_organization_correlation (e : cc_design_person_and_organization_assignment) : BOOLEAN; LOCAL po_role : STRING; END_LOCAL ; po_role := e\person_and_organization_assignment.role.name; CASE po_role OF
'request_recipient'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF ( ['CONFIG_CONTROL_DESIGN.' + 'CHANGE_REQUEST', 'CONFIG_CONTROL_DESIGN.' + 'START_REQUEST' ] * TYPEOF (x)) = 1)) THEN RETURN (FALSE); END_IF;
'initiator'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF (['CONFIG_CONTROL_DESIGN.' + 'CHANGE_REQUEST', 'CONFIG_CONTROL_DESIGN.' + 'START_REQUEST', 'CONFIG_CONTROL_DESIGN.' + 'START_WORK', 'CONFIG_CONTROL_DESIGN.' + 'CHANGE' ] * TYPEOF (x)) = 1)) THEN RETURN (FALSE); END_IF ;
'creator'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | SIZEOF (['CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_FORMATION', 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION'] * TYPEOF (x)) = 1)) THEN RETURN (FALSE) ; END_IF;
'part_supplier'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_FORMATION' IN TYPEOF (x))) THEN RETURN (FALSE) ; END_IF;
'design_supplier'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'PRODUCT_DEFINITION_FORMATION' IN TYPEOF (x))) THEN RETURN (FALSE); END_IF;
'design_owner'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.PRODUCT' IN TYPEOF (x))) THEN RETURN (FALSE); END_IF ;
'configuration_manager'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'CONFIGURATION_ITEM' IN TYPEOF (x))) THEN RETURN (FALSE); END_IF ;
'contractor'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.CONTRACT' IN TYPEOF (x))) THEN RETURN (FALSE); END_IF ;
'classification_officer'					: IF SIZEOF (e.items) < > SIZEOF (QUERY (x <* e.items | 'CONFIG_CONTROL_DESIGN.' + 'SECURITY_CLASSIFICATION' IN TYPEOF (x))) THEN RETURN (FALSE) ; END_IF ;
OTHERWISE : RETURN (TRUE); END_CASE ; RETURN (TRUE) ; END_FUNCTION; - - cc_design_person_and_organization_correlation FUNCTION closed_shell_reversed(a_shell: closed_shell ): oriented_closed_shell; LOCAL the_reverse : oriented_closed_shell; END_LOCAL; IF 'CONFIG_CONTROL_DESIGN.ORIENTED_CLOSED_SHELL' IN TYPEOF(a_shell) THEN the_reverse := dummy_tri | | connected_face_set (a_shell\ connected_face_set.cfs_faces) | | closed_shell( ) | | oriented_closed_shell (a_shell\oriented_closed_shell. closed_shell_element, NOT a_shell\oriented_closed_shell. orientation) ; ELSE the_reverse := dummy_tri | | connected_face_set(a_shell\ connected_face_set.cfs_faces) | | closed_shell( ) | | oriented_closed_shell (a_shell, FALSE) ; END_IF; RETURN (the_reverse) ; END_FUNCTION; - - closed_shell_reversed FUNCTION conditional_reverse(p: BOOLEAN; an_item: reversible_topology): reversible_topology; IF p THEN RETURN(an_item); ELSE RETURN (topology_reversed (an_item)) ; END_IF ; END_FUNCTION; - - conditional_reverse FUNCTION constraints_composite_curve_on_surface (
c: composite_curve_on_surface): BOOLEAN; LOCAL n_segments : INTEGER := SIZEOF(c.segments); END_LOCAL ; REPEAT k := 1 TO n_segments BY 1; IF (NOT ('CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF(c\composite_curve. segments[k].parent_curve))) AND (NOT ( 'CONFIG_CONTROL_DESIGN.SURFACE_CURVE' IN TYPEOF (c\composite_curve .segments[k].parent_curve))) AND (NOT ( 'CONFIG_CONTROL_DESIGN.COMPOSITE_CURVE_ON_SURFACE' IN TYPEOF (c\ composite_curve.segments[k].parent_curve))) THEN RETURN (FALSE) ; END_IF; END_REPEAT ; RETURN (TRUE) ; END_FUNCTION; - - constraints_composite_curve_on_surface FUNCTION constraints_geometry_shell_based_surface_model ( m: shell_based_surface_model): BOOLEAN; LOCAL result : BOOLEAN := TRUE; END_LOCAL; REPEAT j := 1 TO SIZEOF(m.sbsm_boundary) BY 1; IF (NOT ('CONFIG_CONTROL_DESIGN.OPEN_SHELL' IN TYPEOF(m. sbsm_boundary[j]))) AND (NOT ( 'CONFIG_CONTROL_DESIGN.CLOSED_SHELL' IN TYPEOF (m.sbsm_boundary[j]))) THEN result := FALSE; RETURN (result) ; END_IF ; END_REPEAT ; RETURN (result) ; END_FUNCTION; - - constraints_geometry_shell_based_surface_model FUNCTION constraints_geometry_shell_based_wireframe_model ( m: shell_based_wireframe_model): BOOLEAN;
LOCAL result : BOOLEAN := TRUE; END_LOCAL ; REPEAT j := 1 TO SIZEOF(m.sbwm_boundary) BY 1; IF (NOT ('CONFIG_CONTROL_DESIGN.WIRE_SHELL' IN TYPEOF(m. sbwm_boundary[j])))) AND (NOT ( 'CONFIG_CONTROL_DESIGN.VERTEX_SHELL' IN TYPEOF (m.sbwm_boundary[j]))) THEN result := FALSE; RETURN (result) ; END_IF ; END_REPEAT ; RETURN (result) ; END_FUNCTION; - - constraints_geometry_shell_based_wireframe_model FUNCTION constraints_param_b_spline (degree, up_knots, up_cp: INTEGER; knot_mult: LIST OF INTEGER; knots: LIST OF parameter_value): BOOLEAN; LOCAL
k		: INTEGER;
sum		: INTEGER;
result		: BOOLEAN := TRUE;
END_LOCAL ; sum := knot_mult[1];
REPEAT i := 2 TO up_knots BY 1;
sum		:= sum + knot_mult[i];
END_REPEAT ; IF (degree < 1) OR (up_knots < 2) OR (up_cp < degree) OR (sum < > ( degree + up_cp + 2)) THEN result := FALSE; RETURN (result) ; END_IF; k := knot_mult[1]; IF (k < 1) OR (k > (degree + 1)) THEN result := FALSE; RETURN (result) ; END_IF; REPEAT i := 2 TO up_knots BY 1; IF (knot_mult[i] < 1) OR (knots [i] <= knots [i - 1]) THEN result := FALSE; RETURN (result) ; END_IF ; k := knot_mult[i]; IF (i < up_knots) AND (k > degree) THEN result := FALSE; RETURN (result) ; END_IF; IF (i = up_knots) AND (k > (degree + 1)) THEN result := FALSE; RETURN (result) ; END_IF; END_REPEAT; RETURN (result) ; END_FUNCTION; - - constraints_param_b_spline FUNCTION constraints_rectangular_composite_surface ( s: rectangular_composite_surface): BOOLEAN; REPEAT i := 1 TO s.n_u BY 1; REPEAT j : = 1 TO s.n_v BY 1 ; IF NOT (('CONFIG_CONTROL_DESIGN.B_SPLINE_SURFACE' IN TYPEOF(s. segments [i][j].parent_surface)) OR ( 'CONFIG_CONTROL_DESIGN.RECTANGULAR_TRIMMED_SURFACE' IN TYPEOF(s .segments [i][j].parent_surface ))) THEN
RETURN (FALSE) ; END_IF; END_REPEAT ; END_REPEAT ; REPEAT i := 1 TO s.n_u -1 BY 1; REPEAT j := 1 TO s.n_v BY 1; IF s.segments[i][j].u_transition = discontinuous THEN RETURN (FALSE) ; END_IF; END_REPEAT ; END_REPEAT ; REPEAT i := 1 TO s.n_u BY 1; REPEAT j := 1 TO s.n_v - 1 BY 1; IF s.segments[i][j].v_transition = discontinuous THEN RETURN (FALSE) ; END_IF ; END_REPEAT ; END_REPEAT ; RETURN (TRUE) ; END_FUNCTION; - - constraints_rectangular_composite_surface FUNCTION cross_product(arg1, arg2: direction): vector; LOCAL
v2		: LIST [3:3] OF REAL;
v1		: LIST [3:3] OF REAL;
mag		: REAL;
res		: direction;
result		: vector;
END_LOCAL ; IF (NOT EXISTS (arg1)) OR (arg1.dim = 2) OR (NOT EXISTS (arg2)) OR (arg2 .dim = 2) THEN RETURN (?) ; ELSE BEGIN v1 := normalise(arg1).direction_ratios; v2 := normalise(arg2).direction_ratios; res := dummy_gri | | direction ([(v1[2] * v2[3]) - (v1[3] * v2[2]), ( v1[3] * v2[1]) - (v1[1] * v2[3]), (v1[1] * v2[2]) - (v1[2] * v2[1])]); mag : = 0; REPEAT i: = 1 TO 3 BY 1; mag := mag + (res.direction_ratios[i] * res.direction_ratios [i]); END_REPEAT ; IF mag > 0 THEN result := dummy_gri | | vector(res, SQRT(mag)); ELSE result := dummy_gri | | vector(arg1, 0); END_IF ; RETURN (result) ; END; END_IF ; END_FUNCTION; - - cross_product FUNCTION curve_weights_positive(b: rational_b_spline_curve): BOOLEAN; LOCAL result : BOOLEAN := TRUE; END_LOCAL ; REPEAT i := 0 TO b.upper_index_on_control_points BY 1; IF b.weights [i] <= 0 THEN result := FALSE; RETURN (result) ; END_IF ; END_REPEAT ; RETURN (result) ; END_FUNCTION; - - curve_weights_positive FUNCTION derive_dimensional_exponents(x: unit): dimensional_exponents; LOCAL
i		: INTEGER;
result		: dimensional_exponents := dimensional_exponents(0, 0, 0, 0, 0, 0, 0);
END_LOCAL ; IF 'CONFIG_CONTROL_DESIGN.DERIVED_UNIT' IN TYPEOF(x) THEN REPEAT i := LOINDEX (x.elements) TO HIINDEX(x.elements) BY 1; result.length_exponent := result.length_exponent + (x.elements [i]. exponent * x.elements[i].unit.dimensions.length_exponent); result.mass_exponent := result.mass_exponent + (x.elements[i]. exponent * x.elements[i].unit.dimensions.mass_exponent); result.time_exponent := result.time_exponent + (x.elements[i]. exponent * x.elements[i].unit.dimensions.time_exponent); result.electric_current_exponent := result. electric_current_exponent + (x.elements [i].exponent * x. elements[i].unit.dimensions.electric_current_exponent) ; result.thermodynamic_temperature_exponent := result. thermodynamic_temperature_exponent + (x.elements[i].exponent * x.elements[i].unit.dimensions. thermodynamic_temperature_exponent) ; result.amount_of_substance_exponent := result. amount_of_substance_exponent + (x.elements[i].exponent * x. elements[i].unit.dimensions.amount_of_substance_exponent) ; result.luminous_intensity_exponent := result. luminous_intensity_exponent + (x.elements[i].exponent * x. elements[i].unit.dimensions.luminous_intensity_exponent) ;
END_REPEAT ; ELSE result := x .dimensions ; END_IF ; RETURN (result) ; END_FUNCTION; - - derive_dimensional_exponents FUNCTION dimension_of (item: geometric_representation_item ): dimension_count; LOCAL x : SET OF representation; y : representation_context; END_LOCAL ; x := using_representations(item); y := x[1].context_of_items; RETURN (y\geometric_representation_context.coordinate_space_dimension) ; END_FUNCTION; - - dimension_of FUNCTION dimensions_for_si_unit(n: si_unit_name ): dimensional_exponents; CASE n OF
metre			: RETURN (dimensional_exponents (1, 0, 0, 0, 0, 0, 0));
gram			: RETURN (dimensional_exponents (0, 1, 0, 0, 0, 0, 0));
second			: RETURN (dimensional_exponents (0, 0, 1, 0, 0, 0, 0));
ampere			: RETURN (dimensional_exponents (0, 0, 0, 1, 0, 0, 0));
kelvin			: RETURN (dimensional_exponents (0, 0, 0, 0, 1, 0, 0));
mole			: RETURN (dimensional_exponents (0, 0, 0, 0, 0, 1, 0));
candela			: RETURN (dimensional_exponents (0, 0, 0, 0, 0, 0, 1));
radian			: RETURN (dimensional_exponents (0, 0, 0, 0, 0, 0, 0));
steradian			: RETURN (dimensional_exponents (0, 0, 0, 0, 0, 0, 0));
hertz			: RETURN (dimensional_exponents (0, 0, -1, 0, 0, 0, 0));
newton			: RETURN (dimensional_exponents (1, 1, -2, 0, 0, 0, 0));
pascal			: RETURN (dimensional_exponents (-1, 1, -2, 0, 0, 0, 0));
joule			: RETURN (dimensional_exponents (2, 1, -2, 0, 0, 0, 0));
watt			: RETURN (dimensional_exponents (2, 1, -3, 0, 0, 0, 0));
coulomb			: RETURN (dimensional_exponents (0, 0, 1, 1, 0, 0, 0));
volt			: RETURN (dimensional_exponents (2, 1, -3, -1, 0, 0, 0));
farad			: RETURN (dimensional_exponents (-2, -1, 4, 1, 0, 0, 0));
ohm			: RETURN (dimensional_exponents (2, 1, -3, -2, 0, 0, 0));
siemens			: RETURN (dimensional_exponents (-2, -1, 3, 2, 0, 0, 0));
weber			: RETURN (dimensional_exponents (2, 1, -2, -1, 0, 0, 0));
tesla			: RETURN (dimensional_exponents (0, 1, -2, -1, 0, 0, 0));
henry			: RETURN (dimensional_exponents (2, 1, -2, -2, 0, 0, 0));
degree_celsius			: RETURN (dimensional_exponents (0, 0, 0, 0, 1, 0, 0));
lumen			: RETURN (dimensional_exponents (0, 0, 0, 0, 0, 0, 1));
lux			: RETURN (dimensional_exponents (-2, 0, 0, 0, 0, 0, 1));
becquerel			: RETURN (dimensional_exponents (0, 0, -1, 0, 0, 0, 0));
gray			: RETURN (dimensional_exponents (2, 0, -2, 0, 0, 0, 0));
sievert			: RETURN (dimensional_exponents (2, 0, -2, 0, 0, 0, 0));
END_CASE ; END_FUNCTION; - - dimensions_for_si_unit FUNCTION dot_product(arg1, arg2: direction): REAL; LOCAL
ndim		: INTEGER;
scalar		: REAL;
vec1		: direction;
vec2		: direction;
END_LOCAL ; IF (NOT EXISTS(arg1)) OR (NOT EXISTS(arg2)) THEN
scalar		:= ?;
ELSE IF arg1.dim < > arg2.dim THEN scalar := ?; ELSE BEGIN
vec1			: = normalise(arg1);
vec2			: = normalise(arg2);
ndim			: = arg1.dim;
scalar			: = 0;
REPEAT i			: = 1 TO ndim BY 1;
scalar			: = scalar + (vec1.direction_ratios[i] * vec2.
direction_ratios [i]) ; END_REPEAT ; END; END_IF ; END_IF; RETURN (scalar) ; END_FUNCTION; - - dot_product FUNCTION edge_reversed(an_edge: edge): oriented_edge; LOCAL the_reverse : oriented_edge; END_LOCAL; IF 'CONFIG_CONTROL_DESIGN.ORIENTED_EDGE' IN TYPEOF(an_edge) THEN the_reverse := dummy_tri | | edge(an_edge.edge_end, an_edge.edge_start) | | oriented_edge (an_edge\oriented_edge.edge_element, NOT an_edge\ oriented_edge.orientation) ; ELSE the_reverse := dummy_tri | | edge(an_edge.edge_end, an_edge.edge_start) | | oriented_edge (an_edge, FALSE) ; END_IF; RETURN (the_reverse) ; END_FUNCTION; - - edge_reversed FUNCTION face_bound_reversed(a_face_bound: face_bound): face_bound; LOCAL the_reverse : face_bound; END_LOCAL; IF 'CONFIG_CONTROL_DESIGN.FACE_OUTER_BOUND' IN TYPEOF(a_face_bound) THEN the_reverse := dummy_tri | | face_bound(a_face_bound\face_bound.bound, NOT a_face_bound\face_bound.orientation) | | face_outer_bound( ); ELSE the_reverse := dummy_tri | | face_bound(a_face_bound.bound, NOT a_face_bound.orientation) ; END_IF ; RETURN (the_reverse) ;
END_FUNCTION; - - face_bound_reversed FUNCTION face_reversed(a_face: face): oriented_face; LOCAL the_reverse : oriented_face; END_LOCAL; IF 'CONFIG_CONTROL_DESIGN.ORIENTED_FACE' IN TYPEOF(a_face) THEN the_reverse := dummy_tri | | face(set_of_topology_reversed(a_face. bounds)) | | oriented_face(a_face\oriented_face.face_element, NOT a_face\oriented_face.orientation) ; ELSE the_reverse := dummy_tri | | face(set_of_topology_reversed(a_face. bounds)) | | oriented_face(a_face, FALSE); END_IF; RETURN (the_reverse) ; END_FUNCTION; - - face_reversed FUNCTION first_proj_axis(z_axis, arg: direction): direction; LOCAL
x_vec		: vector;
v		: direction;
z		: direction;
x_axis		: direction;
END_LOCAL ; IF NOT EXISTS(z_axis) THEN RETURN(?); ELSE
z		:= normalise(z_axis);
IF NOT EXISTS (arg) THEN IF z.direction_ratios < > [1, 0, 0 THEN v := dummy_gri | | direction ([1, 0, 0]); ELSE v := dummy_gri | | direction ([0, 1, 0]); END_IF; ELSE IF arg.dim < > 3 THEN RETURN(?); END_IF; IF cross_product(arg,z).magnitude = 0 THEN RETURN(?); ELSE v := normalise (arg); END_IF ; END_IF ; x_vec := scalar_times_vector(dot_product(v, z), z); x_axis := vector_difference(v, x_vec).orientation; x_axis := normalise(x_axis); END_IF ; RETURN (x_axis) ; END_FUNCTION; - - first_proj_axis FUNCTION gbsf_check_curve(cv: curve): BOOLEAN; IF SIZEOF (['CONFIG_CONTROL_DESIGN.BOUNDED_CURVE' , 'CONFIG_CONTROL_DESIGN.CONIC', 'CONFIG_CONTROL_DESIGN.CURVE_REPLICA' , 'CONFIG_CONTROL_DESIGN.LINE', 'CONFIG_CONTROL_DESIGN.OFFSET_CURVE_3D'] * TYPEOF(cv)) > 1 THEN RETURN (FALSE) ; ELSE IF SIZEOF (['CONFIG_CONTROL_DESIGN.CIRCLE' , 'CONFIG_CONTROL_DESIGN.ELLIPSE'] * TYPEOF(cv)) = 1 THEN RETURN (TRUE) ; ELSE IF (('CONFIG_CONTROL_DESIGN.B_SPLINE_CURVE' IN TYPEOF(cv)) AND (cv \b_spline_curve.self_intersect = FALSE)) OR (cv\b_spline_curve. self_intersect = UNKNOWN) THEN
RETURN (TRUE) ; ELSE IF (('CONFIG_CONTROL_DESIGN.COMPOSITE_CURVE' IN TYPEOF(cv)) AND (cv\composite_curve.self_intersect = FALSE)) OR (cv\ composite_curve.self_intersect = UNKNOWN) THEN RETURN (SIZEOF (QUERY ( seg <* cv\composite_curve.segments | ( NOT gbsf_check_curve(seg.parent_curve)) )) = 0); ELSE IF 'CONFIG_CONTROL_DESIGN.CURVE_REPLICA' IN TYPEOF(cv) THEN RETURN(gbsf_check_curve(cv\curve_replica.parent_curve)) ; ELSE IF ('CONFIG_CONTROL_DESIGN.OFFSET_CURVE_3D' IN TYPEOF(cv)) AND ((cv\offset_curve_3d.self_intersect = FALSE) OR (cv\ offset_curve_3d.self_intersect = UNKNOWN)) AND (NOT ( 'CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF (cv.basis_curve))) THEN RETURN(gbsf_check_curve(cv\offset_curve_3d.basis_curve)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF(cv) THEN RETURN (gbsf_check_curve (cv\pcurve.reference_to_curve\ representation.items[1]) AND gbsf_check_surface(cv\ pcurve.basis_surface)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF(cv) THEN IF SIZEOF (cv\polyline.points) >= 3 THEN RETURN (TRUE) ; END_IF; ELSE IF 'CONFIG_CONTROL_DESIGN.SURFACE_CURVE' IN TYPEOF(cv) THEN IF gbsf_check_curve(cv\surface_curve.curve_3d) THEN REPEAT i := 1 TO SIZEOF (cv\surface_curve. associated_geometry) BY 1; IF 'CONFIG_CONTROL_DESIGN.SURFACE' IN TYPEOF(cv\ surface_curve.associated_geometry [i]) THEN IF NOT gbsf_check_surface (cv\surface_curve. associated_geometry [i]) THEN RETURN (FALSE) ;
END_IF ; ELSE IF 'CONFIG _CONTROL_DESIGN.PCURVE' IN TYPEOF(cv \surface_curve.associated_geometry[i]) THEN IF NOT gbsf:_check_curve(cv\surface_curve. associated_geometry[i]) THEN RETURN (FALSE) ; END_IF ; END_IF; END_IF ; END_REPEAT ; RETURN (TRUE) ; END_IF; ELSE IF 'CONFIG_CONTROL_DESIGN.TRIMMED_CURVE' IN TYPEOF( cv) THEN IF SIZEOF(['CONFIG_CONTROL_DESIGN.LINE' , 'CONFIG_CONTROL_DESIGN.PARABOLA' , 'CONFIG_CONTROL_DESIGN.HYPERBOLA'] * TYPEOF(cv\ trimmed_curve.basis_curve)) = 1 THEN RETURN (TRUE) ; ELSE RETURN (gbsf_check_curve(cv\trimmed_curve. basis_curve)) ; END_IF ;
END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; RETURN (FALSE) ; END_FUNCTION; - - gbsf_check_curve FUNCTION gbsf_check_point(pnt: point): BOOLEAN; IF 'CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' IN TYPEOF(pnt) THEN RETURN (TRUE) ; ELSE IF 'CONFIG_CONTROL_DESIGN.POINT_ON_CURVE' IN TYPEOF(pnt) THEN RETURN(gbsf_check_curve(pnt\point_on_curve.basis_curve)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.POINT_ON_SURFACE' IN TYPEOF(pnt) THEN RETURN (gbsf_check_surface(pnt\point_on_surface.basis_surface)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.DEGENERATE_PCURVE' IN TYPEOF(pnt) THEN RETURN (gbsf_check_curve(pnt\degenerate_pcurve. reference_to_curve\representation.items[1]) AND gbsf_check_surface(pnt\degenerate_pcurve.basis_surface)) ; END_IF ; END_IF ; END_IF ; END_IF ; RETURN (FALSE) ; END_FUNCTION; - - gbsf_check_point FUNCTION gbsf_check_surface(sf: surface): BOOLEAN; IF (('CONFIG_CONTROL_DESIGN.B_SPLINE_SURFACE' IN TYPEOF(sf)) AND (sf\ b_spline_surface.self_intersect = FALSE)) OR (sf\b_spline_surface. self_intersect = UNKNOWN) THEN RETURN(TRUE);
ELSE IF SIZEOF (['CONFIG_CONTROL_DESIGN.SPHERICAL_SURFACE' , 'CONFIG_CONTROL_DESIGN.TOROIDAL_SURFACE') * TYPEOF(sf)) = 1 THEN RETURN(TRUE) ; ELSE IF 'CONFIG_CONTROL_DESIGN.CURVE_BOUNDED_SURFACE' IN TYPEOF(sf) THEN IF SIZEOF (['CONFIG_CONTROL_DESIGN.CONICAL_SURFACE' , 'CONFIG_CONTROL_DESIGN.CYLINDRICAL_SURFACE' , 'CONFIG_CONTROL_DESIGN.PLANE'] * TYPEOF(sf\ curve_bounded_surface.basis_surface)) = 1 THEN RETURN (SIZEOF(QUERY ( bcurve <* sf\curve_bounded_surface. boundaries | (NOT gbsf_check_curve(bcurve)) )) = 0); ELSE IF gbsf_check_surface (sf\curve_bounded_surface.basis_surface) THEN RETURN(SIZEOF(QUERY ( bcurve <* sf\curve_bounded_surface. boundaries | (NOT gbsf_check_curve(bcurve)) )) = 0); END_IF ; END_IF ; ELSE IF (( 'CONFIG_CONTROL_DESIGN.OFFSET_SURFACE' IN TYPEOF(sf)) AND ( sf\offset_surface.self_intersect = FALSE)) OR (sf\ offset_surface.self_intersect = UNKNOWN) THEN RETURN(gbsf_check_surface(sf\offset_surface.basis_surface)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.RECTANGULAR_COMPOSITE_SURFACE' IN TYPEOF(sf) THEN REPEAT i := 1 TO SIZEOF(sf\rectangular_composite_surface. segments) BY 1; REPEAT j := 1 TO SIZEOF(sf\rectangular_composite_surface. segments[i]) BY 1; IF NOT gbsf_check_surface(sf\ rectangular_composite_surface.segments[i] [j]. parent_surface) THEN RETURN (FALSE); END_IF ; END_REPEAT ;
END_REPEAT ; RETURN (TRUE) ; ELSE IF 'CONFIG_CONTROL_DESIGN.RECTANGULAR_TRIMMED_SURFACE' IN TYPEOF(sf) THEN IF SIZEOF(['CONFIG_CONTROL_DESIGN.CONICAL SURFACE' , 'CONFIG_CONTROL_DESIGN.CYLINDRICAL_SURFACE' , 'CONFIG_CONTROL_DESIGN.PLANE'] * TYPEOF(sf\ rectangular_trimmed_surface.basis_surface)) = 1 THEN RETURN (TRUE) ; ELSE RETURN (gbsf_check_surface (sf\rectangular_trimmed_surface .basis_surface)) ; END_IF ; ELSE IF 'CONFIG_CONTROL_DESIGN.SURFACE_REPLICA' IN TYPEOF(sf) THEN RETURN (gbsf_check_surface (sf\surface_repiica. parent_surface)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.SWEPT_SURFACE' IN TYPEOF(sf) THEN RETURN (gbsf_check_curve(sf\swept_surface.swept_curve)) ; END_IF; END_IF ; END_IF; END_IF; END_IF; END_IF ; END_IF ; END_IF ; RETURN (FALSE) ; END_FUNCTION; - - gbsf_check_surface FUNCTION get_basis_surface(c: curve_on_surface): SET [0:2] OF surface; LOCAL
surfs		: SET [0:2] OF surface;
n		: INTEGER ;
END_LOCAL ; surfs := [ ]; IF 'CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF(c) THEN surfs := [c\pcurve.basis_surface]; ELSE IF 'CONFIG _CONTROL_DESIGN.SURFACE_CURVE' IN TYPEOF(c) THEN n := SIZEOF(c\surface_curve.associated_geometry); REPEAT i := 1 TO n BY 1; surfs := surfs + associated_surface(c\surface_curve. associated_geometry[i]) ; END_REPEAT ; END_IF; END_IF; IF 'CONFIG_CONTROL_DESIGN.COMPOSITE_CURVE_ON_SURFACE' IN TYPEOF(c) THEN n := SIZEOF(c\composite_curve.segments); surfs := get_basis_surface(c\composite_curve.segments[1]. parent_curve) ; IF n > 1 THEN REPEAT i := 2 TO n BY 1; surfs := surfs * get_basis_surface(c\composite_curve.segments[i] .parent_curve) ; END_REPEAT ; END_IF; END_IF ; RETURN (surfs) ; END_FUNCTION: - - get_basis_surface FUNCTION item_in_context (item: representation_item; cntxt: representation_context): BOOLEAN;
LOCAL i : INTEGER; y : BAG OF representation_item; END_LOCAL ; IF SIZEOF(USEDIN(item, 'CONFIG_CONTROL_DESIGN.REPRESENTATION.ITEMS') * cntxt.representations_in_context) > 0 THEN RETURN(TRUE); ELSE y := QUERY ( z <* USEDIN(item,' ') | ( 'CONFIG_CONTROL_DESIGN.REPRESENTATION_ITEM' IN TYPEOF(z)) ); IF SIZEOF(y) > 0 THEN REPEAT i := 1 TO HIINDEX(y) BY 1; IF item_in_context(y[i], cntxt) THEN RETURN(TRUE); END_IF; END_REPEAT ; END_IF ; END_IF ; RETURN (FALSE) ; END_FUNCTION; - - item_in_context FUNCTION leap_year (year: year_number): BOOLEAN; IF (((year MOD 4) = 0) AND ((year MOD 100) < > 0)) OR ((year MOD 400) = 0) THEN RETURN(TRUE); ELSE RETURN (FALSE) ; END_IF ; END_FUNCTION; - - leap_year FUNCTION list_face_loops(f: face): LIST [0:?] OF loop; LOCAL loops : LIST [0:?] OF loop := [ ]; END_LOCAL ; REPEAT i := 1 TO SIZEOF(f.bounds) BY 1; loops := loops + f.bounds[i].bound; END_REPEAT ; RETURN (loops) ;
END_FUNCTION; - - list_face_loops FUNCTION list_of_topology_reversed ( a_list: list_of_reversible_topology_item ): list_of_reversible_topology_item; LOCAL the_reverse : list_of_reversible_topology_item; END_LOCAL ; the_reverse: = [ ] ; REPEAT i := 1 TO SIZEOF(a_list) BY 1; the_reverse := topology_reversed(a_list[i]) + the_reverse; END_REPEAT ; RETURN (the_reverse) ; END_FUNCTION; - - list_of_topology_reversed FUNCTION list_to_array(lis: LIST [0:?] OF GENERIC:t; low, u: INTEGER): ARRAY OF GENERIC:t; LOCAL
n	: INTEGER;
res	: ARRAY [low:u] OF GENERIC:t;
END_LOCAL ; n := SIZEOF(lis); IF n < > ((u - low) + 1) THEN RETURN(?); ELSE res := [lis[1], n]; REPEAT i := 2 TO n BY 1; res[(low + i) - 1] := lis[i]; END_REPEAT; RETURN (res) ; END_IF; END_FUNCTION; - - list_to_array FUNCTION list_to_set(1: LIST [0:?] OF GENERIC:t): SET OF GENERIC:t; LOCAL s : SET OF GENERIC:t: = [ ] ; END_LOCAL ; REPEAT i :== 1 TO SIZEOF(1) BY 1; s := s + 1 [i] ; END_REPEAT ; RETURN (s) ; END_FUNCTION; - - list_to_set FUNCTION make_array_of_array(lis: LIST [1:?] OF LIST [1:?] OF GENERIC:t; low1, u1, low2, u2: INTEGER): ARRAY OF ARRAY OF GENERIC:t; LOCAL res : ARRAY [low1:u1] OF ARRAY [low2:u2] OF GENERIC:t; END_LOCAL ; IF ((u1 - low1) + 1) < > SIZEOF(lis) THEN RETURN (?); END_IF ; IF ((u2 - low2) + 1) < > SIZEOF(lis[1]) THEN RETURN(?); END_IF; res := [list_to_array(lis[1], low2, u2),(u1 - low1) + 1]; REPEAT i := 2 TO HIINDEX(lis) BY 1;
IF((u2 - low2) + 1) < > SIZEOF (lis[i]) THEN RETURN (?); END_IF; res[(low1 +i) - 1] := list_to_array(lis[i], low2, u2); END_REPEAT; RETURN (res) ; END_FUNCTION; - - make_array_of_array FUNCTION mixed_loop_type_set(1: SET [0:?] OF loop): LOGICAL; LOCAL poly_loop_type : LOGICAL; END_LOCAL ; IF SIZEOF(1) <= 1 THEN RETURN(FALSE); END_IF ; poly_loop_type := 'CONFIG_CONTROL_DESIGN.POLY_LOOP' IN TYPEOF(1[1]); REPEAT i := 2 TO SIZEOF(1) BY 1; IF ('CONFIG_CONTROL_DESIGN.POLY_LOOP' IN TYPEOF(1[i])) < > poly_loop_type THEN RETURN(TRUE); END_IF; END_REPEAT ; RETURN (FALSE) ; END_FUNCTION; - - mixed_loop_type_set FUNCTION msb_shells(brep: manifold_solid_brep ): SET [1:?] OF closed_shell; IF SIZEOF (QUERY ( msbtype <* TYPEOF(brep) | (msbtype LIKE '*BREP_WITH_VOIDS') )) >= 1 THEN RETURN(brep\brep_with_voids.voids + brep.outer); ELSE RETURN ([brep.outer]) ; END_IF; END_FUNCTION; - - msb_shells FUNCTION msf_curve_check(cv: curve): BOOLEAN; IF SIZEOF (['CONFIG_CONTROL_DESIGN.BOUNDED_CURVE' , 'CONFIG_CONTROL_DESIGN.CONIC', 'CONFIG_CONTROL_DESIGN.CURVE_REPLICA', 'CONFIG_CONTROL_DESIGN.LINE' , 'CONFIG_CONTROL_DESIGN.OFFSET_CURVE_3D'] * TYPEOF(cv)) > 1 THEN RETURN (FALSE) ;
ELSE IF (('CONFIG_CONTROL_DESIGN.B_SPLINE_CURVE' IN TYPEOF(cv)) AND (cv\ b_spline_curve.self_intersect = FALSE)) OR (cv\b_spline_curve. self_intersect = UNKNOWN) THEN RETURN (TRUE); ELSE IF SIZEOF(['CONFIG_CONTROL_DESIGN.CONIC' , 'CONFIG_CONTROL_DESIGN.LINE'] * TYPEOF(cv)) = 1 THEN RETURN (TRUE) ; ELSE IF 'CONFIG_CONTROL_DESIGN.CURVE_REPLICA' IN TYPEOF(cv) THEN RETURN(msf_curve_check(cv\curve_replica.parent_curve)); ELSE IF ('CONFIG_CONTROL_DESIGN.OFFSET_CURVE_3D' IN TYPEOF(cv)) AND ((cv\offset_curve_3d.self_intersect = FALSE) OR (cv\ offset_curve_3d.self_intersect = UNKNOWN)) AND (NOT ( 'CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF(cv.basis_curve))) THEN RETURN(msf_curve_check(cv\offset_curve_3d.basis_curve)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.PCURVE ' IN TYPEOF(cv) THEN RETURN (msf_curve_check(cv\pcurve.reference_to_curve\ representation.items[1]) AND msf_surface_check(cv\ pcurve.basis_surface)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.SURFACE_CURVE' IN TYPEOF(cv) THEN IF msf_curve_check(cv\surface_curve.curve_3d) THEN REPEAT i := 1 TO SIZEOF(cv\surface_curve. associated_geometry) BY 1; IF 'CONFIG_CONTROL_DESIGN.SURFACE' IN TYPEOF(cv\ surface_curve.associated_geometry [i]) THEN IF NOT msf_surface_check(cv\surface_curve. associated_geometry[i]) THEN RETURN (FALSE) ; END_IF ; ELSE
IF 'CONFIG_CONTROL_DESIGN.PCURVE' IN TYPEOF(cv\ surface_curve.associated_geometry[i]) THEN IF NOT msf_curve_check(cv\surface_curve. associated_geometry [i]) THEN RETURN (FALSE) ; END_IF; END_IF; END_IF ; END_REPEAT; RETURN (TRUE) ; END_IF; ELSE IF 'CONFIG_CONTROL_DESIGN.POLYLINE' IN TYPEOF(cv) THEN IF SIZEOF(cv\polyline.points) >= 3 THEN RETURN (TRUE) ; END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; END_IF; END_IF; END_IF; END_IF ; RETURN (FALSE) ; END_FUNCTION; - - msf_curve_check FUNCTION msf_surface_check(surf: surface): BOOLEAN; IF 'CONFIG_CONTROL_DESIGN.ELEMENTARY_SURFACE' IN TYPEOF (surf) THEN RETURN (TRUE) ; ELSE IF 'CONFIG_CONTROL_DESIGN.SWEPT_SURFACE' IN TYPEOF (surf) THEN RETURN(msf_curve_check(surf\swept_surface.swept_curve)) ; ELSE IF (('CONFIG_CONTROL_DESIGN.OFFSET_SURFACE' IN TYPEOF (surf)) AND ( surf\offset_surface.self_intersect = FALSE)) OR (surf\ offset_surface.self_intersect = UNKNOWN) THEN RETURN (msf_surface_check(surf\offset_surface.basis_surface)) ;
ELSE IF 'CONFIG_CONTROL_DESIGN.SURFACE_REPLICA' IN TYPEOF (surf) THEN RETURN (msf_surface_check(surf\surface_replica.parent_surface)) ; ELSE IF (('CONFIG_CONTROL_DESIGN.B_SPLINE_SURFACE' IN TYPEOF (surf)) AND (surf\b_spline_surface.self_intersect = FALSE)) OR ( surf\b_spline_surface.self_intersect = UNKNOWN) THEN RETURN (TRUE) ; END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; RETURN (FALSE) ; END FUNCTION; - - msf_surface_check FUNCTION normalise(arg: vector_or_direction): vector_or_direction; LOCAL
ndim		: INTEGER;
v		: direction;
vec		: vector;
mag		: REAL ;
result		: vector_or_direction;
END_LOCAL ; IF NOT EXISTS (arg) THEN result := ?; ELSE ndim := arg.dim; IF 'CONFIG_CONTROL_DESIGN.VECTOR' IN TYPEOF (arg) THEN BEGIN v := dummy_gri | | direction(arg.orientation.direction_ratios); IF arg.magnitude = 0 THEN RETURN (?); ELSE vec := dummy_gri | | vector(v, 1); END_IF ; END; ELSE v := dummy_gri | | direction(arg.direction_ratios); END_IF ; mag : = 0 ; REPEAT i := 1 TO ndim BY 1; mag := mag + (v.direction_ratios[i] * v.direction_ratios[i]); END_REPEAT ; IF mag > 0 THEN mag := SQRT(mag); REPEAT i := 1 TO ndim BY 1; v.direction_ratios[i] := v.direction_ratios[i]/mag; END_REPEAT ; IF 'CONFIG_CONTROL_DESIGN.VECTOR' IN TYPEOF(arg) THEN vec.orientation := v; result := vec; ELSE result := v; END_IF; ELSE RETURN (?) ; END_IF ; END_IF ; RETURN (result) ;
END_FUNCTION; - - normalise FUNCTION open_shell_reversed(a_shell: open_shell): oriented_open_shell; LOCAL the_reverse : oriented_open_shell; END_LOCAL ; IF 'CONFIG_CONTROL_DESIGN.ORIENTED_OPEN_SHELL' IN TYPEOF(a_shell) THEN the_reverse := dummy_tri | | connected_face_set(a_shell\ connected_face_set.cfs_faces) | | open_shell( ) | | oriented_open_shell (a_shell\oriented_open_shell. open_shell_element, NOT a_shell\oriented_open_shell.orientation) ; ELSE the_reverse := dummy_tri | | connected_face_set(a_shell\ connected_face_set.cfs_faces) | | open_shell( ) | | oriented_open_shell (a_shell, FALSE) ; END_IF; RETURN (the_reverse) ; END_FUNCTION; - - open_shell_reversed FUNCTION orthogonal_complement(vec: direction): direction; LOCAL result : direction; END_LOCAL ; IF (vec.dim < > 2) OR (NOT EXISTS(vec)) THEN RETURN (?); ELSE result := dummy_gri | | direction ([-vec.direction_ratios[2], vec. direction_ratios [1]]) ; RETURN (result) ; END_IF; END_FUNCTION; - - orthogonal_complement FUNCTION path_head_to_tail(a_path: path): LOGICAL; LOCAL n : INTEGER; p : BOOLEAN := TRUE ; END_LOCAL; n := SIZEOF(a_path.edge_list); REPEAT i := 2 TO n BY 1;
p := p AND (a_path.edge_list[i - 1].edge_end :=: a_path.edge_list[i] .edge_start) ; END_REPEAT ; RETURN (p) ; END_FUNCTION; - - path_head_to_tail FUNCTION path_reversed(a_path: path): oriented_path; LOCAL the_reverse : oriented_path; END_LOCAL ; IF 'CONFIG_CONTROL_DESIGN.ORIENTED_PATH' IN TYPEOF(a_path) THEN the_reverse : = dummy_tri | | path(list_of_topology_reversed(a_path. edge_list)) | | oriented_path(a_path\oriented_path.path_element, NOT a_path\oriented_path.orientation) ; ELSE the_reverse := dummy_tri | | path(list_of_topology_reversed(a_path. edge_list)) | | oriented_path(a_path, FALSE); END_IF ; RETURN (the_reverse) ; END_FUNCTION; - - path_reversed FUNCTION scalar_times_vector (scalar: REAL; vec: vector_or_direction): vector; LOCAL
v		: direction;
mag		: REAL;
result		: vector;
END_LOCAL ; IF (NOT EXISTS(scalar)) OR (NOT EXISTS(vec)) THEN RETURN(?); ELSE IF 'CONFIG_CONTROL_DESIGN.VECTOR' IN TYPEOF (vec) THEN v := dummy_gri | | direction(vec.orientation.direction_ratios); mag := scalar * vec.magnitude; ELSE v := dummy_gri | | direction(vec.direction_ratios); mag := scalar; END_IF ; IF mag < 0 THEN REPEAT i := 1 TO SIZEOF (v.direction_ratios) BY 1; v.direction_ratios[i] := -v.direction_ratios[i]; END_REPEAT ; mag := -mag ; END_IF ; result := dummy_gri | | vector(normalise(v), mag); END_IF; RETURN (result) ; END_FUNCTION; - - scalar_times_vector FUNCTION second_proj_axis(z_axis, x_axis, arg: direction ): direction; LOCAL
temp		: vector;
v		: direction;
y_axis		: vector;
END_LOCAL ; IF NOT EXISTS (arg) THEN v := dummy_gri | | direction ([0, 1, 0]); ELSE v := arg; END_IF; temp := scalar_times_vector (dot_product (v, z_axis), z_axis); y_axis := vector_difference(v, temp); temp := scalar_times_vector(dot_product(v, x_axis), x_axis); y_axis := vector_difference(y_axis, temp); y_axis := normalise(y_axis); RETURN (y_axis.orientation) ; END_FUNCTION; - - second_proj_axis FUNCTION set_of_topology_reversed (a_set : set_of_reversible_topology_item ): set_of_reversible_topology_item; LOCAL the_reverse : set_of_reversible_topology_item; END_LOCAL ; the_reverse := [ ] ; REPEAT i := 1 TO SIZEOF (a_set) BY 1; the_reverse := the_reverse + topology_reversed(a_set[i]); END_REPEAT; RETURN (the_reverse) ; END_FUNCTION; - - set_of_topology_reversed FUNCTION shell_reversed(a_shell: shell): shell; IF 'CONFIG_CONTROL_DESIGN.OPEN_SHELL' IN TYPEOF(a_shell) THEN RETURN(open_shell_reversed(a_shell)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.CLOSED_SHELL' IN TYPEOF(a_shell) THEN
RETURN (closed_shell_reversed(a_shell)) ; ELSE RETURN (?) ; END_IF; END_IF; END_FUNCTION; - - shell_reversed FUNCTION surface_weights_positive(b: rational_b_spline_surface ) : BOOLEAN; LOCAL result : BOOLEAN := TRUE; END_LOCAL ; REPEAT i := 0 TO b.u_upper BY 1; REPEAT j := 0 TO b.v_upper BY 1; IF b.weights[i][j] <= 0 THEN result := FALSE; RETURN (result) ; END_IF; END_REPEAT ; END_REPEAT ; RETURN (result) ; END_FUNCTION; - - surface_weights_positive FUNCTION topology_reversed(an_item: reversible_topology ): reversible_topology; IF 'CONFIG_CONTROL_DESIGN.EDGE' IN TYPEOF(an_item) THEN RETURN (edge_reversed(an_item)) ; END_IF ; IF 'CONFIG_CONTROL_DESIGN.PATH' IN TYPEOF(an_item) THEN RETURN (path_reversed(an_item)) ; END_IF; IF 'CONFIG_CONTROL_DESIGN.FACE_BOUND' IN TYPEOF(an_item) THEN RETURN (face_bound_reversed(an_item)) ; END_IF ; IF 'CONFIG_CONTROL_DESIGN.FACE' IN TYPEOF(an_item) THEN RETURN (face_reversed(an_item)) ; END_IF; IF 'CONFIG_CONTROL_DESIGN.SHELL' IN TYPEOF(an_item) THEN
RETURN (shell_reversed(an_item)) ; END_IF; IF 'SET' IN TYPEOF(an_item) THEN RETURN (set_of_topology_reversed(an_item)) ; END_IF ; IF 'LIST' IN TYPEOF(an_item) THEN RETURN (list_of_topology_reversed(an_item)) ; END_IF ; RETURN (?) ; END_FUNCTION; - - topology_reversed FUNCTION unique_version_change_order(c: action): BOOLEAN; LOCAL
ords		: action_directive := c\directed_action.directive;
assign		: SET OF change_request := [ ];
versions		: SET OF product_definition_formation := [ ];
END_LOCAL ; REPEAT i := 1 TO SIZEOF(ords.requests) BY 1; assign := assign + QUERY ( ara <* bag_to_set(USEDIN(ords.requests[i], 'CONFIG_CONTROL_DESIGN.ACTION_REQUEST_ASSIGNMENT.' + 'ASSIGNED_ACTION_REQUEST')) | ( 'CONFIG_CONTROL_DESIGN.CHANGE_REQUEST' IN TYPEOF(ara)) ); END_REPEAT ; REPEAT k := 1 TO SIZEOF(assign) BY 1; versions := versions + assign[k].items; END_REPEAT ; RETURN(SIZEOF(QUERY ( vers <* versions | (NOT (SIZEOF( QUERY ( other_vers <* (versions - vers) | (vers.of_product :=: other_vers.of_product) )) = 0)) )) = 0); END_FUNCTION; - - unique_version_change_order FUNCTION using_items (item: founded_item_select; checked_items: SET OF founded_item_select ): SET OF founded_item_select; LOCAL
next_items				: SET OF founded_item_select;
new_check_items				: SET OF founded_item_select;
result_items				: SET OF founded_item_select;
END_LOCAL ; result_items := [ ]; new_check_items := checked_items + item; next_items := QUERY ( z <* bag_to_set(USEDIN(item,' ')) | (( 'CONFIG_CONTROL_DESIGN.REPRESENTATION_ITEM' IN TYPEOF(z)) OR ( 'CONFIG_CONTROL_DESIGN.FOUNDED_ITEM' IN TYPEOF(z))) ); IF SIZEOF(next_items) > 0 THEN REPEAT i := 1 TO HIINDEX(next_items) BY 1; IF NOT (next_items[i] IN new_check_items) THEN result_items := result_items + next _items[i] + using _items( next_items[i], new_check_items) ; END_IF ; END_REPEAT ; END_IF; RETURN (result_items) ; END_FUNCTION; - - using_items FUNCTION using_representations (item: founded_item_select ): SET OF representation; LOCAL
results				: SET OF representation;
intermediate_items				: SET OF founded_item_select;
result_bag				: BAG OF representation;
END_LOCAL ; results := [ ]; result_bag := USEDIN (item, 'CONFIG_CONTROL_DESIGN.REPRESENTATION.ITEMS') ; IF SIZEOF (result_bag) > 0 THEN REPEAT i := 1 TO HIINDEX (result_bag) BY 1; results := results + result_bag[i]; END_REPEAT ; END_IF ; intermediate_items := using_items(item, [ ]); IF SIZEOF (intermediate_items) > 0 THEN REPEAT i := 1 TO HIINDEX (intermediate_items) BY 1; result_bag := USEDIN (intermediate_items [i], 'CONFIG_CONTROL_DESIGN.REPRESENTATION.ITEMS') ; IF SIZEOF (result_bag) > 0 THEN REPEAT j := 1 TO HIINDEX (result_bag) BY 1; results := results + result_bag [j]; END_REPEAT ; END_IF; END_REPEAT ; END_IF ; RETURN (results) ; END_FUNCTION; - - using_representations FUNCTION valid_calendar_date (date: calendar_date) : LOGICAL; IF NOT ((1 <= date.day_component) AND (date.day_component <= 31)) THEN RETURN (FALSE); END_IF; CASE date.month_component OF
4	: RETURN((1 <= date.day_component) AND (date. day_component <= 30));
6	: RETURN((1 <= date.day_component) AND (date. day_component <= 30));
9	: RETURN((1 <= date.day_component) AND (date. day_component <= 30)) ;
11	: RETURN((1 <= date.day_component) AND (date. day_component <= 30));
2	: BEGIN
IF leap_year(date.year_component) THEN RETURN((1 <= date.day_component) AND (date.day_component <= 29)); ELSE RETURN((1 <= date.day_component) AND (date.day_component <= 28)); END_IF ; END; OTHERWISE : RETURN(TRUE) ; END_CASE ; END_FUNCTION; - - valid_calendar_date FUNCTION valid_geometrically_bounded_wf_curve(crv: curve): BOOLEAN; IF SIZEOF (['CONFIG_CONTROL_DESIGN.POLYLINE', 'CONFIG_CONTROL_DESIGN.B_SPLINE_CURVE' , 'CONFIG_CONTROL_DESIGN.ELLIPSE', 'CONFIG_CONTROL_DESIGN.CIRCLE'] * TYPEOF(crv)) = 1 THEN RETURN(TRUE); ELSE IF 'CONFIG_CONTROL_DESIGN.TRIMMED_CURVE' IN TYPEOF(crv) THEN IF SIZEOF (['CONFIG_CONTROL_DESIGN.LINE' , 'CONFIG_CONTROL_DESIGN.PARABOLA' , 'CONFIG_CONTROL_DESIGN.HYPERBOLA'] * TYPEOF (crv\trimmed_curve. basis_curve)) = 1 THEN RETURN(TRUE); ELSE RETURN (valid_geometrically_bounded_wf_curve(crv\trimmed_curve. basis_curve)) ; END_IF; ELSE IF 'CONFIG_CONTROL_DESIGN.OFFSET_CURVE_3D' IN TYPEOF(crv) THEN RETURN (valid_geometrically_bounded_wf_curve(crv\offset_curve_3d. basis_curve)) ;
ELSE IF 'CONFIG_CONTROL_DESIGN.CURVE_REPLICA' IN TYPEOF(crv) THEN RETURN (valid_geometrically_bounded_wf_curve(crv\curve_replica. parent_curve)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.COMPOSITE_CURVE' IN TYPEOF(crv) THEN RETURN (SIZEOF(QUERY ( ccs <* crv\composite_curve.segments | (NOT valid_geometrically_bounded_wf_curve(ccs. parent_curve)) )) = 0); END_IF ; END_IF ; END_IF ; END_IF ; END_IF ; RETURN (FALSE) ; END_FUNCTION; - - valid_geometrically_bounded_wf_curve FUNCTION valid_geometrically_bounded_wf_point(pnt: point): BOOLEAN; IF 'CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' IN TYPEOF(pnt) THEN RETURN (TRUE) ; ELSE IF 'CONFIG_CONTROL_DESIGN.POINT_ON_CURVE' IN TYPEOF(pnt) THEN RETURN (valid_geometrically_bounded_wf_curve(pnt\point_on_curve. basis_curve)) ; ELSE IF 'CONFIG_CONTROL_DESIGN.POINT_REPLICA' IN TYPEOF(pnt) THEN RETURN (valid_geometrically_bounded_wf_point(pnt\point_replica. parent_pt)) ; END_IF ; END_IF ; END_IF ; RETURN (FALSE) ; END_FUNCTION; - - valid_geometrically_bounded_wf_point FUNCTION valid_measure_value(m: measure_value): BOOLEAN;
IF 'REAL' IN TYPEOF(m) THEN RETURN (m > 0); ELSE IF 'INTEGER' IN TYPEOF(m) THEN RETURN (m > 0); ELSE RETURN (TRUE) ; END_IF; END_IF ; END_FUNCTION; - - valid_measure_value FUNCTION valid_time(time: local_time): BOOLEAN; IF EXISTS (time.second_component) THEN RETURN(EXISTS(time.minute_component)) ; ELSE RETURN (TRUE) ; END_IF; END_FUNCTION; - - valid_time FUNCTION valid_units(m: measure_with_unit): BOOLEAN; IF 'CONFIG_CONTROL_DESIGN.LENGTH_MEASURE' IN TYPEOF(m.value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents(1, 0, 0, 0, 0, 0, 0) THEN RETURN(FALSE); END_IF ; END_IF; IF 'CONFIG.CONTROL.DESIGN.MASS.MEASURE' IN TYPEOF(m.value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (0, 1, 0, 0, 0, 0, 0) THEN RETURN (FALSE) ; END_IF; END_IF; IF 'CONFIG_CONTROL_DESIGN.TIME_MEASURE' IN TYPEOF(m.value_component) THEN
IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (0, 0, 1, 0, 0, 0, 0) THEN RETURN (FALSE); END_IF; END_IF; IF 'CONFIG_CONTROL_DESIGN.ELECTRIC_CURRENT_MEASURE' IN TYPEOF(m. value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (0, 0, 0, 1, 0, 0, 0) THEN RETURN (FALSE); END_IF; END_IF; IF 'CONFIG_CONTROL_DESIGN.THERMODYNAMIC_TEMPERATURE_MEASURE' IN TYPEOF (m.value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (0, 0, 0, 0, 1, 0, 0) THEN RETURN (FALSE); END_IF; END_IF; IF 'CONFIG_CONTROL_DESIGN.AMOUNT_OF_SUBSTANCE_MEASURE' IN TYPEOF (m.. value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (0, 0, 0, 0, 0, 1, 0) THEN RETURN (FALSE); END_IF ; END_IF ; IF 'CONFIG_CONTROL_DESIGN.LUMINOUS_INTENSITY_MEASURE' IN TYPEOF (m.. value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents(0, 0, 0, 0, 0, 0, 1) THEN RETURN (FALSE); END_IF ; END_IF ; IF 'CONFIG_CONTROL_DESIGN.PLANE_ANGLE_MEASURE' IN TYPEOF (m. value_component) THEN IF derive_dimensional_exponents(m.init_component) < > dimensional_exponents (0, 0, 0, 0, 0, 0, 0) THEN RETURN(FALSE); END_IF ;
END_IF ; IF 'CONFIG_CONTROL_DESIGN.SOLID_ANGLE_MEASURE' IN TYPEOF (m. value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (0, 0, 0, 0, 0, 0, 0) THEN RETURN (FALSE); END_IF ; END_IF ; IF 'CONFIG_CONTROL_DESIGN.AREA_MEASURE' IN TYPEOF (m.value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (2, 0, 0, 0, 0, 0, 0) THEN RETURN (FALSE) ; END_IF ; END_IF ; IF 'CONFIG_CONTROL_DESIGN.VOLUME_MEASURE' IN TYPEOF (m.value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (3, 0, 0, 0, 0, 0, 0) THEN RETURN (FALSE); END_IF ; END_IF ; IF 'CONFIG_CONTROL_DESIGN.RATIO_MEASURE' IN TYPEOF (m.value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (0, 0, 0, 0, 0, 0, 0) THEN RETURN (FALSE); END_IF ; END_IF; IF 'CONFIG_CONTROL_DESIGN.POSITIVE_LENGTH_MEASURE' IN TYPEOF(m. value_component) THEN IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (1, 0, 0, 0, 0, 0, 0) THEN RETURN(FALSE); END_IF ; END_IF; IF 'CONFIG_CONTROL_DESIGN.POSITIVE_PLANE_ANGLE_MEASURE' IN TYPEOF (m. value_component) THEN
IF derive_dimensional_exponents(m.unit_component) < > dimensional_exponents (0, 0, 0, 0, 0, 0, 0) THEN RETURN(FALSE); END_IF ; END_IF ; RETURN (TRUE) ; END_FUNCTION; - - valid_units FUNCTION valid_wireframe_edge_curve(crv: curve): BOOLEAN; IF SIZEOF(['CONFIG_CONTROL_DESIGN.LINE', 'CONFIG_CONTROL_DESIGN.CONIC', 'CONFIG_CONTROL_DESIGN.B_SPLINE_CURVE', 'CONFIG_CONTROL_DESIGN.POLYLINE'] * TYPEOF(crv)) = 1 THEN RETURN (TRUE) ; ELSE IF 'CONFIG_CONTROL_DESIGN.CURVE_REPLICA' IN TYPEOF(crv) THEN RETURN (valid_wireframe_edge_curve(crv\curve_replica.parent_curve)); ELSE IF 'CONFIG_CONTROL_DESIGN.OFFSET_CURVE_3D' IN TYPEOF(crv) THEN RETURN (valid_wireframe_edge_curve(crv\offset_curve_3d. basis_curve)); END_IF ; END_IF ; END_IF ; RETURN (FALSE) ; END_FUNCTION; - - valid_wireframe_edge_curve FUNCTION valid_wireframe_vertex_point(pnt: point): BOOLEAN; IF 'CONFIG_CONTROL_DESIGN.CARTESIAN_POINT' IN TYPEOF (pnt) THEN RETURN (TRUE) ; ELSE IF 'CONFIG_CONTROL_DESIGN.POINT_REPLICA' IN TYPEOF(pnt) THEN RETURN (valid_wireframe_vertex_point(pnt\point_replica.parent_pt)); END_IF ; END_IF ; RETURN (FALSE) ;
END_FUNCTION; - - valid_wireframe_vertex_point FUNCTION vector_difference(arg1, arg2: vector_or_direction ): vector; LOCAL
ndim		: INTEGER;
mag2		: REAL;
mag1		: REAL;
mag		: REAL;
res		: direction;
vec1		: direction;
vec2		: direction;
result		: vector;
END_LOCAL; IF (NOT EXISTS (arg1)) OR (NOT EXISTS(arg2)) OR (arg1.dim < > arg2.dim) THEN RETURN (?) ; ELSE BEGIN IF 'CONFIG_CONTROL_DESIGN.VECTOR' IN TYPEOF(arg1) THEN
mag1				:= arg1.magnitude ;
vec1				:= arg1.orientation;
ELSE
mag1				:= 1;
vec1				:= arg1;
END_IF ; IF 'CONFIG_CONTROL_DESIGN.VECTOR' IN TYPEOF (arg2) THEN
mag2				:= arg2.magnitude;
vec2				:= arg2.orientation;
ELSE
mag2				:= 1 ;
vec2				:= arg2;
END_IF ;
vec1				:= normalise(vec1);
vec2				:= normalise(vec2);
ndim				:= SIZEOF(vec1.direction_ratios);
mag				:= 0 ;
res				:= dummy_gri | | direction(vec1.direction_ratios);
REPEAT i := 1 TO ndim BY 1; res.direction_ratios[i] := (mag1 * vec1.direction_ratios[i]) + ( mag2 * vec2.direction_ratios[i]); mag := mag + (res.direction_ratios[i] * res.direction_ratios[i]); END_REPEAT ; IF mag > 0 THEN result := dummy_gri | | vector(res, SQRT(mag)); ELSE result := dummy_gri | | vector(vec1, 0); END_IF; END; END_IF; RETURN (result) ; END_FUNCTION; - - vector_difference END_SCHEMA; - - config_control_design (*

Полное наименование объекта	Сокращенное наименование
ACTION	ACTION
ACTION_ASSIGNMENT	ACTASS
ACTION_DIRECTIVE	ACTDRC
ACTION_METHOD	ACTMTH
ACTION_REQUEST_ASSIGNMENT	ACRQAS
ACTION_REQUEST_SOLUTION	ACRQSL
ACTION_REQUEST_STATUS	ACRQST
ACTION_STATUS	ACTSTT
ADDRESS	ADDRSS
ADVANCED_BREP_SHAPE_REPRESENTATION	ABSR
ADVANCED_FACE	ADVFC
ALTERNATE_PRODUCT_RELATIONSHIP	ALPRRL
APPLICATION_CONTEXT	APPCNT
APPLICATION_CONTEXT_ELEMENT	APCNEL
APPLICATION_PROTOCOL_DEFINITION	APPRDF
APPROVAL	APPRVL
APPROVAL_ASSIGNMENT	APPASS
APPROVAL_DATE_TIME	APDTTM
APPROVAL_PERSON_ORGANIZATION	APPROR
APPROVAL_RELATIONSHIP	APPRLT
APPROVAL_ROLE	APPRL
APPROVAL_STATUS	APPSTT
AREA_MEASURE_WITH_UNIT	AMWU
AREA_UNIT	ARUNT
ASSEMBLY_COMPONENT_USAGE	ASCMUS
ASSEMBLY_COMPONENT_USAGE_SUBSTITUTE	ACUS
AXIS1_PLACEMENT	AX1PLC
AXIS2_PLACEMENT_2D	A2PL2D
AXIS2_PLACEMENT_3D	A2PL3D
BEZIER_CURVE	BZRCRV
BEZIER_SURFACE	BZRSRF
BOUNDARY_CURVE	BNDCR
BOUNDED_CURVE	BNDCRV
BOUNDED_SURFACE	BNDSRF
BREP_WITH_VOIDS	BRWTVD
B_SPLINE_CURVE	BSPCR
B_SPLINE_CURVE_WITH_KNOTS	BSCWK
B_SPLINE_SURFACE	BSPSR
B_SPLINE_SURFACE_WITH_KNOTS	BSSWK
CALENDAR_DATE	CLNDT
CARTESIAN_POINT	CRTPNT
CARTESIAN_TRANSFORMATION_OPERATOR	CRTROP
CARTESIAN_TRANSFORMATION_OPERATOR_3D	CTO3
CC_DESIGN_APPROVAL	CCDSAP
CC_DESIGN_CERTIFICATION	CCDSCR
CC_DESIGN_CONTRACT	CCDSCN
CC_DESIGN_DATE_AND_TIME_ASSIGNMENT	CDDATA
CC_DESIGN_PERSON_AND_ORGANIZATION_ASSIGNMENT	CDPAOA
CC_DESIGN_SECURITY_CLASSIFICATION	CDSC
CC_DESIGN_SPECIFICATION_REFERENCE	CDS
CERTIFICATION	CRTFCT
CERTIFICATION_ASSIGNMENT	CRTASS
CERTIFICATION_TYPE	CRTTYP
CHANGE	CHANGE
CHANGE_REQUEST	CHNRQS
CIRCLE	CIRCLE
CLOSED_SHELL	CLSSHL
COMPOSITE_CURVE	CMPCRV
COMPOSITE_CURVE_ON_SURFACE	CCOS
COMPOSITE_CURVE_SEGMENT	CMCRSG
CONFIGURATION_DESIGN	CNFDSG
CONFIGURATION_EFFECTIVITY	CNFEFF
CONFIGURATION_ITEM	CNFITM
CONIC	CONIC
CONICAL_SURFACE	CNCSRF
CONNECTED_EDGE_SET	CNEDST
CONNECTED_FACE_SET	CNFCST
CONTEXT_DEPENDENT_SHAPE_REPRESENTATION	CDSR
CONTEXT_DEPENDENT_UNIT	CNDPUN
CONTRACT	CNTRCT
CONTRACT_ASSIGNMENT	CNTASS
CONTRACT_TYPE	CNTTYP
CONVERSION_BASED_UNIT	CNBSUN
COORDINATED_UNIVERSAL_TIME_OFFSET	CUTO
CURVE	CURVE
CURVE_BOUNDED_SURFACE	CRBNSR
CURVE_REPLICA	CRVRPL
CYLINDRICAL_SURFACE	CYLSRF
DATE	DATE
DATED_EFFECTIVITY	DTDEFF
DATE_AND_TIME	DFANTM
DATE_AND_TIME_ASSIGNMENT	DATA
DATE_TIME_ROLE	DTTMRL
DEFINITIONAL_REPRESENTATION	DFNRPR
DEGENERATE_PCURVE	DGNPCR
DEGENERATE_TOROIDAL_SURFACE	DGTRSR
DESIGN_CONTEXT	DSGCNT
DESIGN_MAKE_FROM_RELATIONSHIP	DMFR
DIMENSIONAL_EXPONENTS	DMNEXP
DIRECTED_ACTION	DRCACT
DIRECTION	DRCTN
DOCUMENT	DCMNT
DOCUMENT_REFERENCE	DCMRFR
DOCUMENT_RELATIONSHIP	DCMRLT
DOCUMENT_TYPE	DCMTYP
DOCUMENT_USAGE_CONSTRAINT	DCUSCN
DOCUMENT_WITH_CLASS	DCWTCL
EDGE	EDGE
EDGE_BASED_WIREFRAME_MODEL	EBWM
EDGE_BASED_WIREFRAME_SHAPE_REPRESENTATION	EBWSR
EDGE_CURVE	EDGCRV
EDGE_LOOP	EDGLP
EFFECTIVITY	EFFCTV
ELEMENTARY_SURFACE	ELMSRF
ELLIPSE	ELLPS
EVALUATED_DEGENERATE_PCURVE	EVDGPC
EXECUTED_ACTION	EXCACT
FACE	FACE
FACETED_BREP	FCTBR
FACETED_BREP_SHAPE_REPRESENTATION	FBSR
FACE_BOUND	FCBND
FACE_OUTER_BOUND	FCOTBN
FACE_SURFACE	FCSRF
FUNCTIONALLY_DEFINED_TRANSFORMATION	FNDFTR
GEOMETRICALLY_BOUNDED_SURFACE_SHAPE_REPRESENTATION	GBSSR
GEOMETRICALLY_BOUNDED_WIREFRAME_SHAPE_REPRESENTATION	GBWSR
GEOMETRIC_CURVE_SET	GMCRST
GEOMETRIC_REPRESENTATION_CONTEXT	GMRPCN
GEOMETRIC_REPRESENTATION_ITEM	GMRPIT
GEOMETRIC_SET	GMTST
GLOBAL_UNCERTAINTY_ASSIGNED_CONTEXT	GC
GLOBAL_UNIT_ASSIGNED_CONTEXT	GUAC
HYPERBOLA	HYPRBL
INTERSECTION_CURVE	INTCRV
ITEM_DEFINED_TRANSFORMATION	ITDFTR
LENGTH_MEASURE_WITH_UNIT	LMWU
LENGTH_UNIT	LNGUNT
LINE	LINE
LOCAL_TIME	LCLTM
LOOP	LOOP
LOT_EFFECTIVITY	LTEFF
MANIFOLD_SOLID_BREP	MNSLBR
MANIFOLD_SURFACE_SHAPE_REPRESENTATION	MSSR
MAPPED_ITEM	MPPITM
MASS_MEASURE_WITH_UNIT	MMWU
MASS_UNIT	MSSUNT
MEASURE_WITH_UNIT	MSWTUN
MECHANICAL_CONTEXT	MCHCNT
NAMED_UNIT	NMDUNT
NEXT_ASSEMBLY_USAGE_OCCURRENCE	NAUO
OFFSET_CURVE_3D	OFCR3D
OFFSET_SURFACE	OFFSRF
OPEN_SHELL	OPNSHL
ORDINAL_DATE	ORDDT
ORGANIZATION	ORGNZT
ORGANIZATIONAL_ADDRESS	ORGADD
ORGANIZATIONAL_PROJECT	ORGPRJ
ORGANIZATION_RELATIONSHIP	ORGRLT
ORIENTED_CLOSED_SHELL	ORCLSH
ORIENTED_EDGE	ORNEDG
ORIENTED_FACE	ORNFC
ORIENTED_OPEN_SHELL	OROPSH
ORIENTED_PATH	ORNPTH
OUTER_BOUNDARY_CURVE	OTBNCR
PARABOLA	PRBL
PARAMETRIC_REPRESENTATION_CONTEXT	PRRPCN
PATH	PATH
PCURVE	PCURVE
PERSON	PERSON
PERSONAL_ADDRESS	PRSADD
PERSON_AND_ORGANIZATION	PRANOR
PERSON_AND_ORGANIZATION_ASSIGNMENT	PAOA
PERSON_AND_ORGANIZATION_ROLE	PAOR
PLACEMENT	PLCMNT
PLANE	PLANE
PLANE_ANGLE_MEASURE_WITH_UNIT	PAMWU
PLANE_ANGLE_UNIT	PLANUN
POINT	POINT
POINT_ON_CURVE	PNONCR
POINT_ON_SURFACE	PNONSR
POINT_REPLICA	PNTRPL
POLYLINE	PLYLN
POLY_LOOP	PLYLP
PRODUCT	PRDCT
PRODUCT_CATEGORY	PRDCTG
PRODUCT_CATEGORY_RELATIONSHIP	PRCTRL
PRODUCT_CONCEPT	PRDCNC
PRODUCT_CONCEPT_CONTEXT	PRCNCN
PRODUCT_CONTEXT	PRDCNT
PRODUCT_DEFINITION	PRDDFN
PRODUCT_DEFINITION_CONTEXT	PRDFCN
PRODUCT_DEFINITION_EFFECTIVITY	PRDFEF
PRODUCT_DEFINITION_FORMATION	PRDFFR
PRODUCT_DEFINITION_FORMATION_WITH_SPECIFIED_SOURCE	PDFWSS
PRODUCT_DEFINITION_RELATIONSHIP	PRDFRL
PRODUCT_DEFINITION_SHAPE	PRDFSH
PRODUCT_DEFINITION_USAGE	PRDFUS
PRODUCT_DEFINITION_WITH_ASSOCIATED_DOCUMENTS	PDWAD
PRODUCT_RELATED_PRODUCT_CATEGORY	PRPC
PROMISSORY_USAGE_OCCURRENCE	PRUSOC
PROPERTY_DEFINITION	PRPDFN
PROPERTY_DEFINITION_REPRESENTATION	PRDFRP
QUANTIFIED_ASSEMBLY_COMPONENT_USAGE	QACU
QUASI_UNIFORM_CURVE	QSUNCR
QUASI_UNIFORM_SURFACE	QSUNSR
RATIONAL_B_SPLINE_CURVE	RBSC
RATIONAL_B_SPLINE_SURFACE	RBSS
RECTANGULAR_COMPOSITE_SURFACE	RCCMSR
RECTANGULAR_TRIMMED_SURFACE	RCTRSR
REPARAMETRISED_COMPOSITE_CURVE_SEGMENT	RCCS
REPRESENTATION	RPRSNT
REPRESENTATION_CONTEXT	RPRCNT
REPRESENTATION_ITEM	RPRITM
REPRESENTATION_MAP	RPRMP
REPRESENTATION_RELATIONSHIP	RPRRLT
REPRESENTATION_RELATIONSHIP_WITH_TRANSFORMATION	RRWT
SEAM_CURVE	SMCRV
SECURITY_CLASSIFICATION	SCRCLS
SECURITY_CLASSIFICATION_ASSIGNMENT	SCCLAS
SECURITY_CLASSIFICATION_LEVEL	SCCLLV
SERIAL_NUMBERED_EFFECTIVITY	SRNMEF
SHAPE_ASPECT	SHPASP
SHAPE_ASPECT_RELATIONSHIP	SHASRL
SHAPE_DEFINITION_REPRESENTATION	SHDFRP
SHAPE_REPRESENTATION	SHPRPR
SHAPE_REPRESENTATION_RELATIONSHIP	SHRPRL
SHELL_BASED_SURFACE_MODEL	SBSM
SHELL_BASED_WIREFRAME_MODEL	SBWM
SHELL_BASED_WIREFRAME_SHAPE_REPRESENTATION	SBWSR
SI_UNIT	SUNT
SOLID_ANGLE_MEASURE_WITH_UNIT	SAMWU
SOLID_ANGLE_UNIT	SLANUN
SOLID_MODEL	SLDMDL
SPECIFIED_HIGHER_USAGE_OCCURRENCE	SHUO
SPHERICAL_SURFACE	SPHSRF
START_REQUEST	STRRQS
START_WORK	STRWRK
SUPPLIED_PART_RELATIONSHIP	SPPRRL
SURFACE	SRFC
SURFACE_CURVE	SRFCRV
SURFACE_OF_LINEAR_EXTRUSION	SL
SURFACE_OF_REVOLUTION	SROFRV
SURFACE_PATCH	SRFPTC
SURFACE_REPLICA	SRFRPL
SWEPT_SURFACE	SWPSRF
TOPOLOGICAL_REPRESENTATION_ITEM	TPRPIT
TOROIDAL_SURFACE	TRDSRF
TRIMMED_CURVE	TRMCRV
UNCERTAINTY_MEASURE_WITH_UNIT	UMWU
UNIFORM_CURVE	UNFCRV
UNIFORM_SURFACE	UNFSRF
VECTOR	VECTOR
VERSIONED_ACTION_REQUEST	VRACRQ
VERTEX	VERTEX
VERTEX_LOOP	VRTLP
VERTEX_POINT	VRTPNT
VERTEX_SHELL	VRTSHL
VOLUME_MEASURE_WITH_UNIT	VMWU
VOLUME_UNIT	VLMUNT
WEEK_OF_YEAR_AND_DAY_DATE	WOYADD
WIRE_SHELL	WRSHL

ИС МЕГАНОРМ: примечание. Взамен ГОСТ Р ИСО 10303-11-2000 Приказом Росстандарта от 14.09.2009 N 366-ст с 01.07.2010 введен в действие ГОСТ Р ИСО 10303-11-2009.

action
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
изменения объектов ПИМ на языке EXPRESS ..........................	5.2.4.2.30
action_assignment
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
action_directive
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
изменения объектов ПИМ на языке EXPRESS ..........................	5.2.4.2.31
action_method
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
табличное отображение ...............................................................	таблица 4
action_request_assignment
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
action_request_solution
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
изменения объектов ПИМ на языке EXPRESS ..........................	5.2.4.2.12
action_request_status
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
изменения объектов ПИМ на языке EXPRESS ..........................	5.2.4.2.10
табличное отображение ...............................................................	таблица 4
action_status
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
acu_requires_security_classification
развернутый листинг правил ПИМ на языке EXPRESS ...........	приложение A
правила ПИМ на языке EXPRESS ...............................................	5.2.5.70
acyclic_curve_replica
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
acyclic_mapped_representation
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
acyclic_point_replica
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
acyclic_product_category_relationship
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
acyclic_product_definition_relationship
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
acyclic_surface_replica
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
additional_data
атрибут прикладного объекта .....................................................	4.2.40.1
табличное отображение ..............................................................	таблица 4
additional_design_information
прикладное утверждение ............................................................	4.3
прикладной объект ......................................................................	4.2.1
табличное отображение ..............................................................	таблицы 5 и 11
address
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
атрибут прикладного объекта .....................................................	4.2.21.1
табличное отображение ..............................................................	таблица 2
adopted_solution
атрибут прикладного объекта .....................................................	4.2.5.1
табличное отображение ..............................................................	таблица 4
advanced_b_rep
прикладной объект ......................................................................	4.2.2
табличное отображение ..............................................................	таблица 1
advanced_boundary_representation
функциональная единица ............................................................	4.1.1
advanced_brep_representation
табличное отображение ..............................................................	таблица 1
advanced_brep_shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
advanced_face
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
ahead_or_behind
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
alternate_part
прикладное утверждение ...........................................................	4.3.4
прикладной объект .....................................................................	4.2.3
табличное отображение .............................................................	таблицы 3 и 11
alternate_product_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение ..............................................................	таблицы 3 и 11
analysis_data
атрибут прикладного объекта .....................................................	4.2.40.2
табличное отображение ..............................................................	таблица 4
application_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.1
application_context_element
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
application_context_requires_ap_definition
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.1
application_protocol_definition
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.2
approval
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.4.2.16
прикладное утверждение ...........................................................	4.3
прикладной объект .....................................................................	4.2.4
табличное отображение .............................................................	таблицы 2, 4, 6, 7, 11 и 13
approval_assignment
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.4.2.17
approval_date_time
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.4.2.19
approval_date_time_constraints
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.5.78
approval_item
табличное отображение .............................................................	таблица 4
approval_person_organization
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.4.2.18
табличное отображение .............................................................	таблица 2
approval_person_organization_constraints
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS ............................................	5.2.5.79
approval_relationship
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
approval_requires_approval_date_time
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.33
approval_requires_approval_person_organization
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.32
approval_role
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
approval_status
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.15
табличное отображение .............................................................	таблицы 2 и 11
approvals_are_assigned
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.31
approved_item
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
тип ПИМ на языке EXPRESS ....................................................	5.2.3.5
табличное отображение ............................................................	таблицы 6, 7, 11 и 13
area_measure
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
area_measure_with_unit
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
area_unit
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
as_required
атрибут прикладного объекта ....................................................	4.2.12.1
табличное отображение .............................................................	таблица 3
as_required_quantity
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.47
assembly_component_usage
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.4.2.46
табличное отображение ............................................................	таблица 3
assembly_component_usage_substitute
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
табличное отображение .............................................................	таблица 3
assembly_shape_is_defined
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
функции ПИМ на языке EXPRESS ............................................	5.2.6.4
associated_surface
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
authorization
функциональная единица ...........................................................	4.1.2
axis1_placement
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
axis2_placement
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
axis2_placement_2d
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
axis2_placement_3d
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
b_spline_curve
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
b_spline_curve_form
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
b_spline_curve_with_knots
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
b_spline_surface
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
b_spline_surface_form
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
b_spline_surface_with_knots
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
bag_to_set
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
base_axis
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
bezier_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
bezier_surface
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
bill_of_material
функциональная единица ...........................................................	4.1.3
boolean_choose
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
boolean_operand
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
boundary_curve
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
bounded_curve
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
bounded_surface
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
brep_with_voids
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
build_2axes
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
build_axes
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
cad_filename
ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду п. 4.2.8.1, а не 4.2.8.11.
атрибут прикладного объекта .....................................................	4.2.8.11
табличное отображение ..............................................................	таблица 11
calendar_date
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
cartesian_point
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
cartesian_transformation_operator
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
cartesian_transformation_operator_3d
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
cc_design_approval
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.10
табличное отображение .............................................................	таблица 2
cc_design_certification
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.9
табличное отображение .............................................................	таблица 13
cc_design_contract
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.11
cc_design_date_and_time_assignment
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
объект ПИМ на языке EXPRESS ...............................................	5.2.4.1.14
cc_design_date_time_correlation
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
функции ПИМ на языке EXPRESS ............................................	5.2.6.3
cc_design_person_and_organization_assignment
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.13
табличное отображение .............................................................	таблица 2
cc_design_person_and_organization_correlation
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
функции ПИМ на языке EXPRESS ............................................	5.2.6.2
cc_design_security_classification
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.12
cc_design_specification_reference
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.15
certification
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.14
certification_assignment
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
certification_required
атрибут прикладного объекта ....................................................	4.2.35.1
табличное отображение .............................................................	таблица 13
certification_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.28
certification_requires_date_time
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.30
certification_type
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.13
certified_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
типы ПИМ на языке EXPRESS....................................................	5.2.3.4
change
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.7
табличное отображение .............................................................	таблица 4
change_date
атрибут прикладного объекта ....................................................	4.2.5.2
табличное отображение .............................................................	таблица 4
change_order
прикладной объект .....................................................................	4.2.5
табличное отображение .............................................................	таблица 4
change_request
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.5
прикладной объект .....................................................................	4.2.6
табличное отображение .............................................................	таблица 4
change_request_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
типы ПИМ на языке EXPRESS...................................................	5.2.3.2
табличное отображение .............................................................	таблица 4
change_request_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.6
change_request_requires_date_time
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.8
change_request_requires_person_organization
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.7
change_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.9
change_requires_date_time
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.10
characterized_definition
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
characterized_product_definition
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
circle
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
classified_item
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
типы ПИМ на языке EXPRESS...................................................	5.2.3.7
closed_shell
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
closed_shell_reversed
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
compatible_dimension
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
component_assembly_position
прикладное утверждение ...........................................................	4.3.10
прикладной объект .....................................................................	4.2.7
табличное отображение .............................................................	таблица 3
component_quantity
атрибут прикладного объекта ....................................................	4.2.12.2, 4.2.25.1
табличное отображение .............................................................	таблицы 3 и 6
composite_curve
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
composite_curve_on_surface
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
composite_curve_segment
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
conditional_reverse
развернутый листинг функций ПИМ на языке EXPRESS .....	приложение A
configuration_design
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
табличное отображение .............................................................	таблица 7
configuration_effectivity
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
configuration_item
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.4.2.43
табличное отображение ............................................................	таблица 7
configuration_item_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.67
configuration_item_requires_person_organization
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.64
conic
развернутый листинг объектов ПИМ на языке EXPRESS .....	приложение A
conical_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
connected_edge_set
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
connected_face_set
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
consequence
атрибут прикладного объекта ....................................................	4.2.6.1
табличное отображение .............................................................	таблица 4
constraints_composite_curve_on_surface
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
constraints_geometry_shell_based_surface_model
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
constraints_geometry_shell_based_wireframe_model
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
constraints_param_b_spline
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
constraints_rectangular_composite_surface
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
context_dependent_measure
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
context_dependent_shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.36
табличное отображение .............................................................	таблица 3
context_dependent_unit
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
contract
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.4.2.21
табличное отображение ............................................................	таблица 11
contract_assignment
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
contract_number
атрибут прикладного объекта ....................................................	4.2.20.1
табличное отображение .............................................................	таблица 11
contract_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.35
contract_requires_person_organization
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.36
contract_type
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS ........................	5.2.4.2.20
contracted_item
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
типы ПИМ на языке EXPRESS...................................................	5.2.3.6
conversion_based_unit
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
coordinated_assembly_and_shape
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.68
coordinated_universal_time_offset
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
count_measure
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
creation_date
атрибут прикладного объекта ....................................................	4.2.8.2
табличное отображение .............................................................	таблица 11
cross_product
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
curve_bounded_surface
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
curve_on_surface
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
curve_replica
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
curve_weights_positive
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
cylindrical_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
date
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.32
атрибут прикладного объекта ....................................................	4.2.4.1
табличное отображение .............................................................	таблицы 2 и 4
date_and_time
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение ..............................................................	таблицы 2, 4, 6 и 11
date_and_time_assignment
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
date_time_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
типы ПИМ на языке EXPRESS...................................................	5.2.3.9
date_time_role
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.26
date_time_select
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
dated_effectivity
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение .............................................................	таблица 6
day_in_month_number
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
day_in_week_number
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
day_in_year_number
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
definitional_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
degenerate_pcurve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
degenerate_toroidal_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
dependent_instantiable_action_directive
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.57
dependent_instantiable_approval_status
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.59
dependent_instantiable_certification_type
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.62
dependent_instantiable_contract_type
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.61
dependent_instantiable_date
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.51
dependent_instantiable_date_time_role
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.55
dependent_instantiable_document_type
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.60
dependent_instantiable_named_unit
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.53
dependent_instantiable_parametric_representation_context
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.72
dependent_instantiable_person_and_organization_role
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.56
dependent_instantiable_representation_item
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.54
dependent_instantiable_security_classification_level
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.58
dependent_instantiable_shape_representation
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.52
derive_dimensional_exponents
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
description
атрибут прикладного объекта ....................................................	4.2.8.3, 4.2.41.1
табличное отображение .............................................................	таблицы 4 и 11
descriptive_measure
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
стадия проектирования (design phase)
определение ................................................................................	3.6.1
design_activity_control
функциональная единица ...........................................................	4.1.4
design_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.2
design_context_for_property
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.3
design_discipline_product_definition
прикладное утверждение ...........................................................	4.3.3 - 4.3.6, 4.3.15, 4.3.17, 4.3.26
прикладной объект ......................................................................	4.2.8
табличное отображение .............................................................	таблицы 2, 11 и 12
design_information
функциональная единица ...........................................................	4.1.5
design_make_from_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.3
табличное отображение .............................................................	таблица 3
design_specification
прикладной объект .....................................................................	4.2.9
табличное отображение .............................................................	таблица 5
dimension_count
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
dimension_of
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
dimensional_exponents
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
dimensions_for_si_unit
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
directed_action
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
direction
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
discipline_id
атрибут прикладного объекта ....................................................	4.2.8.4
табличное отображение .............................................................	таблица 11
document
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение ..............................................................	таблицы 5 и 11
document_reference
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение .............................................................	таблица 5
document_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение .............................................................	таблица 5
document_to_product_definition
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.46
document_type
развернутый листинг объектов ПИМ на языке EXPRESS ......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.27
document_usage_constraint
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение ..............................................................	таблица 5
document_with_class
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
dot_product
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
dummy_gri
развернутый листинг констант ПИМ на языке EXPRESS ......	приложение A
константа ПИМ на языке EXPRESS ..........................................	5.2.2.1
dummy_tri
развернутый листинг констант ПИМ на языке EXPRESS .......	приложение A
константа ПИМ на языке EXPRESS ...........................................	5.2.2.2
edge
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
edge_based_wireframe_model
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
edge_based_wireframe_shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
edge_curve
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
edge_loop
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
edge_reversed
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
effectivity
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
изменения объектов ПИМ на языке EXPRESS ..........................	5.2.4.2.44
функциональная единица ............................................................	4.1.6
effectivity_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.66
element
атрибут прикладного объекта .....................................................	4.2.38.1
табличное отображение ..............................................................	таблица 5
elementary_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
ellipse
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
end_date
атрибут прикладного объекта .....................................................	4.2.22.1
табличное отображение ..............................................................	таблица 6
end_item_identification
функциональная единица ...........................................................	4.1.7
engineering_assembly
прикладное утверждение ............................................................	4.3.5
прикладной объект ......................................................................	4.2.10
табличное отображение ..............................................................	таблицы 3 и 11
engineering_make_from
прикладной объект ......................................................................	4.2.11
табличное отображение ..............................................................	таблица 3
engineering_next_higher_assembly
прикладное утверждение ............................................................	4.3.9
прикладной объект ......................................................................	4.2.12
табличное отображение ..............................................................	таблица 3
engineering_promissory_usage
прикладной объект ......................................................................	4.2.13
табличное отображение .............................................................	таблица 3
evaluated_degenerate_pcurve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
executed_action
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
face
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
face_bound
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
face_bound_reversed
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
face_outer_bound
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
face_reversed
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
face_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
faceted_b_rep
прикладной объект .....................................................................	4.2.14
табличное отображение .............................................................	таблица 8
faceted_boundary_representation
функциональная единица ...........................................................	4.1.8
faceted_brep
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
faceted_brep_shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение .............................................................	таблица 8
first_proj_axis
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
founded_item
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
founded_item_select
развернутый листинг типов ПИМ на языке EXPRESS .............	приложение A
from_effectivity_id
атрибут прикладного объекта .....................................................	4.2.25.2
табличное отображение ..............................................................	таблица 6
functionally_defined_transformation
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
gbsf_check_curve
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
gbsf_check_point
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
gbsf_check_surface
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
geometric_curve_set
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
geometric_model_representation
прикладное утверждение ............................................................	4.3.10, 4.3.27
прикладной объект ......................................................................	4.2.15
табличное отображение ..............................................................	таблица 12
geometric_representation_context
развернутый листинг объектов ПИМ на языке EXPRESS .....	приложение A
geometric_representation_item
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.40
geometric_representation_item_3d
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.71
geometric_set
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
geometric_set_select
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
geometrically_bounded_surface_shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
geometrically_bounded_wireframe_shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
get_basis_surface
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
global_uncertainty_assigned_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
global_unit_assigned_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.29
global_unit_assignment
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.48
hour_in_day
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
hyperbola
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
identifier
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
intersection_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
item_defined_transformation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
item_id
атрибут прикладного объекта .....................................................	4.2.27.1
табличное отображение ..............................................................	таблица 7
item_in_context
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
knot_type
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
label
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
leap_year
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
length_measure
развернутый листинг типов ПИМ на языке EXPRESS ...........	приложение A
length_measure_with_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
length_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
line
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
list_face_loops
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
list_of_reversible_topology_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
list_of_topology_reversed
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
list_to_array
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
list_to_set
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
local_time
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
loop
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
lot_effectivity
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
табличное отображение .............................................................	таблица 6
lot_number
атрибут прикладного объекта ....................................................	4.2.24.1
табличное отображение .............................................................	таблица 6
lot_size
атрибут прикладного объекта ....................................................	4.2.24.2
табличное отображение .............................................................	таблица 6
lot_size_unit_of_measure
атрибут прикладного объекта ....................................................	4.2.24.3
табличное отображение .............................................................	таблица 6
make_array_of_array
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
make_or_buy_code
атрибут прикладного объекта ....................................................	4.2.20.2
табличное отображение .............................................................	таблица 11
manifold_solid_brep
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
manifold_surface_shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
manifold_surface_with_topology
прикладной объект ......................................................................	4.2.16
табличное отображение .............................................................	таблица 9
функциональная единица ..........................................................	4.1.9
manifold_surface_with_topology_representation
табличное отображение ..............................................................	таблица 9
mapped_item
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
табличное отображение ...............................................................	таблица 3
mass_measure
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
mass_measure_with_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
mass_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
material_specification
прикладной объект ......................................................................	4.2.17
табличное отображение .............................................................	таблица 5
measure
табличное отображение .............................................................	таблицы 3 и 6
measure_value
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
measure_with_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.28
механическая деталь (mechanical_part)
определение .................................................................................	3.6.2
mechanical_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.1
minute_in_hour
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
mixed_loop_type_set
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
model_name
атрибут прикладного объекта .....................................................	4.2.28.1
табличное отображение ..............................................................	таблица 7
month_in_year_number
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
msb_shells
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
msf_curve_check
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
msf_surface_check
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
named_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.37
next_assembly_usage_occurrence
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.45
табличное отображение ..............................................................	таблица 3
no_shape_for_make_from
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.76
no_shape_for_supplied_part
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.77
non_topological_surface_and_wireframe
прикладной объект ......................................................................	4.2.18
табличное отображение ..............................................................	таблица 10
функциональная единица ............................................................	4.1.10
normalise
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
offset_curve_3d
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
offset_surface
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
open_shell
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
open_shell_reversed
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
ordered_action
табличное отображение ..............................................................	таблица 4
ordinal_date
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
organization
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
атрибут прикладного объекта .....................................................	4.2.21.2
табличное отображение ..............................................................	таблицы 2 и 13
organization_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
organizational_address
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
organizational_project
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
oriented_closed_shell
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
oriented_edge
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
oriented_face
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
oriented_open_shell
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
oriented_path
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
orthogonal_complement
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
outer_boundary_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
parabola
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
parameter_value
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
parametric_representation_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.41
part
прикладное утверждение ............................................................	4.3.11, 4.3.18, 4.3.23
прикладной объект ......................................................................	4.2.19
табличное отображение ..............................................................	таблицы 7 и 11
part_classification
атрибут прикладного объекта .....................................................	4.2.19.1
табличное отображение ..............................................................	таблица 11
part_identification
функциональная единица ............................................................	4.1.11
part_nomenclature
атрибут прикладного объекта .....................................................	4.2.19.2
табличное отображение ..............................................................	таблица 11
part_number
атрибут прикладного объекта .....................................................	4.2.19.3
табличное отображение ..............................................................	таблица 11
part_type
атрибут прикладного объекта .....................................................	4.2.19.4
табличное отображение ..............................................................	таблица 11
part_version
прикладное утверждение ............................................................	4.3.12, 4.3.19, 4.3.35, 4.3.38
прикладной объект ......................................................................	4.2.20
табличное отображение ..............................................................	таблицы 2, 4 и 11
path
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
path_head_to_tail
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
path_reversed
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
pcurve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
pcurve_or_surface
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
person
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.25
атрибут прикладного объекта .....................................................	4.2.21.3
табличное отображение ..............................................................	таблица 2
person_and_organization
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
person_and_organization_assignment
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
person_and_organization_role
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.24
person_organization
прикладное утверждение ............................................................	4.3.2, 4.3.17 - 4.3.20, 4.3.39
прикладной объект ......................................................................	4.2.21
табличное отображение ..............................................................	таблицы 2 и 4
person_organization_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
типы ПИМ на языке EXPRESS...................................................	5.2.3.8
табличное отображение ..............................................................	таблицы 2, 5 и 13
person_organization_select
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
personal_address
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
phase_of_product
атрибут прикладного объекта .....................................................	4.2.27.2
табличное отображение ..............................................................	таблица 7
placement
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
plane
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
plane_angle_measure
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
plane_angle_measure_with_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
plane_angle_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
planned_date_effectivity
прикладной объект ......................................................................	4.2.22
табличное отображение ..............................................................	таблица 6
planned_effectivity
прикладное утверждение ............................................................	4.3.7, 4.3.24
прикладной объект ......................................................................	4.2.23
табличное отображение ..............................................................	таблицы 3, 6 и 7
planned_lot_effectivity
прикладной объект ......................................................................	4.2.24
табличное отображение ..............................................................	таблица 6
planned_sequence_effectivity
прикладной объект ......................................................................	4.2.25
табличное отображение ..............................................................	таблица 6
point
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
point_on_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
point_on_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
point_replica
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
poly_loop
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
polyline
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
positive_length_measure
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
positive_plane_angle_measure
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
preferred_surface_curve_representation
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
process_specification
прикладной объект ......................................................................	4.2.26
табличное отображение ..............................................................	таблица 5
product
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду п. 5.2.4.2.7, а не 5.2.4.2.27.
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.27
табличное отображение .............................................................	таблицы 11 и 13
product_category
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду п. 5.2.4.2.5, а не 5.2.4.2.25.
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.25
табличное отображение .............................................................	таблица 11
product_category_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
product_concept
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.42
табличное отображение ..............................................................	таблица 7
product_concept_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
product_concept_requires_configuration_item
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.63
product_configuration
прикладное утверждение ............................................................	4.3.22 - 4.3.25
прикладной объект ......................................................................	4.2.27
табличное отображение ..............................................................	таблица 7
product_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.3
product_definition
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.9
табличное отображение .............................................................	таблицы 2 и 11
product_definition_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.4
табличное отображение ..............................................................	таблица 11
product_definition_effectivity
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
product_definition_formation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.8
product_definition_formation_with_specified_source
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
product_definition_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение ..............................................................	таблицы 3 и 11
product_definition_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.26
product_definition_requires_date_time
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.27
product_definition_requires_person_organization
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.25
product_definition_shape
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
product_definition_usage
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.39
product_definition_with_associated_documents
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
product_model
прикладное утверждение ............................................................	4.3.25
прикладной объект ......................................................................	4.2.28
табличное отображение .............................................................	таблица 7
product_related_product_category
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.6
табличное отображение .............................................................	таблица 11
product_requires_person_organization
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.21
product_requires_product_category
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.5
product_requires_version
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.20
product_version
табличное отображение ..............................................................	таблицы 2 и 11
product_version_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.22
product_version_requires_person_organization
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.23
product_version_requires_security_classification
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.24
promissory_usage_occurrence
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение ..............................................................	таблица 3
property_definition
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
property_definition_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
purpose
атрибут прикладного объекта .....................................................	4.2.4.2
табличное отображение ..............................................................	таблица 2
quantified_assembly_component_usage
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
quantity_unit_of_measure
табличное отображение ..............................................................	таблица 6
quasi_uniform_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
quasi_uniform_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
rational_b_spline_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
rational_b_spline_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
reason
атрибут прикладного объекта .....................................................	4.2.41.2
табличное отображение ..............................................................	таблица 4
recommended_solution
атрибут прикладного объекта .....................................................	4.2.6.2
табличное отображение ..............................................................	таблица 4
rectangular_composite_surface
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
rectangular_trimmed_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
reference_designator
атрибут прикладного объекта .....................................................	4.2.12.3
табличное отображение ..............................................................	таблица 3
release_status
атрибут прикладного объекта .....................................................	4.2.20.3
табличное отображение ..............................................................	таблица 11
reparametrised_composite_curve_segment
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
ИС МЕГАНОРМ: примечание. В официальном тексте документа, видимо, допущена опечатка: имеется в виду п. 5.2.4.2.33, а не 5.2.4.2.23.
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.23
representation_context
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.34
representation_item
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.38
representation_map
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
representation_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
representation_relationship_with_transformation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
request_date
атрибут прикладного объекта .....................................................	4.2.41.3
табличное отображение ..............................................................	таблица 4
requested_action
табличное отображение ..............................................................	таблица 4
restrict_action_request_status
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.16
restrict_approval_status
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.34
restrict_certification_type
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.29
restrict_contract_type
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.37
restrict_date_time_role
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.44
restrict_document_type
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.45
restrict_person_organization_role
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.43
restrict_product_category_value
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.4
restrict_security_classification_level
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.42
reversible_topology
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
reversible_topology_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
revision_letter
атрибут прикладного объекта .....................................................	4.2.20.4
табличное отображение ..............................................................	таблица 11
scalar_times_vector
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
обозначение схемы (schema identification)....................................	приложение E
seam_curve
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
second_in_minute
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
second_proj_axis
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
security_classification
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.23
security_classification_assignment
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
security_classification_level
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.22
табличное отображение .............................................................	таблицы 3 и 11
security_classification_optional_date_time
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.41
security_classification_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.38
security_classification_requires_date_time
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.40
security_classification_requires_person_organization
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.39
security_code
атрибут прикладного объекта .....................................................	4.2.10.1, 4.2.20.5
табличное отображение ..............................................................	таблицы 3 и 11
serial_numbered_effectivity
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение ..............................................................	таблица 6
set_of_reversible_topology_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
set_of_topology_reversed
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
shape
прикладное утверждение ............................................................	4.3.26 - 4.3.30
прикладной объект ......................................................................	4.2.29
табличное отображение ..............................................................	таблица 12
функциональная единица ............................................................	4.1.12
shape_aspect
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
прикладное утверждение ............................................................	4.3.28
прикладной объект ......................................................................	4.2.30
табличное отображение ..............................................................	таблица 12
shape_aspect_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
shape_definition
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
shape_definition_representation
табличное отображение ..............................................................	таблица 12
shape_definition_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
табличное отображение ..............................................................	таблица 12
shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
изменения объектов ПИМ на языке EXPRESS .........................	5.2.4.2.35
табличное отображение .............................................................	таблица 12
shape_representation_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
shell
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
shell_based_surface_model
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
shell_based_wireframe_model
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
shell_based_wireframe_shape_representation
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
shell_reversed
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
si_prefix
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
si_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
si_unit_name
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
трехмерная модель (solid model)
определение .................................................................................	3.6.3
solid_angle_measure
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
solid_angle_measure_with_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
solid_angle_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
solid_model
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
source
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
source_control
функциональная единица ............................................................	4.1.13
specification
прикладное утверждение ............................................................	4.3.1, 4.3.30
прикладной объект ......................................................................	4.2.31
табличное отображение .............................................................	таблицы 5 и 12
specification_code
атрибут прикладного объекта .....................................................	4.2.31.1
табличное отображение ..............................................................	таблица 5
specification_source
атрибут прикладного объекта .....................................................	4.2.31.2
табличное отображение ..............................................................	таблица 5
specification_usage_constraint
табличное отображение ..............................................................	таблица 5
specified_higher_usage_occurrence
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
specified_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
типы ПИМ на языке EXPRESS....................................................	5.2.3.10
табличное отображение ..............................................................	таблицы 11 и 12
spherical_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
standard_part_indicator
атрибут прикладного объекта .....................................................	4.2.19.5
табличное отображение ..............................................................	таблица 11
start_date
табличное отображение ..............................................................	таблица 6
start_order
прикладной объект ......................................................................	4.2.32
табличное отображение ..............................................................	таблица 4
start_request
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS .................................................	5.2.4.1.6
прикладной объект ......................................................................	4.2.33
табличное отображение ..............................................................	таблица 4
start_request_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
типы ПИМ на языке EXPRESS....................................................	5.2.3.3
табличное отображение ..............................................................	таблица 4
start_request_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.11
start_request_requires_date_time
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.13
start_request_requires_person_organization
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.12
start_work
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.8
табличное отображение .............................................................	таблица 4
start_work_requires_approval
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.14
start_work_requires_date_time
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.15
status
атрибут прикладного объекта .....................................................	4.2.4.3, 4.2.41.4
табличное отображение ..............................................................	таблицы 2 и 4
подузел (sub-assembly)
определение .................................................................................	3.6.4
substitute_part
прикладное утверждение ............................................................	4.3.8, 4.3.13
прикладной объект ......................................................................	4.2.34
табличное отображение ..............................................................	таблицы 3 и 11
subtype_mandatory_action
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.49
subtype_mandatory_effectivity
развернутый листинг правил ПИМ на языке EXPRESS .........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.65
subtype_mandatory_product_context
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.2
subtype_mandatory_product_definition_formation
развернутый листинг правил ПИМ на языке EXPRESS ...........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.50
subtype_mandatory_product_definition_usage
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.69
subtype_mandatory_representation
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.74
subtype_mandatory_representation_context
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.75
subtype_mandatory_shape_representation
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS .............................................	5.2.5.73
supplied_part
прикладное утверждение ............................................................	4.3.13, 4.3.32
прикладной объект ......................................................................	4.2.34
табличное отображение ..............................................................	таблицы 11, 12 и 13
supplied_part_relationship
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
объект ПИМ на языке EXPRESS ................................................	5.2.4.1.4
табличное отображение .............................................................	таблица 11
supplier
прикладное утверждение ...........................................................	4.3.20, 4.3.33
прикладной объект ......................................................................	4.2.36
табличное отображение ..............................................................	таблицы 2 и 13
supplier_id
табличное отображение ..............................................................	таблица 13
supplier_part_number
атрибут прикладного объекта .....................................................	4.2.35.2
табличное отображение ..............................................................	таблица 13
supported_item
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
surface
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
surface_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
surface_finish_specification
прикладной объект ......................................................................	4.2.37
табличное отображение ..............................................................	таблица 5
surface_model
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
surface_of_linear_extrusion
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
surface_of_revolution
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
surface_patch
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
surface_replica
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
surface_weights_positive
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
swept_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
text
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
thru_effectivity_id
атрибут прикладного объекта .....................................................	4.2.25.4
табличное отображение ..............................................................	таблица 6
topological_representation_item
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
topology_reversed
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
toroidal_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
transformation
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
атрибут прикладного объекта .....................................................	4.2.7.1
табличное отображение ..............................................................	таблица 3
transition_code
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
trimmed_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
trimming_preference
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
trimming_select
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
uncertainty_measure_with_unit
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
uniform_curve
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
uniform_surface
развернутый листинг объектов ПИМ на языке EXPRESS .......	приложение A
unique_version_change_order
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
функция ПИМ на языке EXPRESS...............................................	5.2.6.1
unique_version_change_order_rule
развернутый листинг правил ПИМ на языке EXPRESS ..........	приложение A
правила ПИМ на языке EXPRESS ..............................................	5.2.5.19
unit
развернутый листинг типов ПИМ на языке EXPRESS ............	приложение A
unit_of_measure
атрибут прикладного объекта .....................................................	4.2.12.4
табличное отображение ..............................................................	таблица 3
usage_constraint
прикладное утверждение ............................................................	4.3.31
прикладной объект ......................................................................	4.2.38
табличное отображение ..............................................................	таблица 5
using_items
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
using_representations
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
valid_calendar_date
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
valid_geometrically_bounded_wf_curve
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
valid_geometrically_bounded_wf_point
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
valid_measure_value
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
valid_time
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
valid_units
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
valid_wireframe_edge_curve
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
valid_wireframe_vertex_point
развернутый листинг функций ПИМ на языке EXPRESS .......	приложение A
value
атрибут прикладного объекта .....................................................	4.2.38.2
табличное отображение ..............................................................	таблица 5
vector
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
vector_difference
развернутый листинг функций ПИМ на языке EXPRESS ........	приложение A
vector_or_direction
развернутый листинг типов ПИМ на языке EXPRESS .............	приложение A
version
атрибут прикладного объекта .....................................................	4.2.6.3
табличное отображение ..............................................................	таблица 4
versioned_action_request
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
изменения объектов ПИМ на языке EXPRESS ..........................	5.2.4.2.11
versioned_action_request_requires_solution
развернутый листинг правил ПИМ на языке EXPRESS ...........	приложение A
правила ПИМ на языке EXPRESS ...............................................	5.2.5.18
versioned_action_request_requires_status
развернутый листинг правил ПИМ на языке EXPRESS ...........	приложение A
правила ПИМ на языке EXPRESS ...............................................	5.2.5.17
vertex
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
vertex_loop
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
vertex_point
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
vertex_shell
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
volume_measure
развернутый листинг типов ПИМ на языке EXPRESS .............	приложение A
volume_measure_with_unit
развернутый листинг объектов ПИМ на языке EXPRESS ........	приложение A
volume_unit
